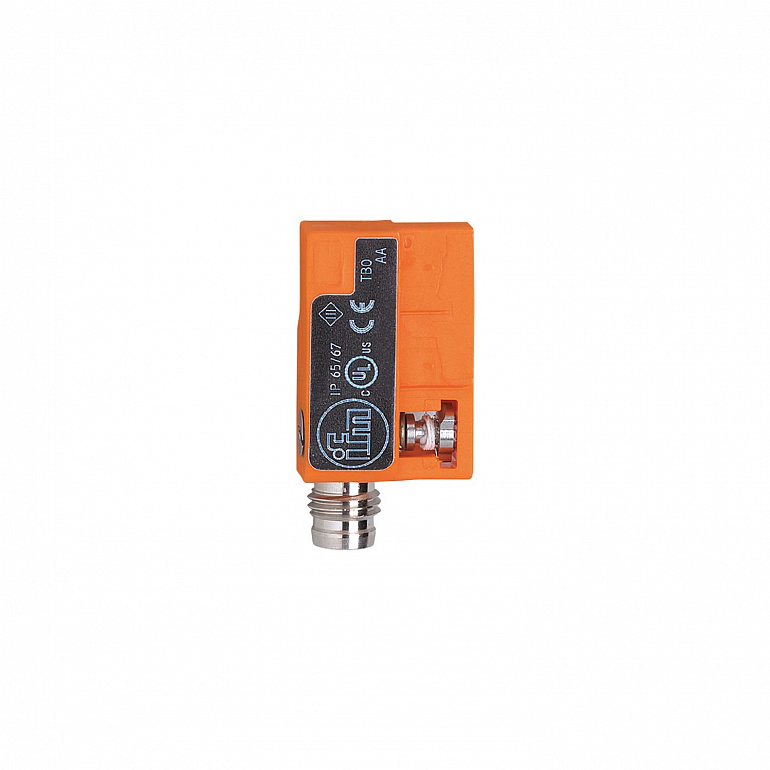

| Electrical design |
PNP |
| Output function |
normally open |
| Dimensions |
27.5 x 18 x 15.5 |
| Operating voltage |
5...50 AC / 5...60 DC; (cULus supply class 2: 5...30 AC / 5...60 DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC |
2.5 |
| Max. voltage drop switching output AC |
2.5 |
| Permanent current rating of switching output AC |
350 |
| Permanent current rating of switching output DC |
500 |
| Switching frequency AC |
1000 |
| Switching frequency DC |
1000 |
| Max. switching power |
10 |
| Short-circuit protection |
no |
| Short-circuit proof |
no |
| Overload protection |
no |
| Magnetic sensitivity |
2.1 |
| Travel speed |
10 |
| Hysteresis |
1 |
| Repeatability |
< 0.2 |
| Max. fall time |
0.1 |
| Max. make time incl. bounce |
0.6 |
| Ambient temperature |
-25...70 |
| Protection |
IP 65; IP 67 |
| EMC |
| EN 61000-4-2 ESD | - CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm | | EN 61000-4-6 HF conducted | 10 V | | EN 55011 | class B |
|
| MTTF |
17837 |
| Weight |
12.4 |
| Mounting |
non-flush mountable |
| Type of mounting |
fixing element with combined head slot / hexagon socket AF 1.5 |
| Cylinder type |
T-slot cylinders |
| Dimensions |
27.5 x 18 x 15.5 |
| Material |
housing: PA; fixing element: stainless steel / brass |
| Switching cycles when connected to PLC |
< 40 |
| Display |
| Switching status | 1 x LED, yellow |
|
| Required protection |
miniature fuse to IEC60127-2 sheet 1; ≤ 0,175 A; fast acting |
| Items supplied |
|
| Remarks |
| Recommendation: check the unit for reliable function after a short circuit. | | cULus - Class 2 source required |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M8; coding: A; Locking: snap-fit |
