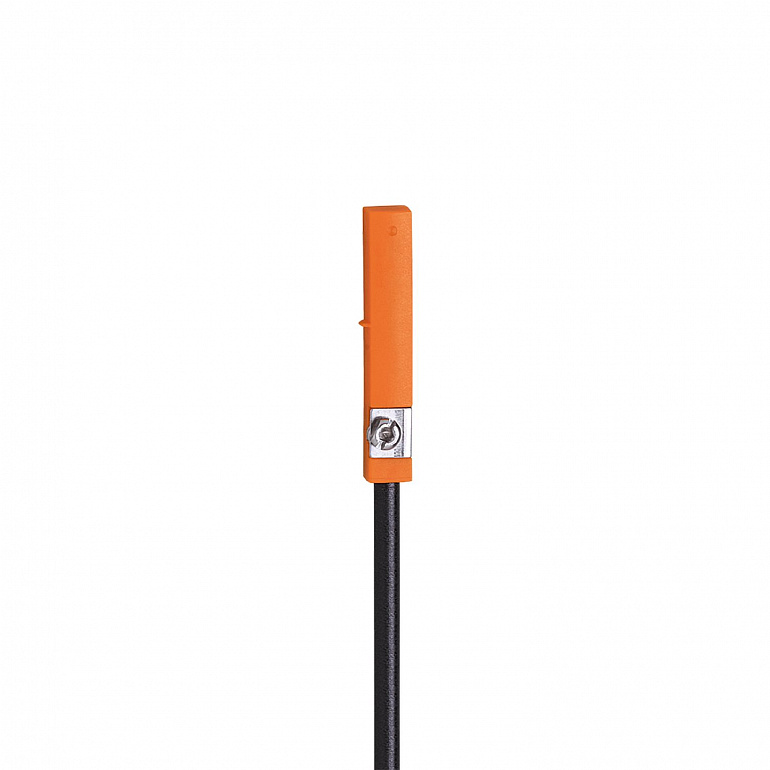

| Electrical design |
PNP/NPN |
| Output function |
normally open |
| Dimensions |
30.5 x 5 x 6.5 |
| Operating voltage |
5...120 AC/DC; (UL supply class 2: 5...60 DC / 5...30 AC) |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Electrical design |
PNP/NPN |
| Output function |
normally open |
| Max. voltage drop switching output DC |
5 |
| Max. voltage drop switching output AC |
5 |
| Permanent current rating of switching output AC |
100; (External protective circuit for inductive load (valve, contactor, etc.) necessary.) |
| Permanent current rating of switching output DC |
100; (External protective circuit for inductive load (valve, contactor, etc.) necessary.) |
| Switching frequency AC |
1000 |
| Switching frequency DC |
1000 |
| Max. switching power |
10 |
| Short-circuit protection |
no |
| Short-circuit proof |
no |
| Overload protection |
no |
| Magnetic sensitivity |
2.1 |
| Travel speed |
10 |
| Hysteresis |
1 |
| Repeatability |
-0.2...0.2 |
| Max. fall time |
0.1 |
| Max. make time incl. bounce |
0.6 |
| Ambient temperature |
-25...70 |
| Protection |
IP 65; IP 67 |
| EMC |
| EN 61000-4-2 ESD | - CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-5 Surge | 2 kV line to line, Ri: 2 Ohm | | EN 61000-4-6 HF conducted | 10 V | | EN 55011 | class B |
|
| MTTF |
11303 |
| UL approval |
|
| Weight |
67.2 |
| Mounting |
flush mountable |
| Cylinder type |
T-slot cylinders |
| Dimensions |
30.5 x 5 x 6.5 |
| Material |
housing: PA; Fastening clamp: stainless steel |
| Switching cycles when connected to PLC |
< 40 |
| Display |
| Switching status | 1 x LED, yellow |
|
| Connection |
Cable: 6 m, PUR; 2 x 0.14 mm² |
| Items supplied |
| rubber memory stop: 1 | | cable clip: 1 |
|
| Remarks |
| No LED function in case of polarity reversal in DC operation. | | UL - Class 2 source required |
|
| Pack quantity |
1 pcs. |
