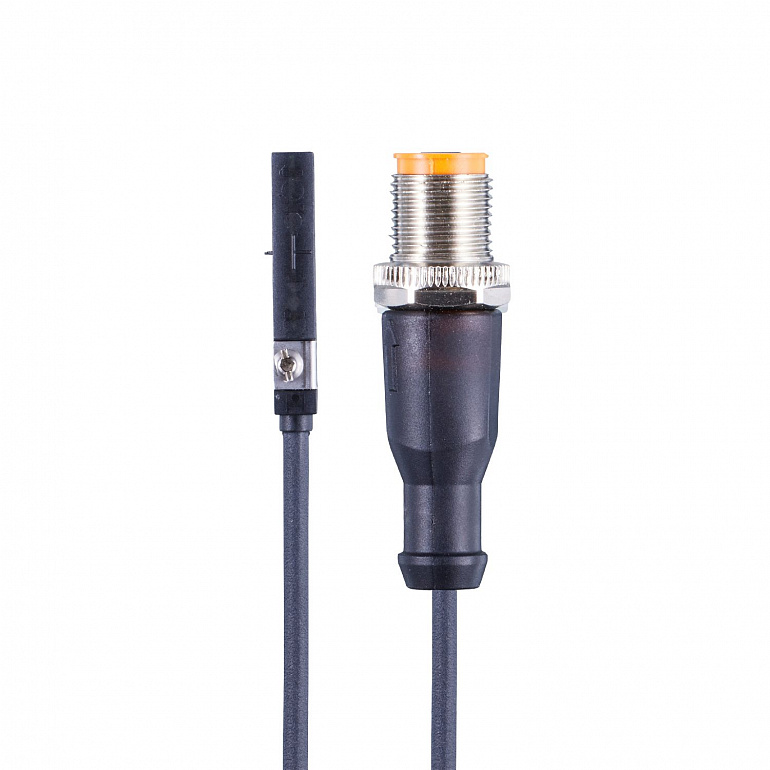

| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Communication interface |
IO-Link |
| Principle of operation |
Hall sensor; (3D function) |
| Operating voltage |
10...30 DC; (cULus - Class 2 source required) |
| Current consumption |
< 20 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
300 |
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Output signal |
switching signal; IO-Link |
| Electrical design |
PNP/NPN; (configurable) |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Max. leakage current |
0.5 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
200 |
| Type of short-circuit protection |
yes (non-latching) |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Measuring range |
50; (depending on the application) |
| Min. field strength |
1 |
| Hysteresis |
1.25; (configurable) |
| Repeatability |
< 0.2 |
| Linearity error IO-Link |
< 5 |
| Resolution |
0,01; (depending on the application) |
| Parameter setting options |
Switch points; Counter function; Diagnostic function |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1.3 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
| Smart Sensor - SSP 4.1.1 | Measuring and Switching Sensor, 1 channel | | Common - I&D | Identification and Diagnosis | | Extension | Object detection, switches when value falls below the setpoint | | Function | Locator | | Function | ProductURI |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
5 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1613 |
|
| Ambient temperature |
-25...85 |
| Protection |
IP 65; IP 67 |
| EMC |
| EN 61000-4-2 | - CD / 8 kV AD | | EN 61000-4-3 | 10 V/m | | EN 61000-4-4 | 2 kV | | EN 61000-4-6 | 10 V | | EN 55011 | class B |
|
| Impact resistance |
|
| Vibration resistance |
| EN 60068-2-6 Fc | 20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| MTTF |
1088 |
| UL approval |
| Ta | -25...75 °C | | Enclosure type | Type 1 | | voltage supply | Class 2 | | UL approval number | C020 | | File number UL | E174191 |
|
| Weight |
21.9 |
| Mounting |
flush mountable |
| Type of mounting |
fixing element with combined head slot / hexagon socket AF 1.5 |
| Cylinder type |
T-slot cylinders |
| Material |
housing: PA; Fastening clamp: stainless steel |
| Display |
| Switching status | 2 x LED, yellow SSC1.1 SSC1.2 | | Power | 1x LED, green |
|
| Items supplied |
| cable clip: 1x | | rubber memory stop: 1x |
|
| Pack quantity |
1 pcs. |

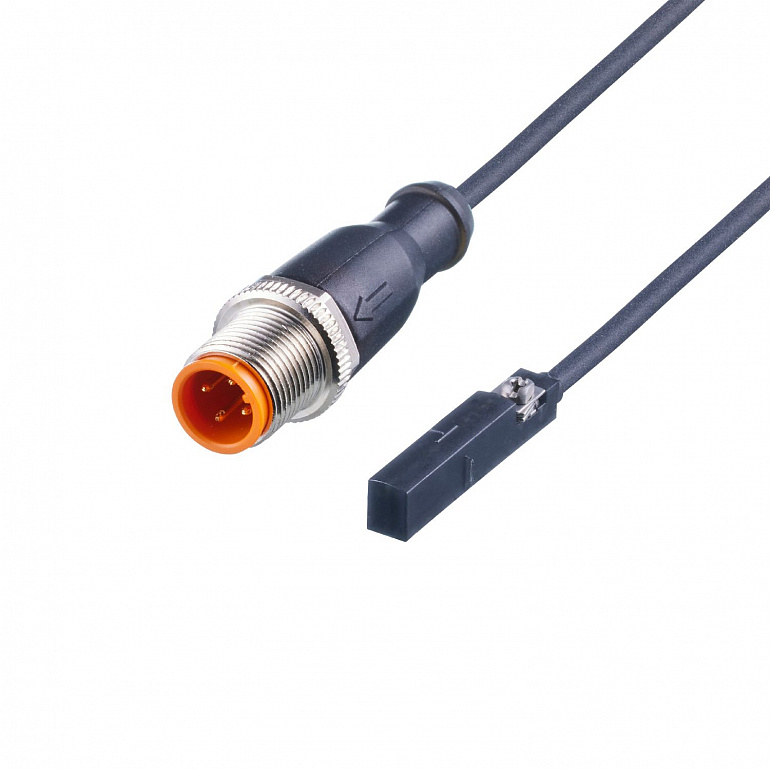

| Connection |
Connector: 1 x M12; coding: A |
