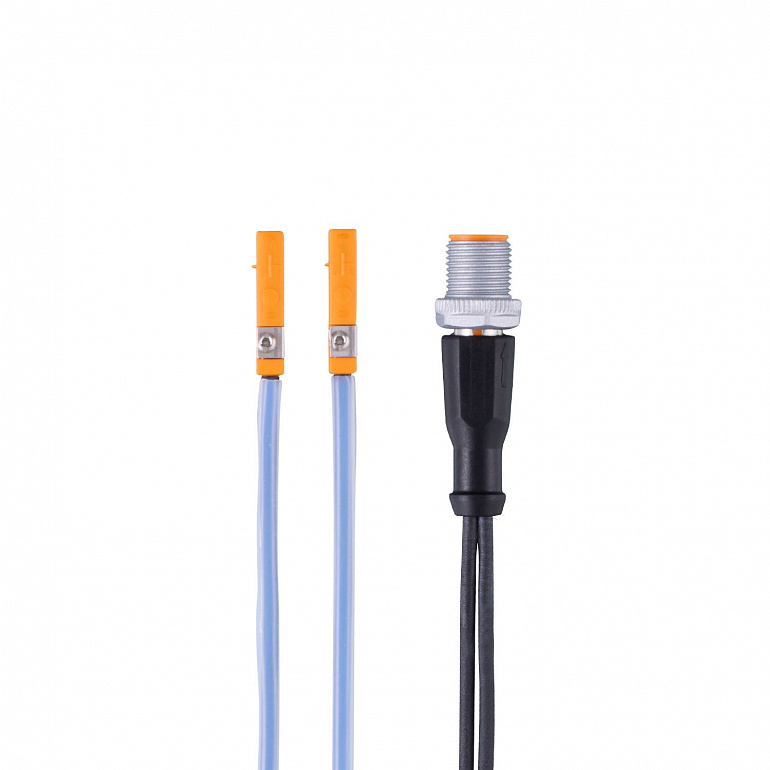

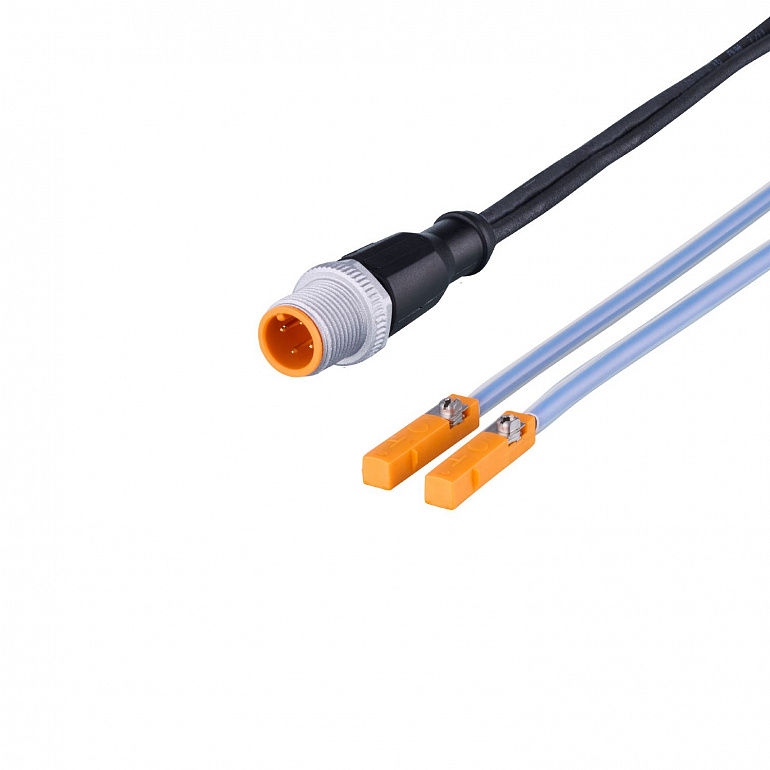

| Electrical design |
PNP |
| Output function |
normally open |
| Dimensions |
25.3 x 5 x 6.5 |
| System |
Magnetic-field immune |
| Principle of operation |
suppression of extraneous fields |
| Application |
welding applications |
| Magnetic-field immune |
yes |
| Max. electromagnetic field immunity |
200 |
| Operating voltage |
10...30 DC |
| Current consumption |
< 10 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
300 |
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
9 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Magnetic sensitivity |
1.5 |
| Travel speed |
< 0.25 |
| Hysteresis |
< 1.5 |
| Repeatability |
< 0.2 |
| Ambient temperature |
-25...85 |
| Protection |
IP 65; IP 67 |
| EMC |
| EN 61000-4-2 ESD | - CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V | | EN 55011 | class B |
|
| Vibration resistance |
| EN 60068-2-6 Fc | (10...55 Hz) / 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz |
|
| Shock resistance |
| EN 60068-2-27 Ea | 30 g 6 shocks / 11 ms half-sine (x, y, z) |
|
| Weight |
30.4 |
| Mounting |
flush mountable |
| Type of mounting |
fastening clamp with combined slot / hexagon socket, width across flats 1.5 |
| Cylinder type |
T-slot cylinders |
| Dimensions |
25.3 x 5 x 6.5 |
| Material |
housing: PA; Fastening clamp: stainless steel; Knurled nut: PTFE coated; protective tube: PTFE coated |
| Display |
| Switching status | 1 x LED, yellow |
|
| Items supplied |
| rubber memory stop: 1 | | cable clip: 1 |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Locking: Knurled nut, rotatable |
