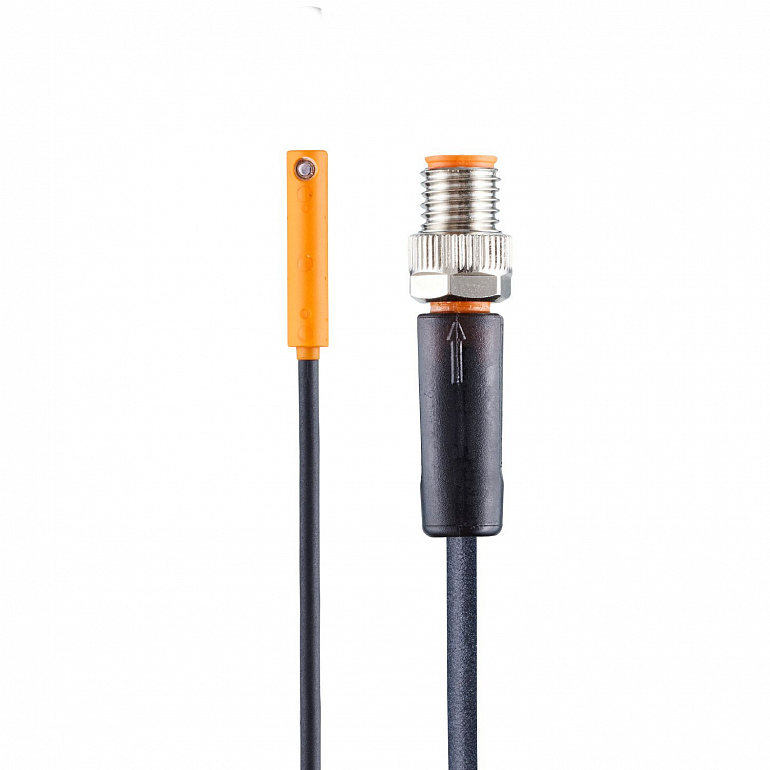

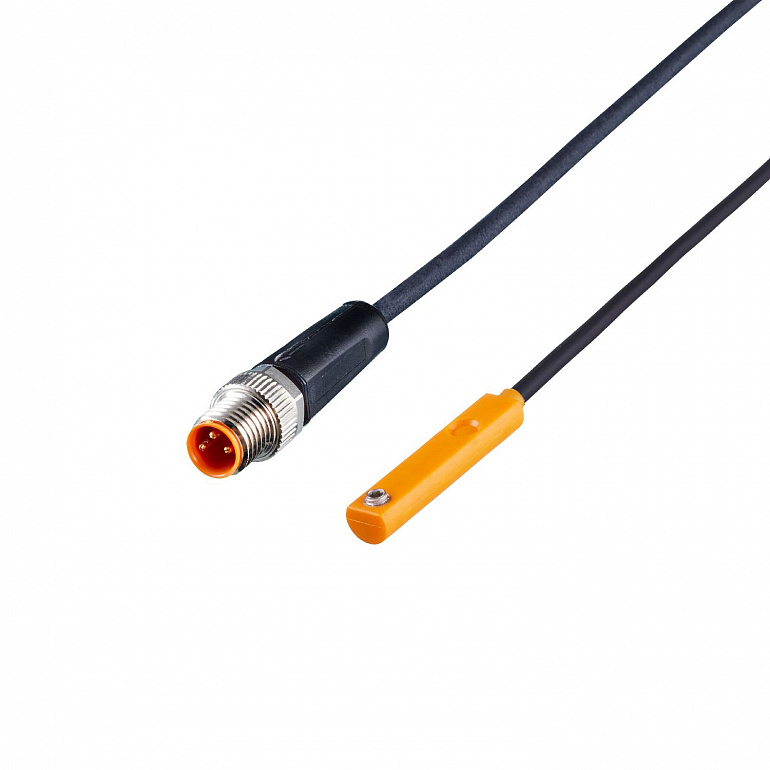

| Electrical design |
PNP |
| Output function |
normally open |
| Dimensions |
26.1 x 2.8 x 5.5 |
| Operating voltage |
10...30 DC |
| Current consumption |
< 10 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 0.05 |
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
> 1000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Magnetic sensitivity |
2.8 |
| Hysteresis |
0.5...1.5 |
| Repeatability |
< 0.1 |
| Ambient temperature |
-25...80 |
| Protection |
IP 65; IP 67 |
| EMC |
| EN 61000-4-2 | - CD / 8 kV AD | | EN 61000-4-3 | 10 V/m | | EN 61000-4-4 | 2 kV | | EN 61000-4-6 | 10 V | | EN 55011 | class B |
|
| Vibration resistance |
| DIN EN 60068-2-64 | 10 g / (20...2000 Hz) 100 Minuten, in 3 Achsen |
|
| Shock resistance |
| DIN IEC 68-2-27 | 30 g 11 ms Halbsinus; je 1000 Schocks in jede Richtung der 3 Koordinatenachsen |
|
| MTTF |
3523 |
| UL approval |
| Ta | -25...55 °C | | Enclosure type | Type 1 | | voltage supply | Class 2 | | UL approval number | C013 | | File number UL | E174191 |
|
| Weight |
14.6 |
| Mounting |
flush mountable |
| Cylinder type |
C-slot cylinders |
| Dimensions |
26.1 x 2.8 x 5.5 |
| Material |
housing: PA reinforced glass-fiber; threaded sleeve: brass; set screw: stainless steel |
| Display |
| Switching status | 1 x LED, yellow |
|
| Pack quantity |
1 pcs. |
