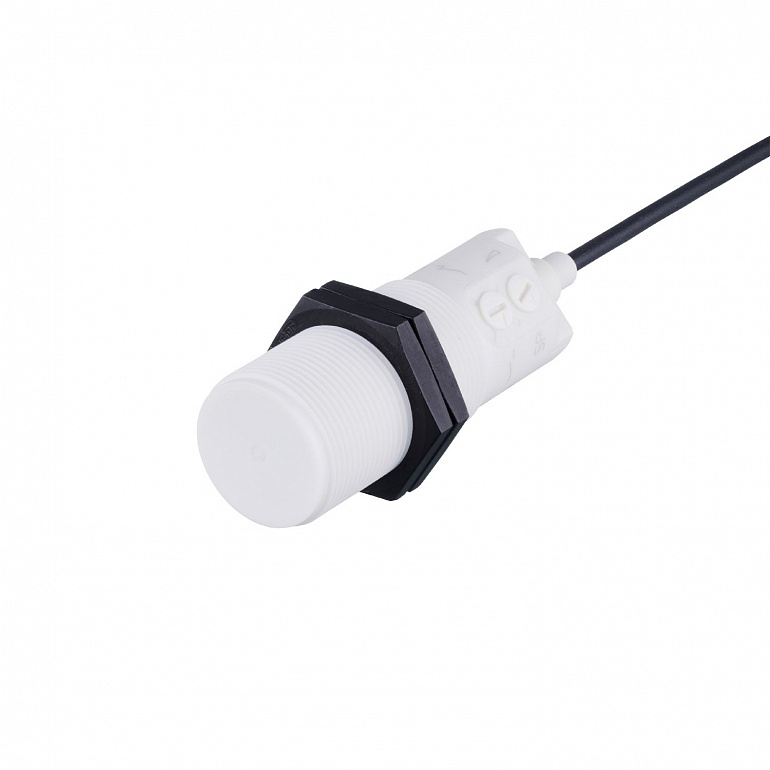

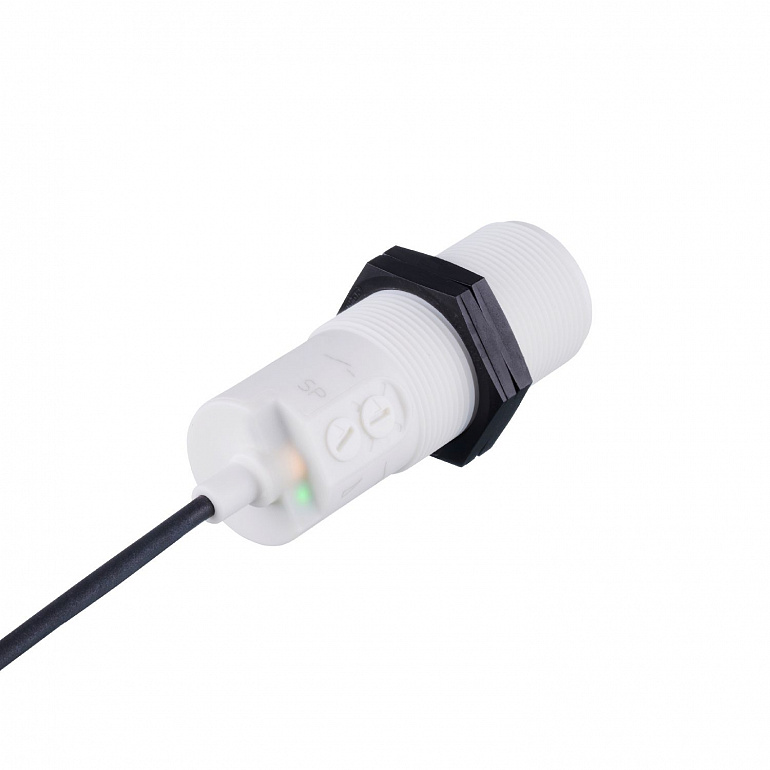

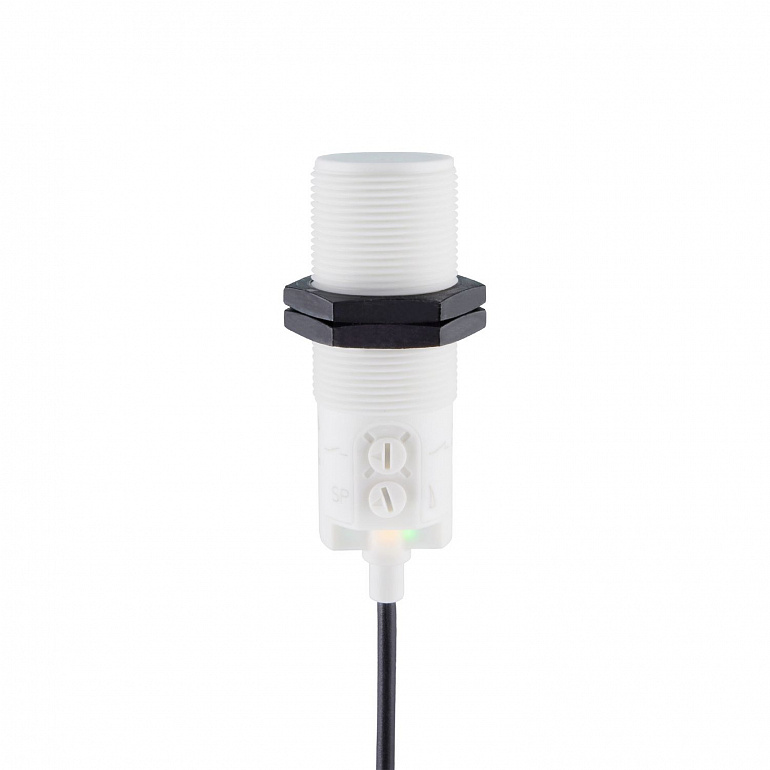

| Electrical design |
PNP |
| Output function |
normally open / closed; (selectable) |
| Sensing range |
0.5...40 |
| Communication interface |
IO-Link |
| Housing |
Threaded type |
| Dimensions |
M30 x 1.5 / L = 92 |
| System |
optical setting aid |
| Operating voltage |
10...30 DC |
| Current consumption |
< 22 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Electrical design |
PNP |
| Output function |
normally open / closed; (selectable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
200 |
| Switching frequency DC |
30 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Sensing range |
0.5...40 |
| Sensing range adjustable |
yes |
| Factory setting sensing range |
25 |
| Real sensing range Sr |
25 ± 10 % |
| Hysteresis |
1...15 |
| Switch-point drift |
-10...10 |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Multiple switching signal | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
20 |
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; normally open / normally closed (configurable); PNP / NPN (parametrierbar); Switch point setting; Hysteresis |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 689 |
|
| Ambient temperature |
-25...80 |
| Protection |
IP 65; IP 67 |
| EMC |
| EN 61000-4-2 | 30 kV AD / 4 kV CD | | EN 61000-4-3 | 10 V/m | | EN 61000-4-4 | 2 kV | | EN 61000-4-6 | 10 V | | EN 55011 | class B |
|
| Vibration resistance |
| DIN EN 60947-5-2 | 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz |
|
| Shock resistance |
| DIN EN 60947-5-2 | 30 g 6 shocks / 11 ms half-sine (x, y, z) |
|
| UL approval |
| Ta | -25...60 °C | | Enclosure type | Type 1 | | voltage supply | Limited Voltage/Current | | UL approval number | D002 | | File number UL | E174191 |
|
| Weight |
278.4 |
| Housing |
Threaded type |
| Mounting |
non-flush mountable |
| Dimensions |
M30 x 1.5 / L = 92 |
| Thread designation |
M30 x 1.5 |
| Material |
Housing: PP; potentiometer: PP |
| Display |
| Switching status | 1 x LED, yellow | | Power | 1 x LED, green | | Setting aid | 12 x LED, green |
|
| Optical setting aid |
yes |
| Items supplied |
|
| Pack quantity |
1 pcs. |
| Connection |
Cable: 10 m, PUR, Ø 4 mm; 3 x 0.34 mm² |
