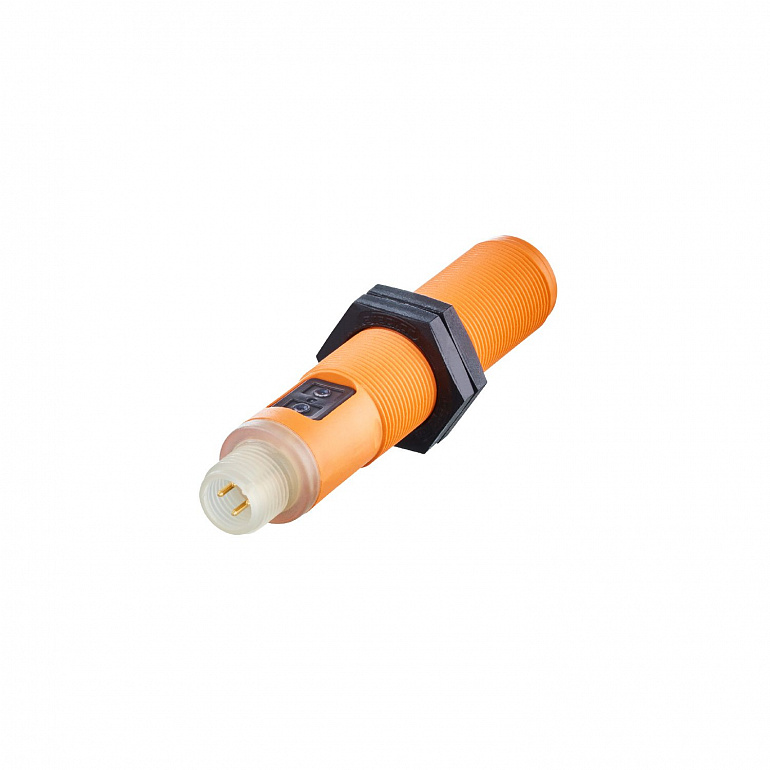

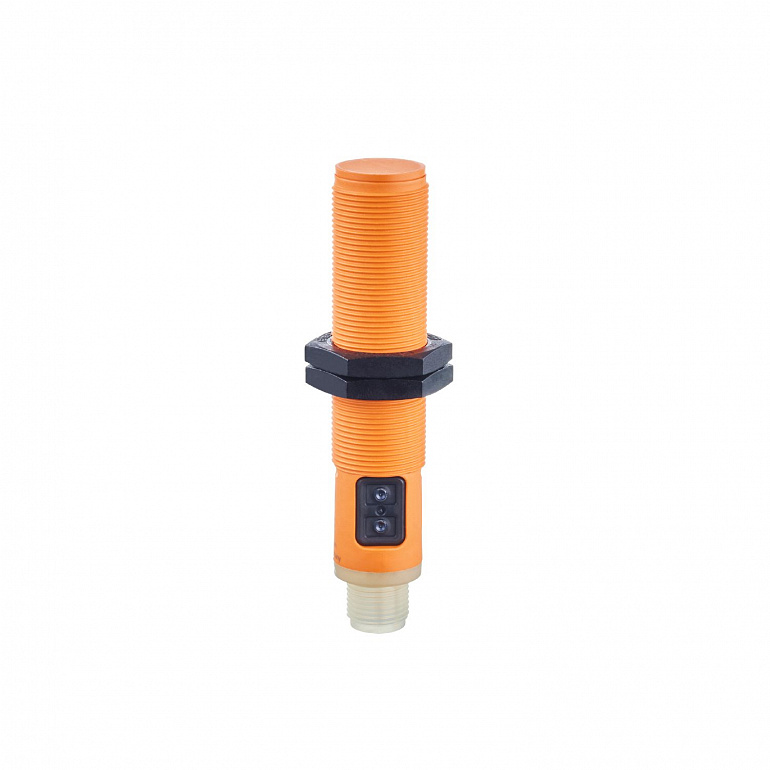

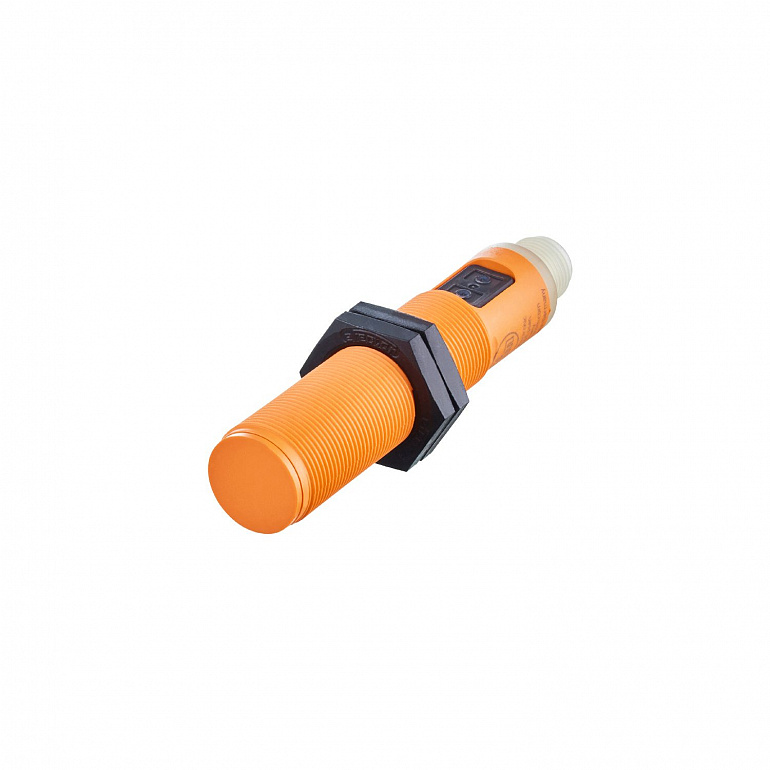

| Electrical design |
PNP/NPN; (Automatic load detection PNP/NPN:; when using a resistive load < 20 kΩ) |
| Output function |
normally open / closed; (selectable) |
| Sensing range |
12 |
| Communication interface |
IO-Link |
| Housing |
Threaded type |
| Dimensions |
M18 x 1 / L = 87 |
| Operating voltage |
10...36 DC |
| Current consumption |
< 20 |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Measuring principle |
capacitive |
| Electrical design |
PNP/NPN; (Automatic load detection PNP/NPN:; when using a resistive load < 20 kΩ) |
| Output function |
normally open / closed; (selectable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
200 |
| Switching frequency DC |
10 |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Sensing range |
12 |
| Hysteresis |
1...15 |
| Switch-point drift |
-20...20 |
| Communication interface |
IO-Link |
| Transmission type |
COM1 (4,8 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Multiple switching signal | | Function | Process data variable | | Function | Teach channel |
|
| SIO mode |
yes |
| Min. process cycle time |
100.8 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 387 |
|
| Ambient temperature |
-25...80 |
| Note on ambient temperature |
| temperature of the sensing face: -25...110 °C |
|
| Protection |
IP 65; IP 67 |
| EMC |
| EN 61000-4-2 ESD | 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 3 V | | EN 55011 | class B |
|
| Vibration resistance |
| EN 60068-2-6 Fc | (10...55 Hz) / 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz |
|
| Shock resistance |
| EN 60068-2-27 Ea | 30 g 6 shocks / 11 ms half-sine (x, y, z) |
|
| MTTF |
566 |
| Weight |
31.5 |
| Housing |
Threaded type |
| Mounting |
non-flush mountable |
| Dimensions |
M18 x 1 / L = 87 |
| Thread designation |
M18 x 1 |
| Material |
housing: PBT; Pushbuttons: TPE-U; LED window: PC |
| Display |
| Switching status | 1 x LED, yellow |
|
| Teach function |
yes |
| Electronic lock |
yes |
| Items supplied |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: A |
