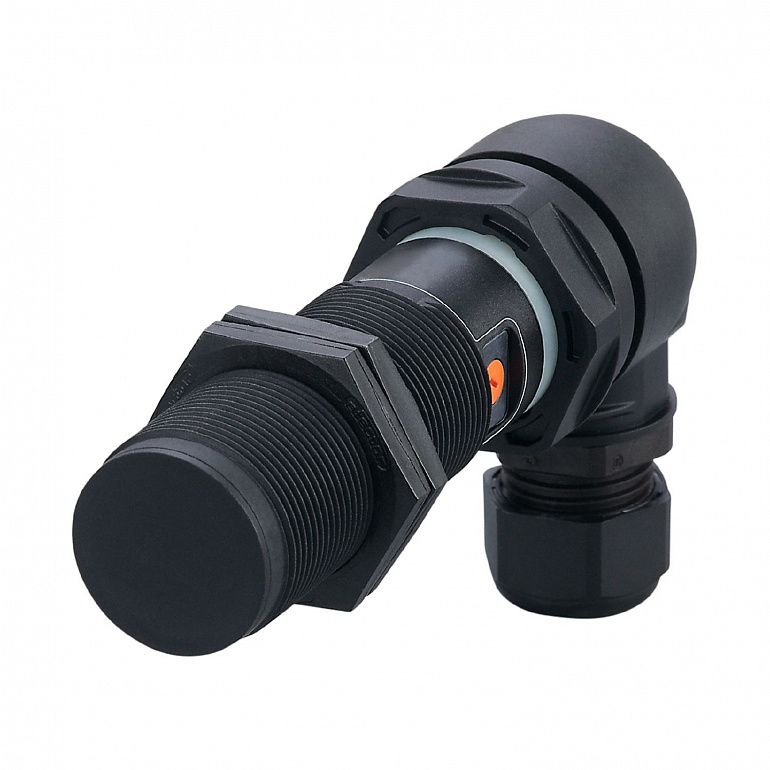

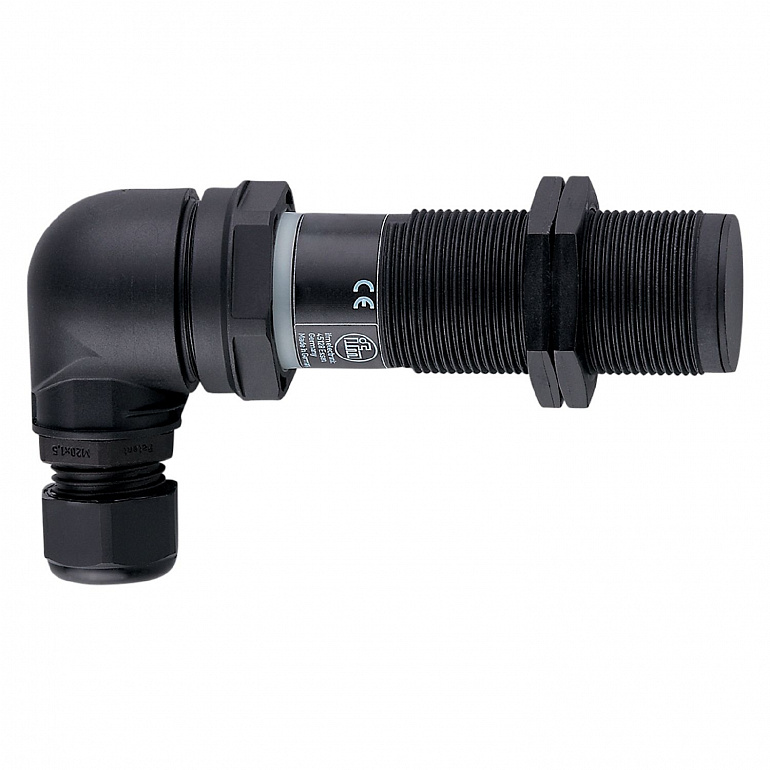

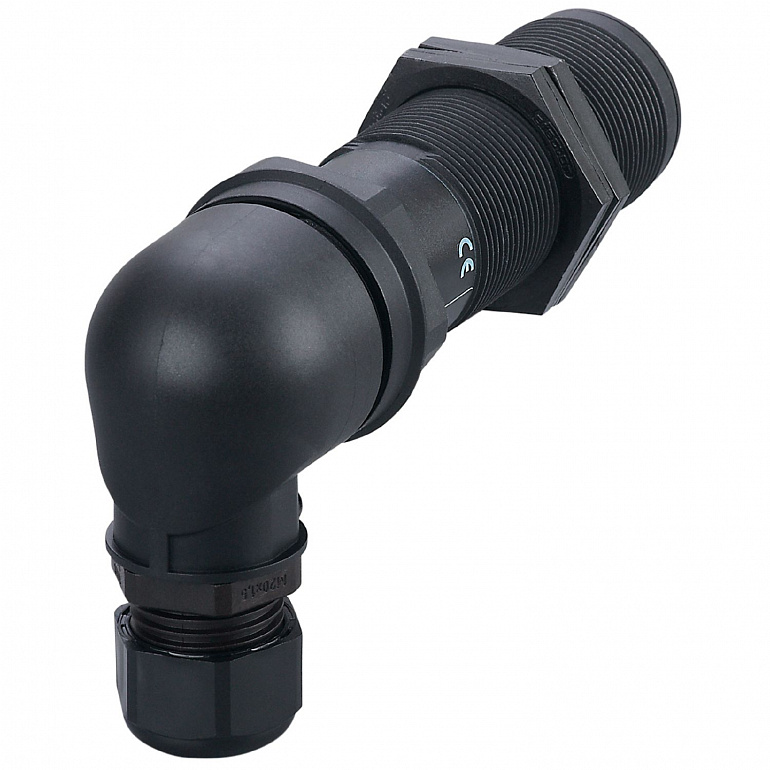

| Product characteristics |
|
| Electrical design |
PNP |
| Output function |
complementary |
| Sensing range |
3...26 |
| Communication interface |
IO-Link |
| Housing |
Threaded type |
| Dimensions |
M30 x 1.5 / L = 125 |
| Electrical data |
|
| Operating voltage |
10...30 DC |
| Rated insulation voltage |
60 |
| Current consumption |
< 22 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
300 |
| Measuring principle |
capacitive |
| Outputs |
|
| Electrical design |
PNP |
| Output function |
complementary |
| Max. voltage drop switching output DC |
2.5 |
| Max. leakage current |
0.1 |
| Permanent current rating of switching output DC |
200 |
| Short-time current rating of switching output |
200 |
| Switching frequency DC |
10 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Monitoring range |
|
| Sensing range |
3...26 |
| Sensing range adjustable |
yes |
| Real sensing range Sr |
15 ± 10 % |
| Accuracy / deviations |
|
| Hysteresis |
1...15 |
| Switch-point drift |
-20...20 |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Multiple switching signal</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><t |
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
20 |
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; PNP / NPN (parametrierbar); Switch point setting; Hysteresis |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>1286</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-20...60 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
|
| ATEX marking |
II 3D Ex tc IIIC T90°C Dc |
| EMC |
<table><tr><td>EN 61000-4-2 ESD</td><td>kV / 8 kV AD</td></tr><tr><td>EN 61000-4-3 HF radiated</td><td>3 V/m (80...2000 MHz)</td></tr><tr><td>EN 61000-4-4 Burst</td><td>2 kV</td></tr><tr><td>EN 61000-4-6 HF conducted</td><td>3 V 0,15...80 MHz</td></tr><tr |
| Vibration resistance |
<table><tr><td>EN 60068-2-6 Fc</td><td>10...55 Hz 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz</td></tr></table> |
| Shock resistance |
<table><tr><td>EN 60068-2-27 Ea</td><td>30 g 6 shocks / 11 ms half-sine (x, y, z)</td></tr></table> |
| MTTF |
623 |
| Mechanical data |
|
| Weight |
151.8 |
| Housing |
Threaded type |
| Mounting |
non-flush mountable |
| Dimensions |
M30 x 1.5 / L = 125 |
| Thread designation |
M30 x 1.5 |
| Material |
housing: PA; potentiometer: LCP; PBT |
| Displays / operating elements |
|
| Display |
<table><tr><td>Switching status</td><td>1 x LED, yellow</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>lock nuts: 2</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
terminals: 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5 |
