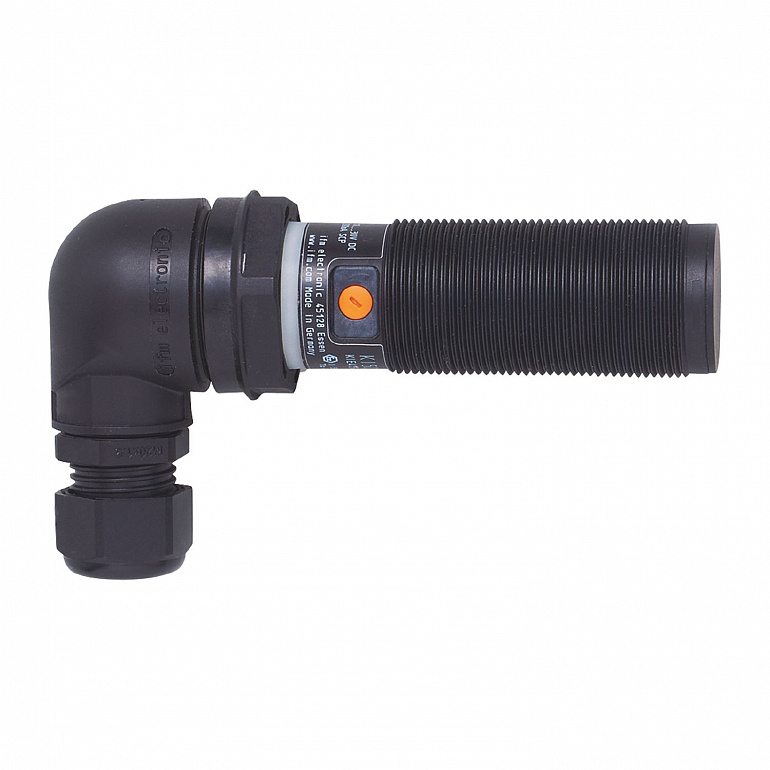

| Product characteristics |
|
| Electrical design |
PNP |
| Output function |
complementary |
| Sensing range |
15 |
| Housing |
Threaded type |
| Dimensions |
M30 x 1.5 / L = 125 |
| Electrical data |
|
| Operating voltage |
10...30 DC |
| Current consumption |
< 20 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Measuring principle |
capacitive |
| Outputs |
|
| Electrical design |
PNP |
| Output function |
complementary |
| Max. voltage drop switching output DC |
2.5 |
| Max. leakage current |
0.1 |
| Permanent current rating of switching output DC |
200 |
| Switching frequency DC |
10 |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Monitoring range |
|
| Sensing range |
15 |
| Sensing range adjustable |
yes |
| Factory setting sensing range |
15 |
| Real sensing range Sr |
15 ± 10 % |
| Accuracy / deviations |
|
| Hysteresis |
1...15 |
| Switch-point drift |
-20...20 |
| Operating conditions |
|
| Ambient temperature |
-20...60 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
|
| ATEX marking |
II 3D Ex tc IIIC T90°C Dc |
| EMC |
<table><tr><td>EN 61000-4-2 ESD</td><td>kV / 8 kV AD</td></tr><tr><td>EN 61000-4-3 HF radiated</td><td>3 V/m</td></tr><tr><td>EN 61000-4-4 Burst</td><td>2 kV</td></tr><tr><td>EN 61000-4-6 HF conducted</td><td>3 V</td></tr><tr><td>EN 55011</td><td>class B< |
| MTTF |
463 |
| Mechanical data |
|
| Weight |
155 |
| Housing |
Threaded type |
| Mounting |
non-flush mountable |
| Dimensions |
M30 x 1.5 / L = 125 |
| Thread designation |
M30 x 1.5 |
| Material |
PBT; PA |
| Displays / operating elements |
|
| Display |
<table><tr><td>Switching status</td><td>1 x LED, yellow</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>lock nuts: 2</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
terminals: 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5 |
