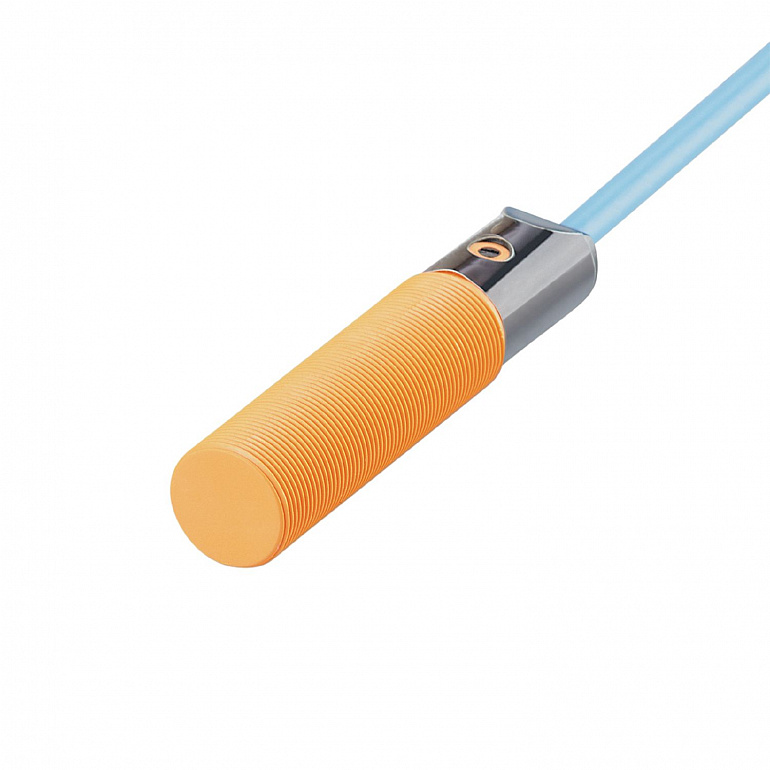

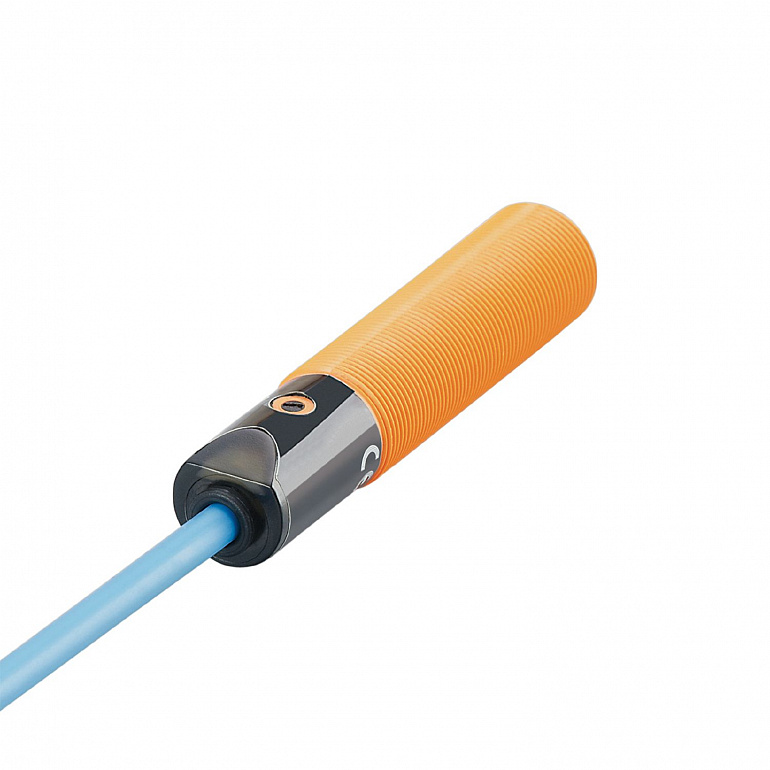

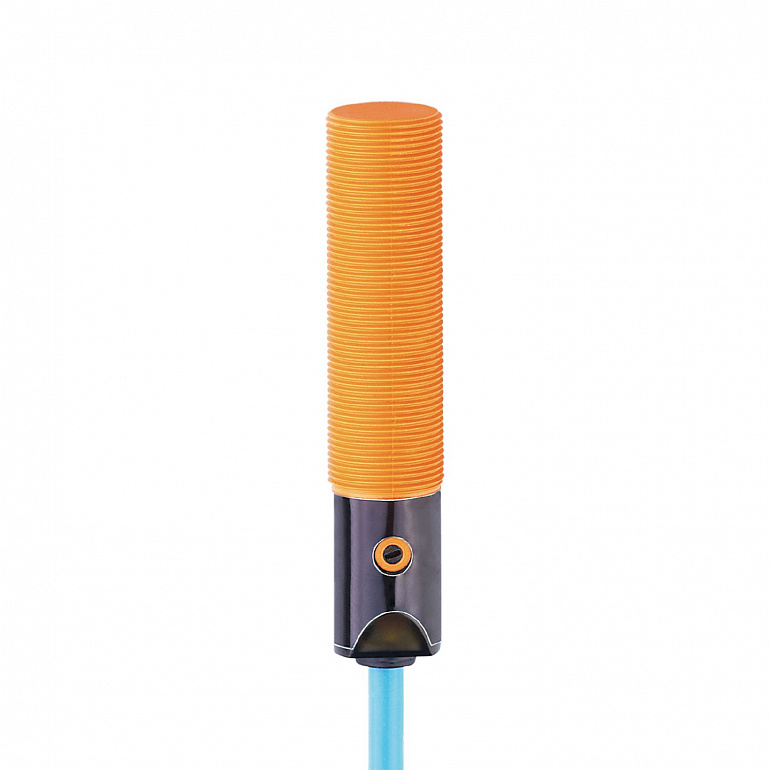

| Electrical design |
NAMUR |
| Output function |
normally closed |
| Sensing range |
8 |
| Housing |
Threaded type |
| Dimensions |
M18 x 1 / L = 84 |
| Connection at circuit amplifier |
yes |
| Switching amplifiers |
connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC |
8.2; (1kΩ) |
| Supply voltage DC |
7.5...15 |
| Current consumption |
< 1; (disabled; conductive: > 2,2) |
| Protection class |
II |
| Electrical design |
NAMUR |
| Output function |
normally closed |
| Switching frequency DC |
4 |
| Sensing range |
8 |
| Sensing range adjustable |
yes |
| Factory setting sensing range |
8 |
| Real sensing range Sr |
8 ± 10 % |
| Correction factor |
glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
| Hysteresis |
1...15 |
| Switch-point drift |
-15...15 |
| Ambient temperature |
-20...60 |
| Protection |
IP 67 |
| Approval |
BVS 13 ATEX E009 X; IECEx BVS 13.0015 X |
| ATEX marking |
II 1G Ex ia IIB T4 Ga |
|
II 1D Ex ia IIIC T135°C Da |
| EMC |
| EN 61000-4-2 ESD | - kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 3 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 3 V | | EN 55011 emission | class B |
|
| Shock resistance |
|
| MTTF |
503 |
| Max. internal capacitance |
11.5 |
| Max. internal inductance |
3 |
| Weight |
320 |
| Housing |
Threaded type |
| Mounting |
non-flush mountable |
| Dimensions |
M18 x 1 / L = 84 |
| Thread designation |
M18 x 1 |
| Material |
PBT |
| Display |
| Switching status | 1 x LED, yellow |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |
| Connection |
Cable: 6 m, PVC; 2 x 0.5 mm² |
