| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Communication interface |
IO-Link |
| Housing |
Threaded type |
| Dimensions |
M22 x 1 / L = 40.4 |
| Principle of operation |
dynamic; static; Bistable; combination; (configurable) |
| Operating voltage |
8...32 DC |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Current consumption |
| < 7,2 mA; (LED off: Ub = 24 V) | | < 125 mA; (LED white, max. brightness: Ub = 8 V) | | < 79 mA; (LED white, max. brightness: Ub = 12 V) | | < 43 mA; (LED white, max. brightness: Ub = 24 V) | | < 35 mA; (LED white, max. brightness : Ub = 32 V) |
|
| Total number of inputs |
2 |
| Switching level high |
> 19.2; (at 24 V safely on : Voltage >= Ub*0,8) |
| Switching level low |
< 4.8; (at 24V safely off : Voltage <= Ub*0,2) |
| Inputs |
| according to the standard IEC 61131-2 (Typ 3) |
|
| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
1.5 |
| Permanent current rating of switching output DC |
200 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Response time |
64 |
| Parameter setting options |
normally open / closed; PNP/NPN; static; dynamic; Bistable; combination; Switch-on and switch-off delay; brightness; sensitivity; Operating conditions |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1.3 |
| Profiles |
| Smart Sensor - SSP 1.1 | Fixed Switching Sensor | | Common - I&D | Identification and Diagnosis | | Extension | Sensor Control Wide | | Function | Locator | | Function | ProductURI |
|
| Min. process cycle time |
13.2 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1559 |
|
| Ambient temperature |
-30...65 |
| Protection |
IP 65; IP 67; (IP 69K on the front) |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m / 3 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V | | IEC 61000-6-3, EN 55011 | (Class B) | | IEC 61000-4-5 Surge | 1 kV (L+ to L- , 42 Ω, 0,5 µF) / 0,5 kV (all cables to L- , 42 Ω, 0,5 µF) | | |
|
| Vibration resistance |
| EN 60068-2-6 Fc | 20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea | 50 g 11 ms half-sine; 20 shocks each in every direction of the 3 coordinate axes |
|
| Continuous shock resistance |
| EN 60068-2-29 Eb | 40 g 6 ms half-sine; 8000 shocks each in every direction of the 3 coordinate axes |
|
| MTTF |
218 |
| Weight |
58.1 |
| Housing |
Threaded type |
| Dimensions |
M22 x 1 / L = 40.4 |
| Thread designation |
M22 x 1 |
| Material |
housing: stainless steel; lock nut: PBT; Symbol disc: PA; Gasket: NR |
| Display |
| Power | LED, RGB configurable |
|

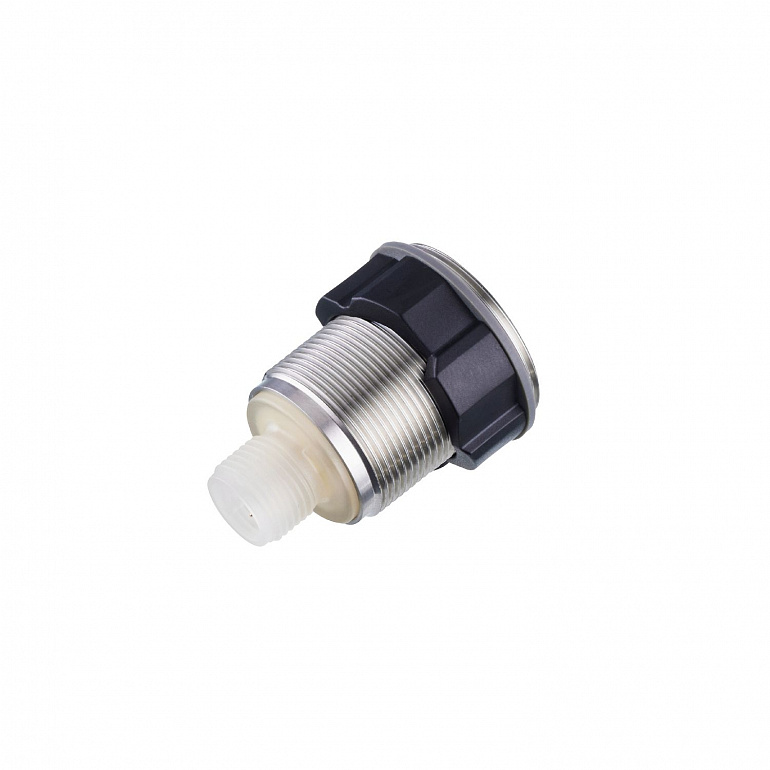

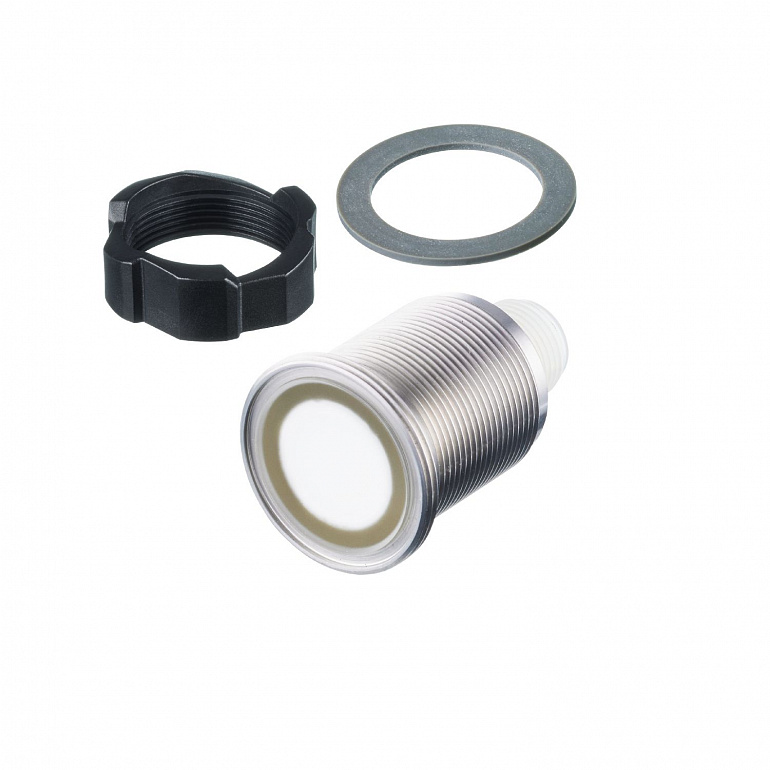

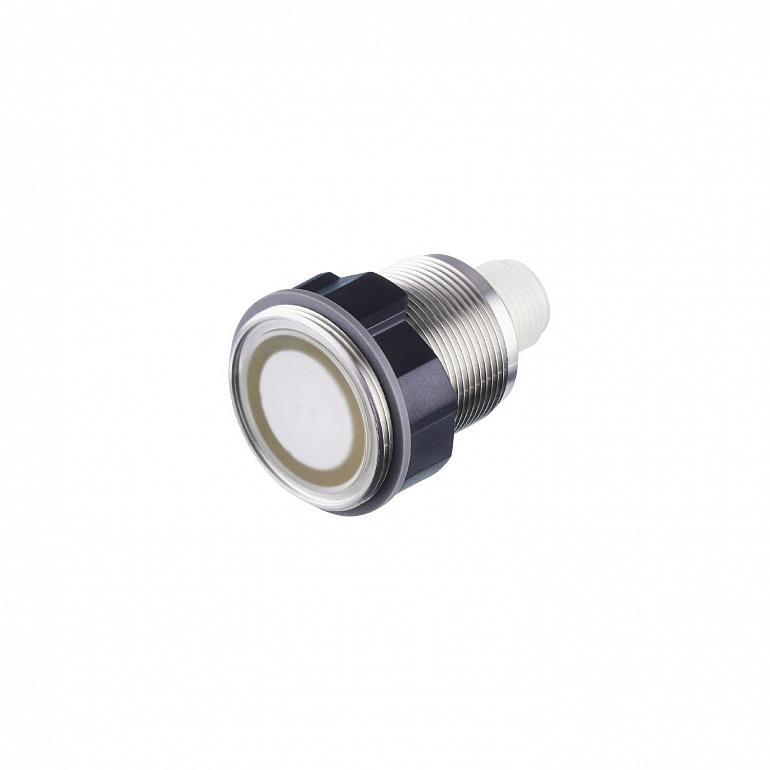

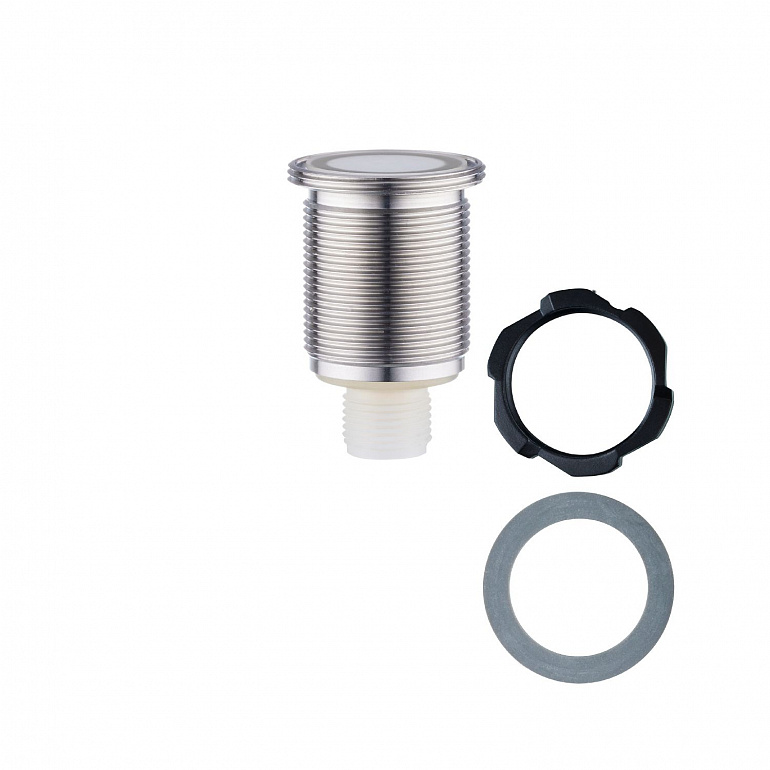

| Items supplied |
| lock nuts: 1 x M22 | | transparent symbol disc: 1 | | symbol sticker: 1 | | Gasket: 1 | | O-ring: 1 |
|
| Accessories (optional) |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
