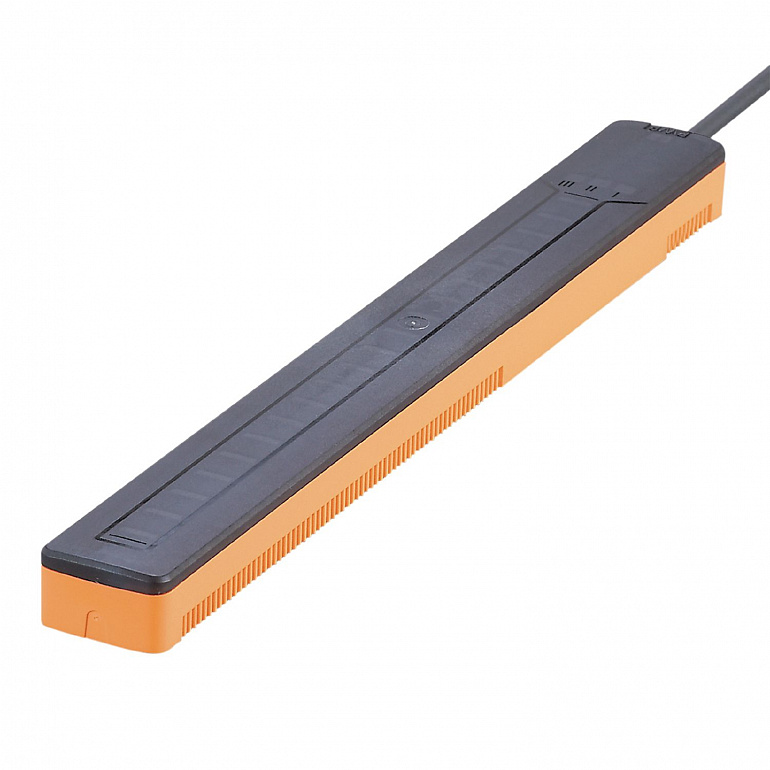

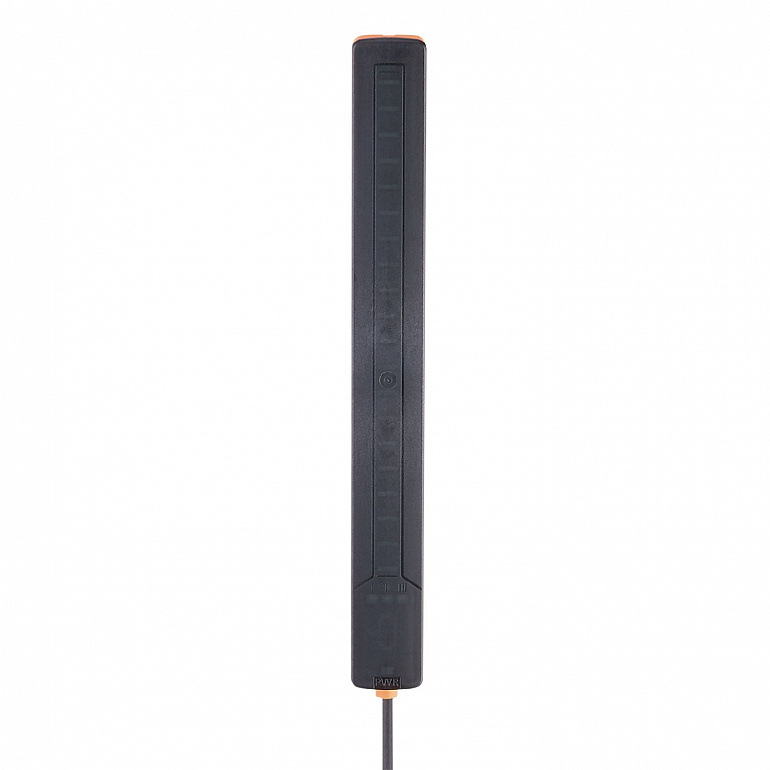

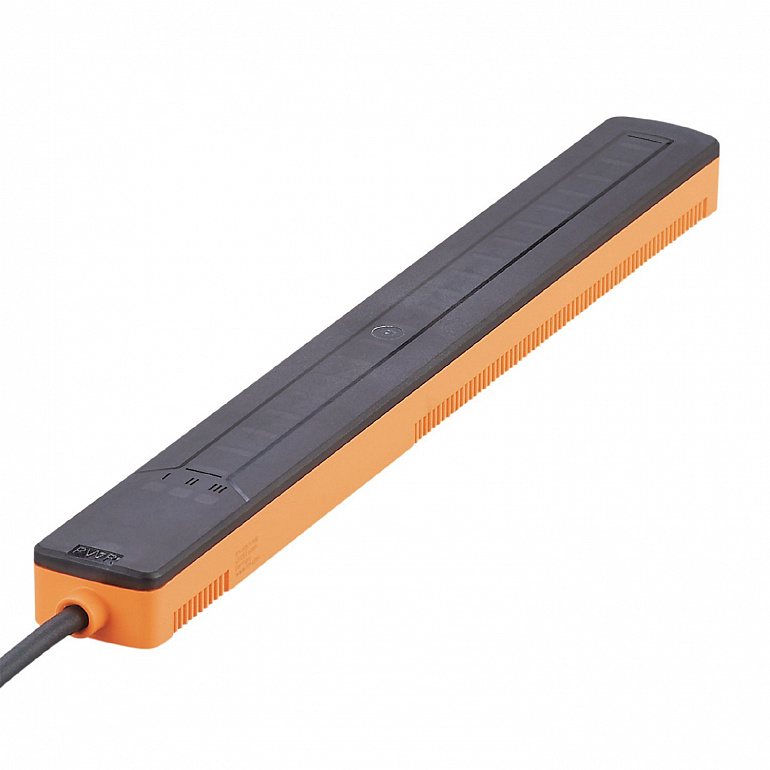

| Electrical design |
PNP/NPN; (configurable) |
| Communication interface |
IO-Link |
| Housing |
rectangular |
| Dimensions |
255 x 28 x 16.7 |
| Application |
Continuous level measurement behind non-metallic and non-conductive surfaces |
| Media |
dry bulk material; aqueous solutions; oils |
| Cannot be used for |
very adhesive media |
| Operating voltage |
10...30 DC; (IO-Link: 18...30 DC) |
| Current consumption |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
1300 |
| Measuring principle |
capacitive |
| Number of inputs and outputs |
Number of digital outputs: 3 |
| Electrical design |
PNP/NPN; (configurable) |
| Number of digital outputs |
3 |
| Permanent current rating of switching output DC |
200 |
| Max. resistance switching output |
8 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring range |
< 200 |
| Detection range |
228 |
| Set point SP |
5...95 |
| Reset point rP |
4...94 |
| In steps of |
1 |
| Repeatability |
2 |
| Offset deviation |
4 |
| Resolution |
1 |
| Linearity deviation |
1 |
| Response time |
1300 |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 3.1 | Measuring Sensor | | Common - I&D | Identification and Diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
1 |
| Process data binary |
3 |
| Min. process cycle time |
7.2 |
| IO-Link process data (cyclical) |
| Function | bit length |
|---|
| process value | 16 | | exponent | 8 | | device status | 4 | | binary switching information | 3 |
|
| IO-Link functions (acyclical) |
direction of installation; limitation of sensor elements; Sensitivity; minimum recognition threshold; Performance in case of a fault; error delay; Damping; LED mode; switch-on cycle counter; operating hours counter; switching cycles counter; min./max. process value; internal temperature; min./max. internal temperature; diagnostic data level |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 924 |
|
| Note |
| For further information please see the IODD PDF file at "Downloads" |
|
| Applications |
DIN EN 60654-1 application class B2 |
| Ambient temperature |
-20...80 |
| Storage temperature |
-25...85 |
| Protection |
IP 65 |
| EMC |
| DIN EN 61000-6-4 30 - 230 MHz | 40 dBµV/m QP / 10 m distance | | 230 - 1 GHz | 47 dBµV/m QP / 10 m distance | | DIN EN 61000-4-2 | ± 25 kV AD / ± 25 kV CD | | DIN EN 61000-4-3 | 80 MHz - / 1 GHz 10 V/m | | DIN EN 61000-4-4 | ± 2.5 kV / 5 kHz | | ± 2.5 kV / 100 kHz | | DIN EN 61000-4-6 | 10 V |
|
| Shock resistance |
|
| Vibration resistance |
| EN 60068-2-6 | 5 g (10...2000 Hz) |
|
| MTTF |
290.43 |
| UL approval |
| Ta | -25...60 °C | | Enclosure type | Type 1 | | voltage supply | Limited Voltage/Current | | UL approval number | D005 | | File number UL | E174191 |
|
| Weight |
432 |
| Housing |
rectangular |
| Dimensions |
255 x 28 x 16.7 |
| Material |
PBT; PC; |
| Display |
| Power | 1 x LED, green | | Switching status | 3 x LED, yellow | | Function | 20 x LED, green |
|
| Items supplied |
| adhesive tape: 1 x (1,2 x 23 x 240 mm) |
|
| Accessories (optional) |
| Mounting adapter: 2, E12675 | | Mounting adapter: 2, E12676 | | Fixing strap: 5, E10880 | | adhesive tape: 10, E12677 |
|
| Remarks |
| When used on IO-Link class B masters, switching outputs OUT2, OUT3 must be turned off |
|
| Pack quantity |
1 pcs. |
| Connection |
Cable: 2 m, PUR; 5 x 0.34 mm² |
