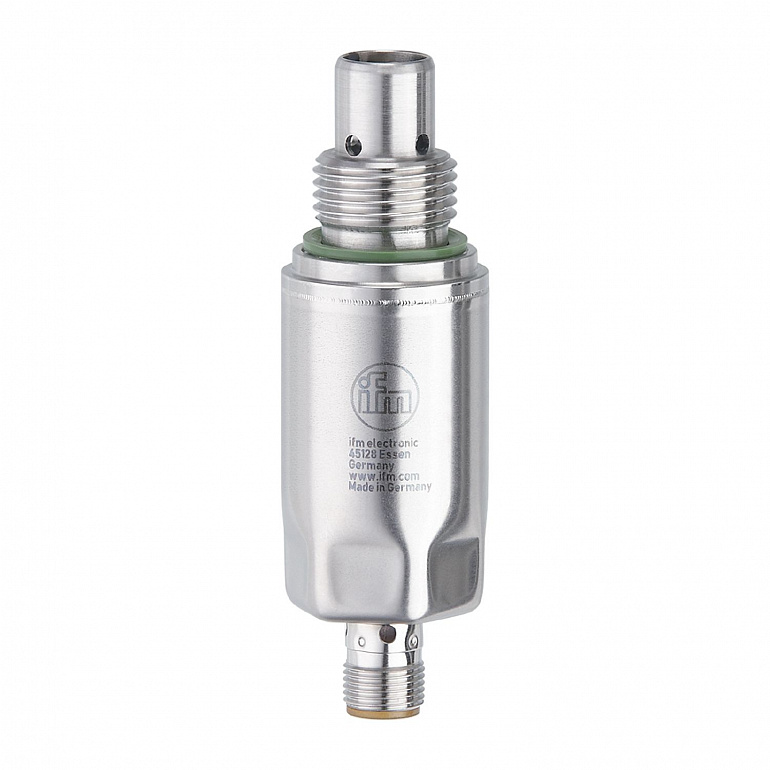

| Product characteristics |
|
| Number of inputs and outputs |
Number of digital outputs: 1 |

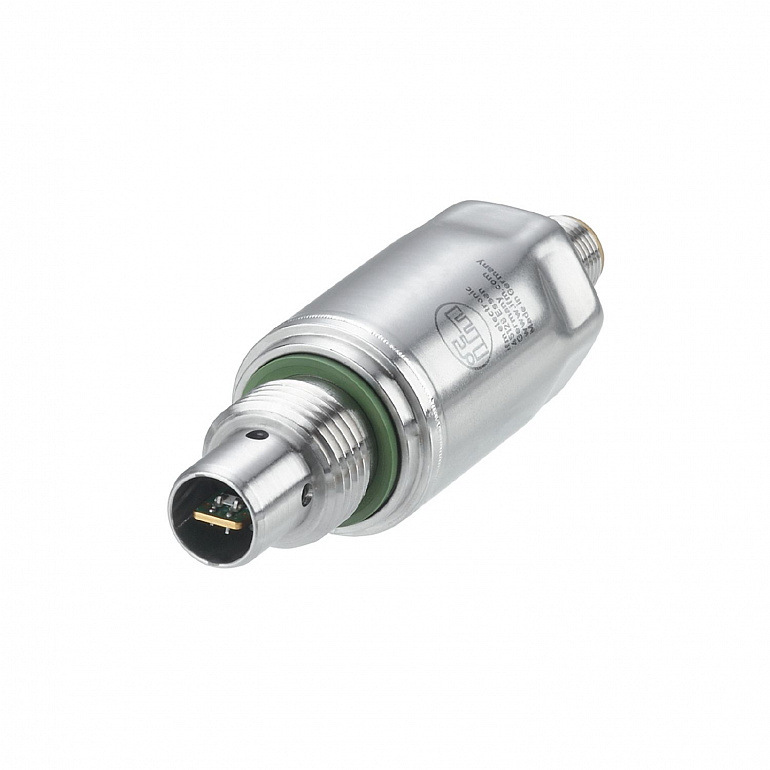

| Process connection |
threaded connection G 1/2 |
| Application |
|
| System |
gold-plated contacts |
| Media |
mineral oils; synthetic esters; biodegradable oils |
| Cannot be used for |
See operating instructions, chapter "Intended use". |
| Medium temperature |
-40...120 |
| Pressure rating |
<table><tr><td>50 bar</td><td>5 MPa</td></tr></table> |
| Vacuum resistance |
-1000 |
| Electrical data |
|
| Operating voltage |
18...30 DC |
| Current consumption |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
2 |
| Max. current load total |
0.065 |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 1 |
| Outputs |
|
| Total number of outputs |
1 |
| Output signal |
IO-Link |
| Number of digital outputs |
1 |
| Measuring/setting range |
|
| Measuring range |
0...100 |
| Temperature measurement |
|
| Response time |
oil: T09 < 30 |
| Accuracy / deviations |
|
| Accuracy |
± 3; ( ± 5 % in the range < 10 %, > 90 %) |
| Repeatability |
± 0,5 % |
| Resolution |
0,1; (process value) |
| Reaction times |
|
| Response time |
oil: T09 < 30 |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
<table><tr><td>Common - I&D</td><td>Identification and Diagnosis</td></tr><tr><td>Function</td><td>Measurement data, standard resolution</td></tr></table> |
| SIO mode |
no |
| Required master port class |
A |
| Process data analog |
5 |
| Min. process cycle time |
4.5 |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>1249</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
100 |
| Protection |
IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68) |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61000-6-2</td><td></td></tr><tr><td>DIN EN 61000-6-4</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g (11 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>20 g (10...2000 Hz)</td></tr></table> |
| MTTF |
284 |
| UL approval |
<table><tr><td>File number UL</td><td>E364788 </td></tr></table> |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data |
|
| Weight |
119.55 |
| Material |
stainless steel (1.4404 / 316L); PEI; sealing: FKM |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); PA6 GF50; epoxy resin; sealing: NBR |
| Process connection |
threaded connection G 1/2 |
| Remarks |
|
| Remarks |
<table><tr><td> Accuracy values expressed in percent refer to the measuring span</td></tr></table> |
| Pack quantity |
1 pcs. |

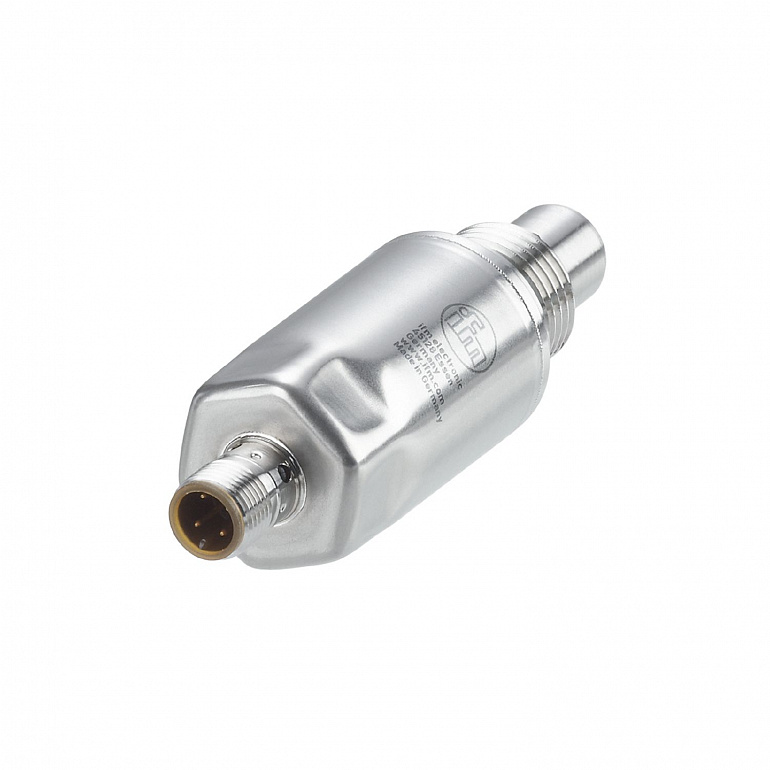

| Electrical connection |
|
| Connection |
Connector: 1 x M12 (EN 61067-2-101); coding: A; Contacts: gold-plated |
