| System |
Free from silicone; gold-plated contacts |
| Free from silicone |
yes |
| Operating voltage |
< 30 AC / < 36 DC |
| Max. current load total |
4 |
| Ambient temperature |
-25...85 |
| Ambient temperature (moving) |
> -15 |
| Protection |
IP 67 |
| Weight |
16.4 |
| Dimensions |
Ø 14 / L = 50 |
| Molded-body material |
TPU (urethane), Halogen-free |
| Material nut |
brass, nickel-plated |
| Pack quantity |
1 pcs. |

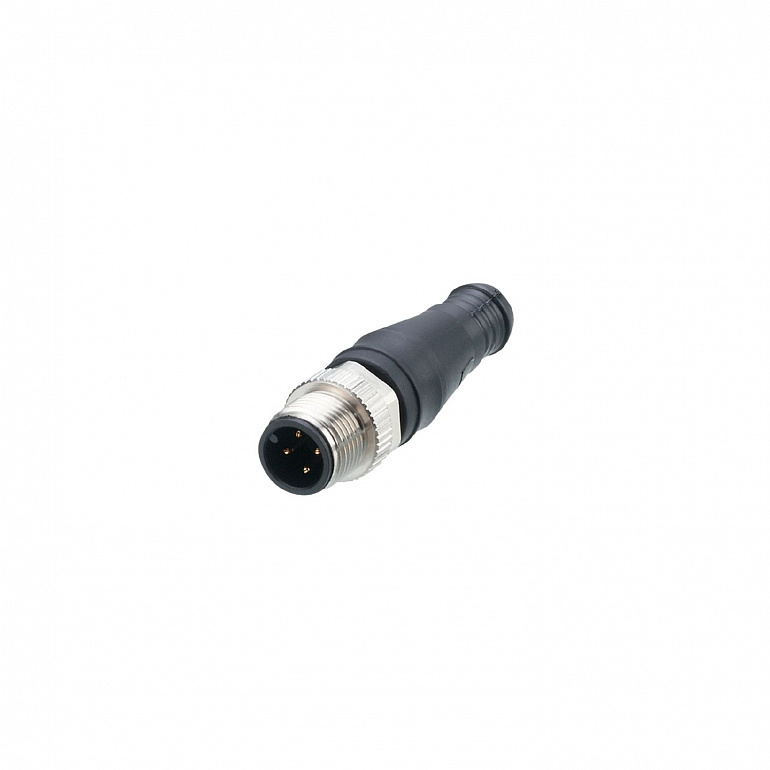

| Connection |
Connector: M12; coding: A; Moulded body: TPU (urethane), Halogen-free; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 1 Nm |
