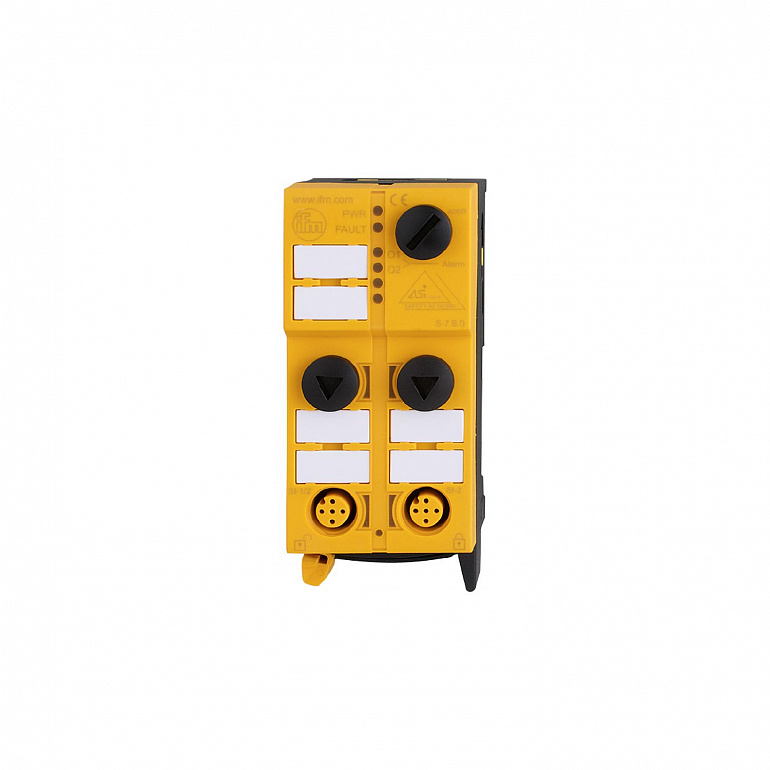

| Design |
housing for DIN rail mounting |
| Application |
AS-i Safety at Work |
| Operating voltage |
26.5...31.6 DC; (cULus - Class 2 source required) |
| Max. current consumption from AS-i |
280 |
| Integrated watchdog |
yes |
| Number of inputs and outputs |
Number of digital inputs: 2 |
| Number of digital inputs |
2; (2 x safety input) |
| Input circuit of digital inputs |
PNP/NPN |
| Sensor supply of the inputs |
AS-i |
| Voltage supply |
18...30 |
| Max. total current rating of inputs |
200 |
| Input current High |
12 |
| Input current low |
12 |
| Short-circuit detection |
|
| Cross-fault monitoring |
|
| Short-circuit proof |
|
| Output signal |
LED: signalling |
| Actuator supply outputs |
AS-i |
| Ambient temperature |
-25...55 |
| Protection |
IP 67 |
| EMC |
|
| Complies with the requirements |
| ISO 13849-1 Category 4, PL e | | IEC 61508 SIL 3 |
|
| MIssion time TM |
175200 |
| Mission time TM (additional indication) |
|
| PFH |
1,3 E-11 |
| AS-i version |
2.11; 3.0 |
| AS-i addressing |
Addressing socket |
| Extended addressing mode |
no |
| AS-i master profile |
M3; M4 |
| AS-i profile |
S-7.B.0 |
| AS-i I/O configuration |
7 |
| AS-i ID code |
B.0 |
| AS-i certificate |
97101 |
| Weight |
289.8 |
| Housing |
rectangular |
| Type of mounting |
AS-i flat cable connection; Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
103 x 45 x 44.7 |
| Material |
housing: PA; Piercing contacts: CuSn6 nickel-plated and tin-plated |
| Display |
| Power | 1 x LED, green | | errors | 1 x LED, red | | Switching status | 1 x LED, yellow | | alarm | 1 x LED, red |
|
|
quick mounting technology for AS-i flat cable: ; three selectable directions |
| Items supplied |
|
| Accessories (optional) |
| Addressing cable:, E70213 | | Protective cap: M12, E73004 |
|
| Remarks |
| PL e, cat. 4, SIL 3 only if the fault exclusions described in the manual are used |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: A; Maximum cable length: 10 m |
|
Connector: 1 x M12; coding: A; Maximum cable length: 10 m |
