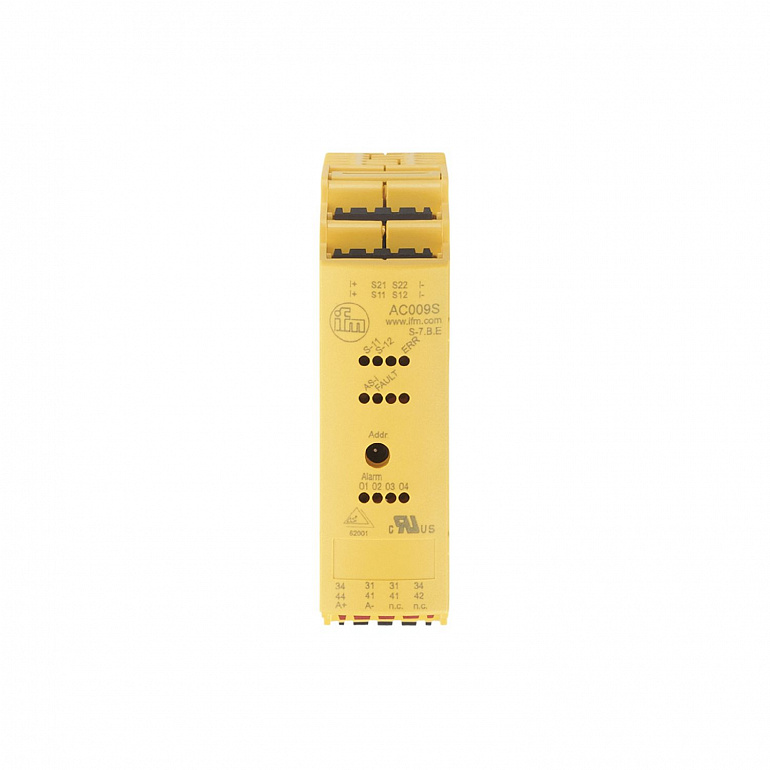

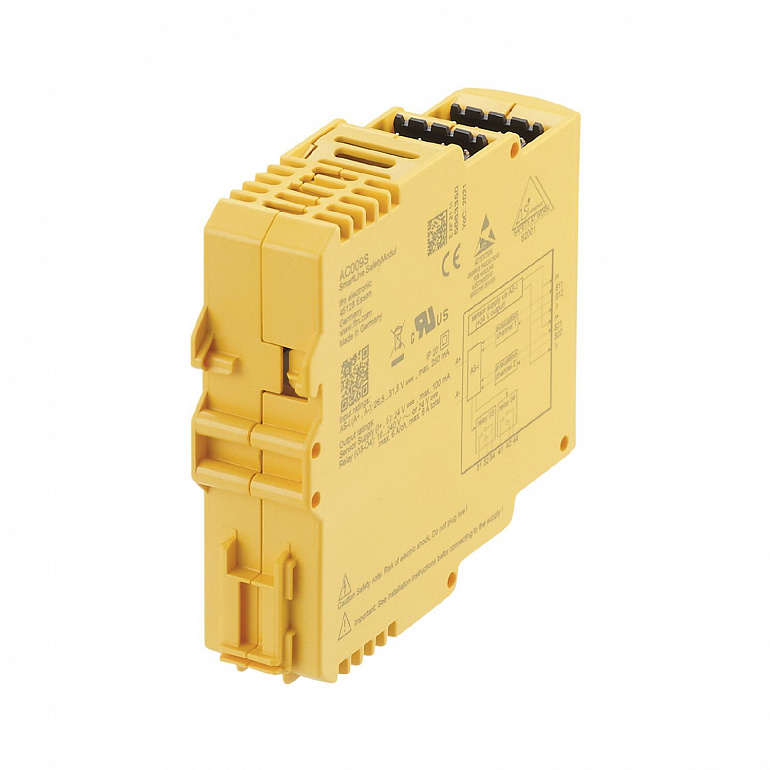

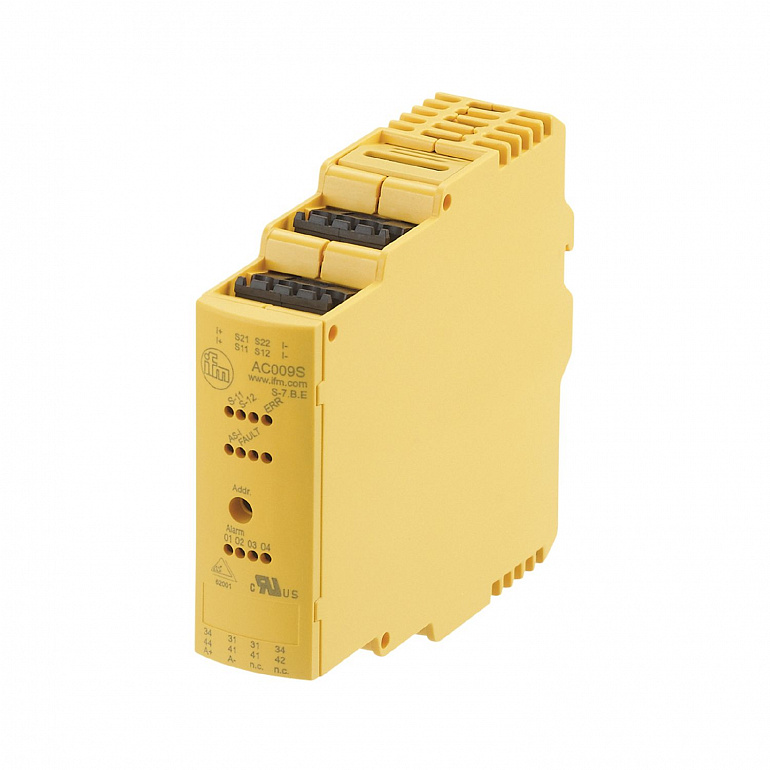

| Design |
housing for DIN rail mounting |
| Application |
I/O modules for control cabinet installations |
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
250 |
| Max. current load total |
6; (resistive load) |
| Integrated watchdog |
yes |
| Number of inputs and outputs |
Number of digital inputs: 2; Number of relay outputs: 2 |
| Number of digital inputs |
2; (2 x safety input) |
| Input circuit of digital inputs |
PNP; (DC) |
| Sensor supply of the inputs |
AS-i |
| Max. total current rating of inputs |
100 |
| Input current High |
10 |
| Short-circuit protection digital inputs |
yes |
| Voltage range DC |
24; (The outputs O3 + O4 must be supplied in pairs with the same voltage. 2 x 24 V DC) |
| Voltage range AC |
10...240; (The outputs O3 + O4 must be supplied in pairs with the same voltage. 2 x 240 V AC) |
| Max. current load per output |
6000; (resistive load) |
| Number of relay outputs |
2 |
| Short-circuit proof |
no |
| Electrically separated |
yes |
| Ambient temperature |
-25...50 |
| Storage temperature |
< 80 |
| Max. relative air humidity |
80; (non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 20 |
| Degree of soiling |
2 |
| EMC |
| EN 61000-6-2 | | | EN 62026-2 | | | EN 61326-3-1 | | | EN 61000-6-4 | |
|
| Standard |
EN 61010-1; EN 13849-1; EN 63000 |
| Complies with the requirements |
| ISO 13849-1 Category 4, PL e | | IEC 61508 SIL 3 |
|
| MIssion time TM |
175200 |
| Mission time TM (additional indication) |
|
| PFH |
4E-09 |
| AS-i version |
2.11; 3.0 |
| AS-i addressing |
Addressing socket |
| Extended addressing mode |
no |
| AS-i profile |
S-7.B.E |
| AS-i I/O configuration |
7 |
| AS-i ID code |
B.E |
| AS-i certificate |
62001 |
| Data bits |
| Data bit | D0 | D1 | D2 | D3 | | Input | SI-1 | SI-1 | SI-2 | SI-2 | | Output | O-1 | O-2 | O-3 | O-4 |
|
| Weight |
257.75 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
93 x 25.4 x 108 |
| Material |
PC-GF20 |
| Display |
| Switching status | LED, yellow SI1...SI2, O3...O4 | | Power | LED, green AS-i | | errors | LED, red ERR O1...O2 |
|
| Pack quantity |
1 pcs. |
| Connection |
pin headers: 4 x ; Spacing: 5.0 mm |
