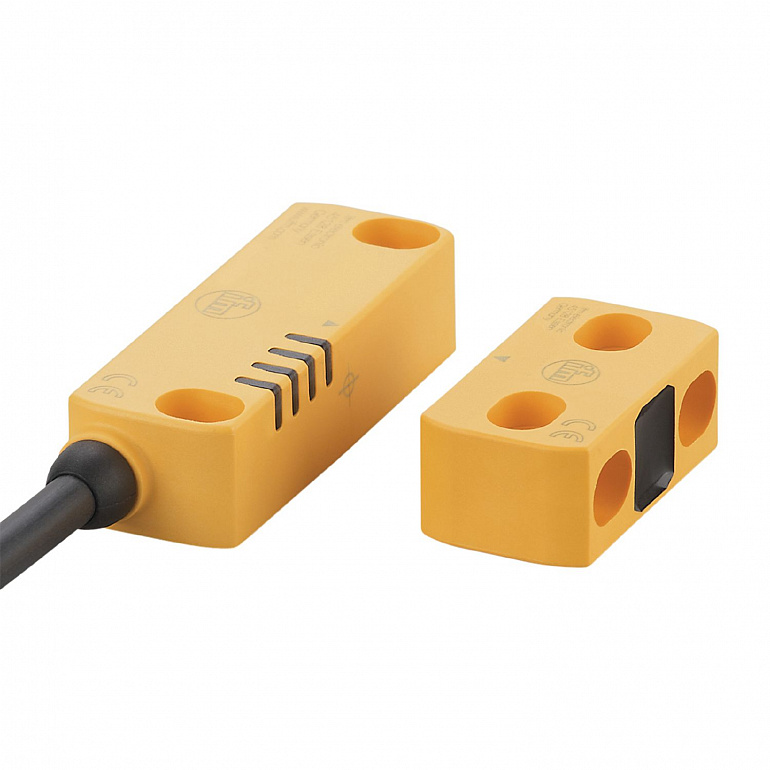

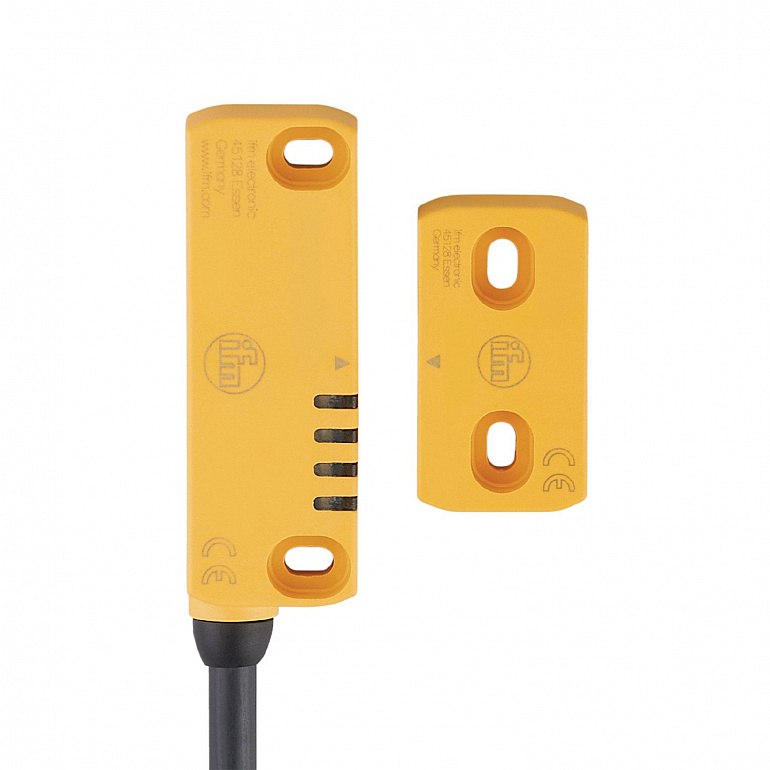

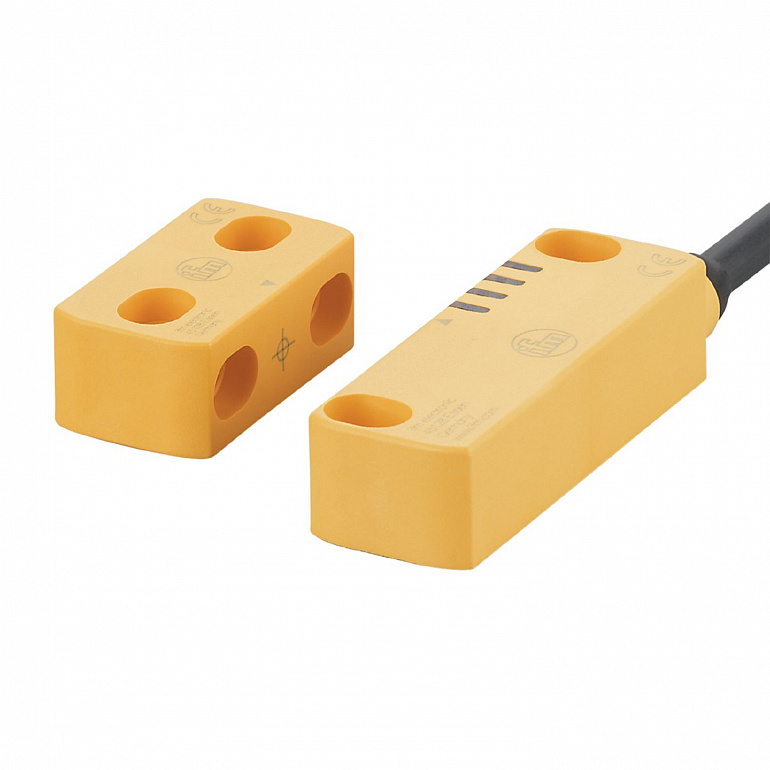

| Electrical design |
PNP |
| Output function |
2 x OSSD, 1 x PNP |
| Sensing range |
12; (with defined actuator) |
| Housing |
rectangular |
| Dimensions |
72 x 18 x 25 |
| Design |
codable target |
| Type of operation |
permanent operation |
| Radio approval for |
USA; Canada; Australia; EU/RED; China; Singapore |
| Note on radio approval |
| The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
|
| Operating voltage |
20.4...26.4 DC |
| Rated insulation voltage |
32 |
| Operating current |
40...700 |
| No-load current |
30 |
| Current consumption |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
1500 |
| Operating frequency |
0,125 |
| Transmission power ERP |
0.0002245 |
| Electrical design |
PNP |
| Output function |
2 x OSSD, 1 x PNP |
| Max. leakage current |
0.5 |
| Permanent current rating of switching output DC |
50 |
| Switching frequency DC |
1 |
| Output data |
interface type C class 2 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Max. capacitive load CL_max |
200 |
| Sensing range |
12; (with defined actuator) |
| Safe switching-off distance s(ar) |
16 |
| Hysteresis |
20 |
| Repeatability analog output |
≤ 10; (% Sn) |
| Response time to safety request |
160 |
| Response time when approaching the enable zone |
600 |
| Applications |
Class C to EN 60654-1 weatherproof application |
| Ambient temperature |
10...40 |
| Note on ambient temperature |
| operational life ≤ 175200 h |
|
| Max. relative air humidity |
briefly: 5...95 %; permanent: 5...70 % |
| Air pressure |
80...106 |
| Max. height above sea level |
2000 |
| Ionizing radiation |
not permissible |
| Salt spray |
no |
| Protection |
IP 65; IP 67; (protected cable laying) |
| EMC |
|
| Shock resistance |
| EN 60068-2-27 | 30 g (11 ms) |
|
| Vibration resistance |
| IEC 60068-2-6 | 10 g (10...55 Hz) |
|
| Complies with the requirements |
| ISO 13849-1: 2015 Category 4, PL e | | IEC 62061 SIL 3 |
|
| MIssion time TM |
≤ 175200 |
| Mission time TM (additional indication) |
|
| PFH |
1,5E-09 |
| Weight |
331.5 |
| Housing |
rectangular |
| Mounting |
non-flush mountable |
| Dimensions |
72 x 18 x 25 |
| Material |
PA |
| Tightening torque |
0.8...2 |
| Display |
| Function | 1 x LED, (ACT) | | Input | 1 x LED, (IN) | | Output | 1 x LED, (OUT) | | Power | 1 x LED, (PWR) |
|
| Items supplied |
| codable target | | washers: 4 | | cover caps: 8 |
|
| Pack quantity |
1 pcs. |
| Connection |
Cable: 2 m, PVC; 8 x 0.34 mm² |
