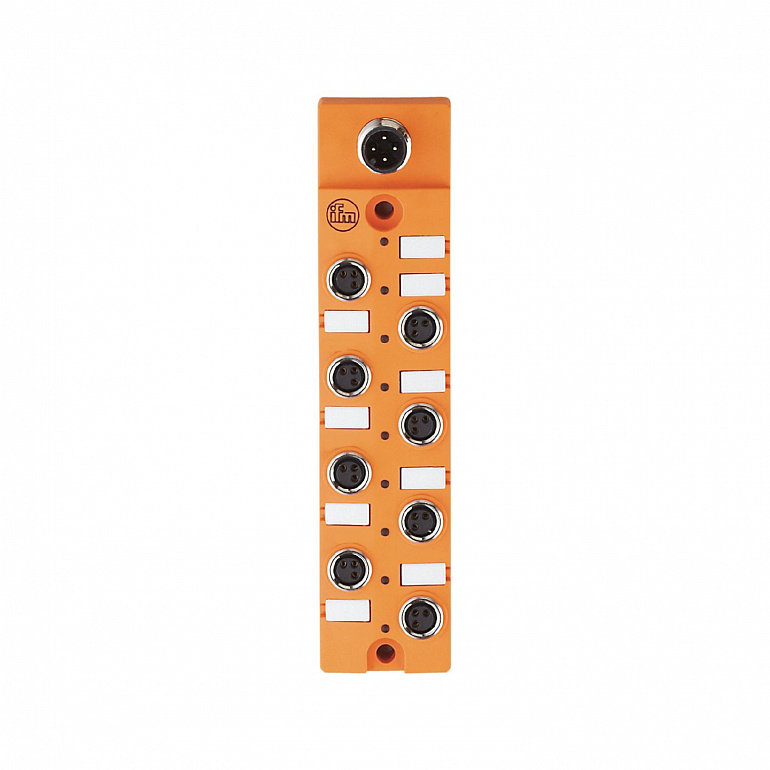

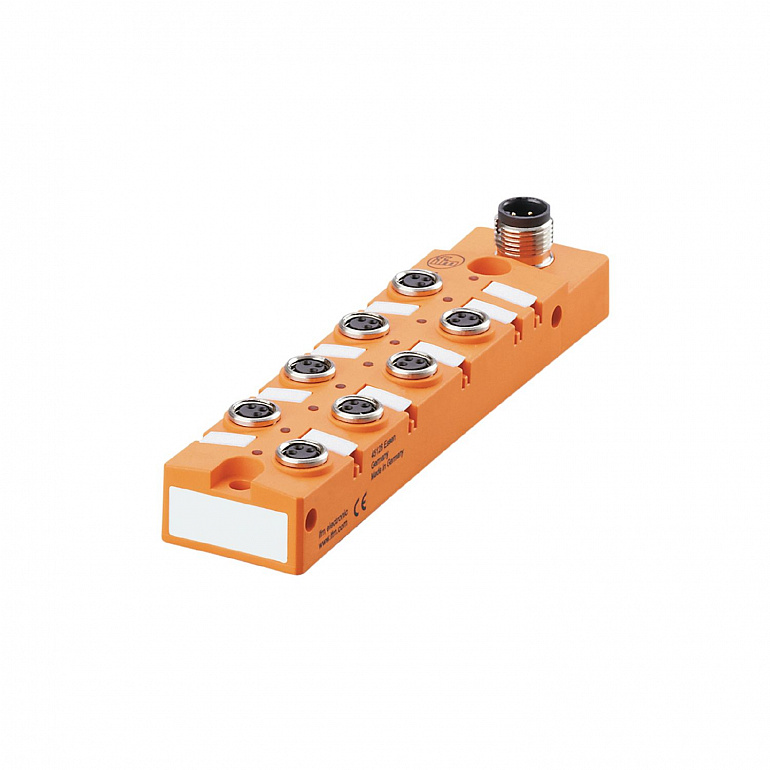

| Operating voltage |
18...30 DC; (cULus - Class 2 source required) |
| Current consumption |
50 |
| Current rating per port |
0.1 |
| Number of inputs and outputs |
Number of digital inputs: 8 |
| Number of digital inputs |
8; (4 x 2) |
| Input circuit of digital inputs |
PNP |
| Input current limitation |
15 |
| Input current High |
6...10 |
| Input current low |
0...2 |
| Switching level high |
> 11 |
| Digital inputs protected against short circuits |
yes |
| Communication interface |
IO-Link |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| IO-Link Device | 790 |
|
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
no |
| Process data binary |
32 |
| Min. process cycle time |
2.9 |
| Ambient temperature |
-25...70 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90; (non condensing) |
| Protection |
IP 67 |
| Protection rating (NEMA 250) |
6P |
| Chemical media |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA | | NEMA 250 5.13.1 | AA |
|
| EMC |
| EN 61000-6-2 | | | EN 61000-6-3 | | | IEC 61131-9 | |
|
| Weight |
144.5 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
129.5 x 30 x 23.7 |
| Material |
housing: PBT; Socket: brass nickel-plated; O-ring: FKM |
| Sealing material |
FKM |
| Display |
| Power | LED, green | | errors | LED, red | | Function | LED, yellow |
|
| Items supplied |
| panel for labelling | | Protective caps: 2 |
|
| Accessories (optional) |
| Protective cap: M8, E73005 |
|
| Remarks |
| For use in NFPA 79 Applications only | | The device is to be operated to IO-Link specification V1.1.2. | | The maximum cable length of the IO-Link cable is 20 m. |
|
| Pack quantity |
1 pcs. |
|
Connector: M12; coding: A |
|
Connector: M8; coding: A; sealing: FKM |
