| Operating voltage |
18...30 DC |
| Current consumption |
< 50; (US) |
| Protection class |
III |
| Number of inputs and outputs |
Number of analog inputs: 4 |
| Number of analog inputs |
4; (PT100: connection of 2-wire, 3-wire and 4-wire sensors; PT1000: connection of 2-wire, 3-wire and 4-wire sensors, TCK, TJK) |
| Precision analog input |
± 0,3 |
| Analog input |
| function type | Thermocouple (ungeerdet) | | Measuring range [°C] | type J: -210...1200 | | Measuring range [°C] | type K: -200...1370 |
|
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1.3 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 4.3.4 | Measuring and Switching Sensor, floating point, 4 channel | | Common - I&D | Identification and Diagnosis | | Extension | Quantity detection, switches when value exceeds the setpoint | | Function | Locator | | Function | ProductURI |
|
| SIO mode |
no |
| Required master port class |
A |
| Min. process cycle time |
4 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1450 |
|
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...70 |
| Max. relative air humidity |
90 |
| Max. height above sea level |
2000 |
| Protection |
IP 65; IP 67 |
| Protection rating (NEMA 250) |
6P |
| Degree of soiling |
2 |
| Chemical media |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA | | NEMA 250 5.13.1 | AA |
|
| EMC |
| EN 61000-6-2 | | | EN 61000-6-3 | | | IEC 61131-9 | |
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 | | | DIN EN 60068-2-6 | |
|
| Weight |
347.051 |

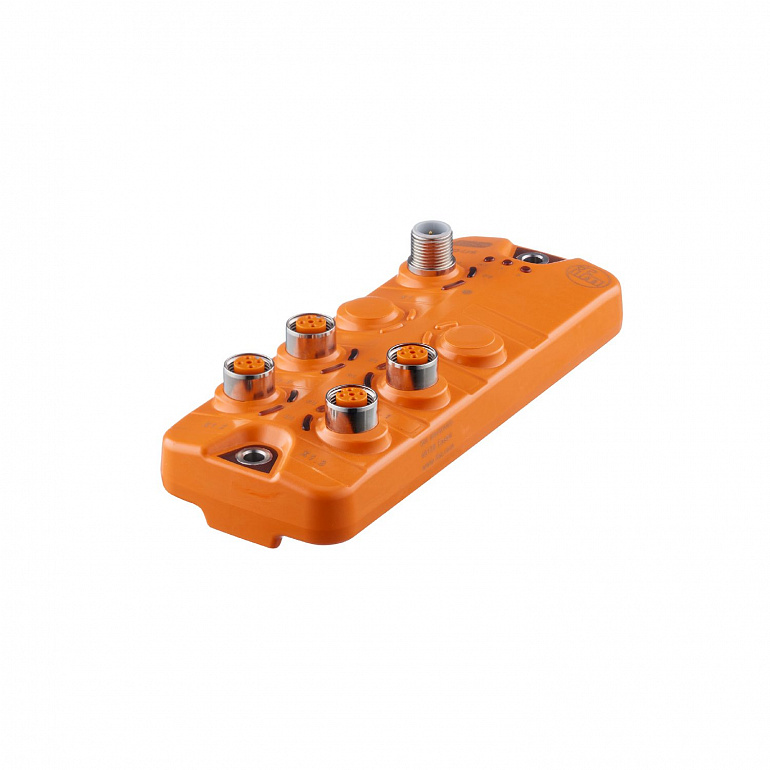

| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
152 x 59.3 x 38 |
| Material |
housing: PA orange; Socket: brass nickel-plated |
| Sealing material |
FKM |
| Display |
| Power | 2 x LED, green | | fault | 3 x LED, red | | Function | 8 x LED, yellow |
|
| Accessories (optional) |
| protective cap for M12 sockets |
|
| Remarks |
| For information about installation and operation please see the operating instructions. |
|
| Pack quantity |
1 pcs. |

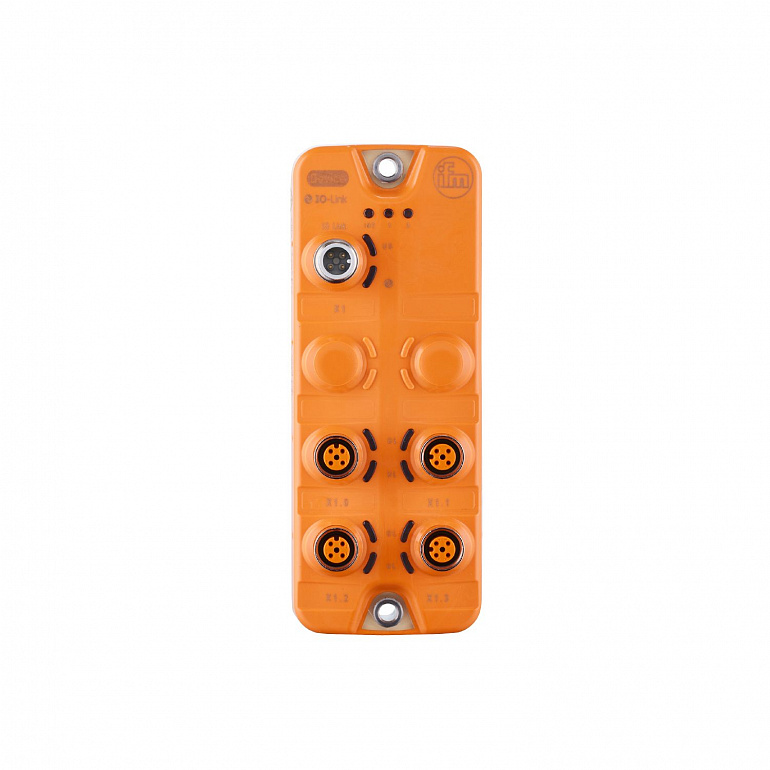

| X1 |
Connector: 1 x M12; coding: A |
| X1.0...X1.3 |
Connector: 4 x M12; coding: A; sealing: FKM |
