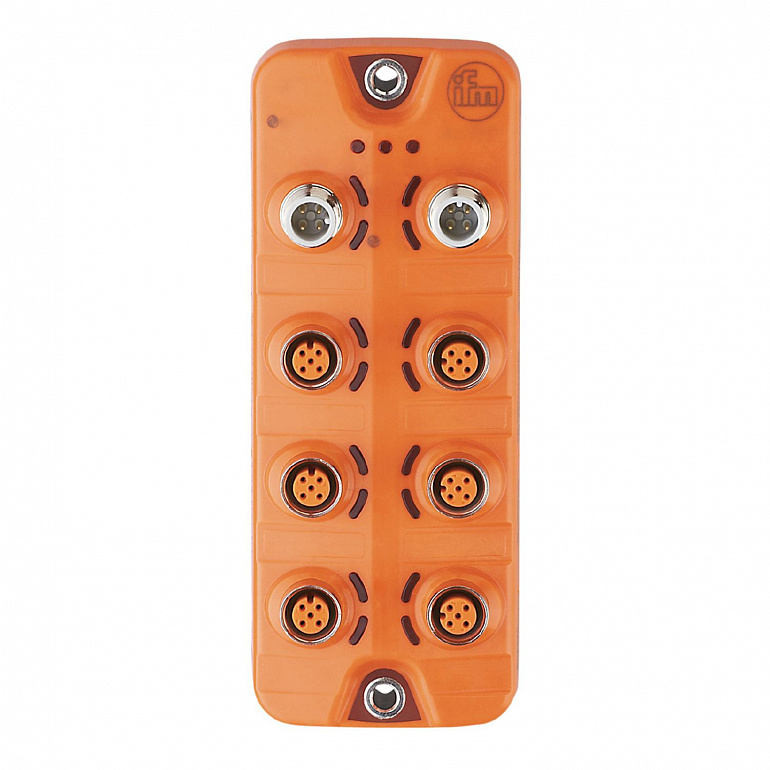

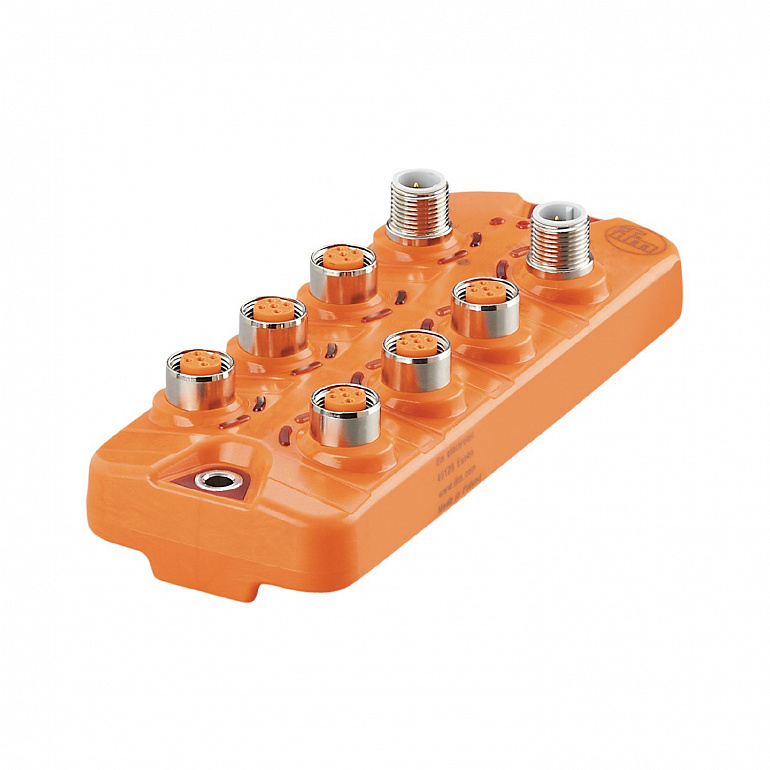

| Application |
I/O modules for field applications |
| Operating voltage |
18...30 DC; (US) |
| Current consumption |
50; (US) |
| Protection class |
III |
| Additional voltage supply |
18...30 DC; (UA) |
| Max. current consumption from additional supply |
3600; (UA) |
| Number of inputs and outputs |
Number of digital outputs: 12 |
| Number of digital outputs |
12; (6 x 2) |
| Output function |
PNP |
| Max. current load per output |
1800 |
| Max. current load outputs total |
3.6; (Max. current load per output side: 1800 mA) |
| Electrically separated |
yes |
| Communication interface |
IO-Link |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| IO-Link Device | 893 |
|
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
no |
| Min. process cycle time |
5.6 |
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...70 |
| Max. relative air humidity |
90 |
| Max. height above sea level |
2000 |
| Protection |
IP 65; IP 67 |
| Protection rating (NEMA 250) |
6P |
| Degree of soiling |
2 |
| Chemical media |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA | | NEMA 250 5.13.1 | AA |
|
| EMC |
| EN 61000-6-2 | | | EN 61000-6-3 | | | IEC 61131-9 | |
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 | | | DIN EN 60068-2-6 | |
|
| Weight |
308.8 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
152 x 59.3 x 38 |
| Material |
housing: PA; Socket: brass nickel-plated |
| Sealing material |
FKM |
| Display |
| Power | LED, green | | errors | LED, red | | Function | LED, yellow |
|
| Accessories (optional) |
|
| Remarks |
| Using the device within a system with requirements for functional safety is possible by deactivating the actuator voltage UA without interaction. | | For further information on functional safety, please refer to the operating instructions supplement under “Downloads”. |
|
| Pack quantity |
1 pcs. |
| X1 |
Connector: 1 x M12; coding: A |
| X1.0...X1.5 |
Connector: 6 x M12; coding: A; sealing: FKM |
| X31 |
Connector: 1 x M12; coding: A |
