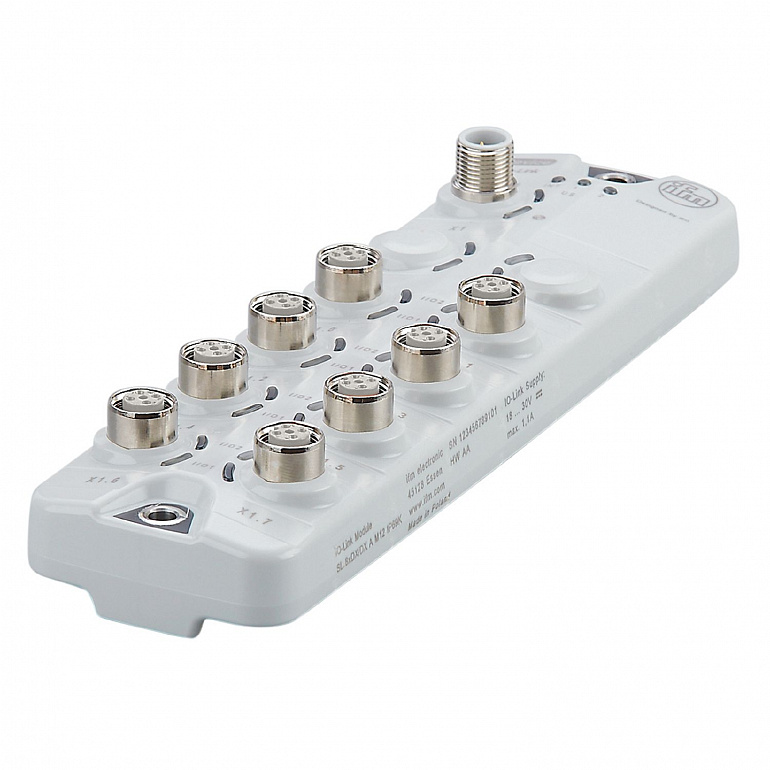

| Operating voltage |
18...30 DC |
| Current consumption |
100; (US) |
| Protection class |
III |
| Additional voltage supply |
18...30 DC; (UA) |
| Max. current consumption from additional supply |
3600; (UA) |
| Total number of inputs and outputs |
16 |
| Number of inputs and outputs |
Number of digital inputs: 16; Number of digital outputs: 16 |
| Number of digital inputs |
16; (configurable) |
| Input circuit of digital inputs |
PNP; (type 3 (IEC 61131-2)) |
| Sensor supply of the inputs |
UA |
| Voltage supply |
18...30 |
| Input current High |
2...15 |
| Input current low |
0...1.5 |
| Switching level high |
11...28 |
| Switching level low |
0...5 |
| Number of digital outputs |
16; (configurable) |
| Max. current load per output |
1800 |
| Max. current load outputs total |
3.6; (max. current load per segment: 1800 mA) |
| Short-circuit protection |
yes |
| Actuator supply outputs |
UA |
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| SIO mode |
no |
| Required master port class |
B |
| Min. process cycle time |
4 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1409 |
|
| Note |
| For further information please see the IODD PDF file at "Downloads" |
|
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...70 |
| Max. relative air humidity |
90 |
| Max. height above sea level |
2000 |
| Protection |
IP 65; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection rating (NEMA 250) |
6P |
| Degree of soiling |
2 |
| Chemical media |
| ISO 16750-5 | HLP, CC, DB, DC, DD, CA | | NEMA 250 5.13.1 | AA |
|
| EMC |
| EN 61000-6-2 | | | EN 61000-6-3 | | | IEC 61131-9 | |
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 | | | DIN EN 60068-2-6 | |
|
| Weight |
482.326 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
208 x 59.3 x 38.4 |
| Material |
housing: PA grey; Socket: stainless steel (1.4404 / 316L) |
| Sealing material |
EPDM |
| Display |
| Power | 1 x LED, green | | fault | 1 x LED, red | | Function | 1 x LED, yellow |
|
| Accessories (optional) |
| protective cap for M12 sockets |
|
| Pack quantity |
1 pcs. |

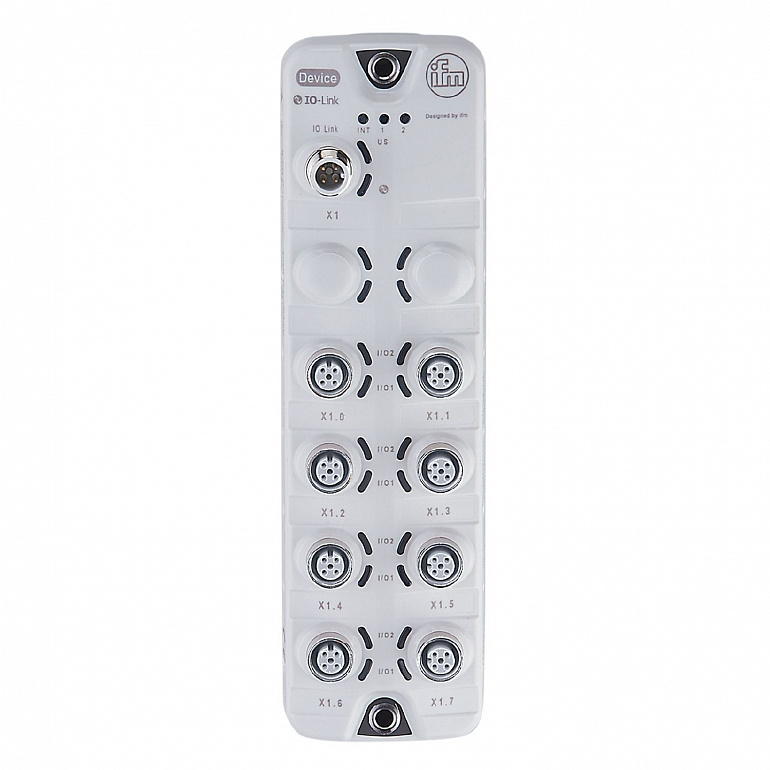

| X1 |
Connector: 1 x M12; coding: A |
| X1.0...X1.7 |
Connector: 8 x M12; coding: A; sealing: EPDM |
