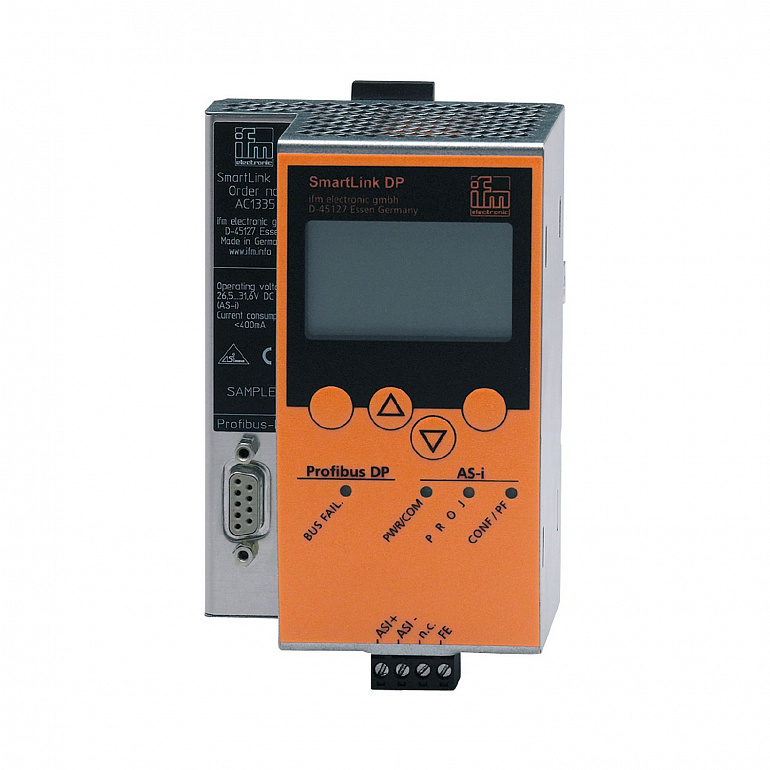

| Design |
housing for DIN rail mounting |
| Application |
PROFIBUS DP gateway |
| Operating voltage |
26.5...31.6 DC; (AS-i) |
| Insulation rating |
500 |
| Max. current consumption from AS-i |
200 |
| Max. power consumption |
4 |
| Number of AS-i masters |
1 |
| Electrical separation |
yes |
| Electrical design |
AS-i |
| Communication interface |
PROFIBUS |
| Transmission standard |
EN 50170 |
| Transmission rate |
12 MBaud |
| Protocol |
Profibus DP |
| Usage type |
Data transmission |
| Note on interfaces |
|
| Ambient temperature |
0...60 |
| Storage temperature |
-20...70 |
| Protection |
IP 20 |
| MTTF |
131 |
| AS-i version |
2.11; 3.0 |
| AS-i master profile |
M4 |
| Weight |
391.5 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
138 x 85 x 68 |
| Material |
aluminum; steel sheet galvanized |
| Display |
| Function | 2 x LED, red | | 1 x LED, green | | 1 x LED, yellow | | full graphic LCD display |
|
| Pack quantity |
1 pcs. |
