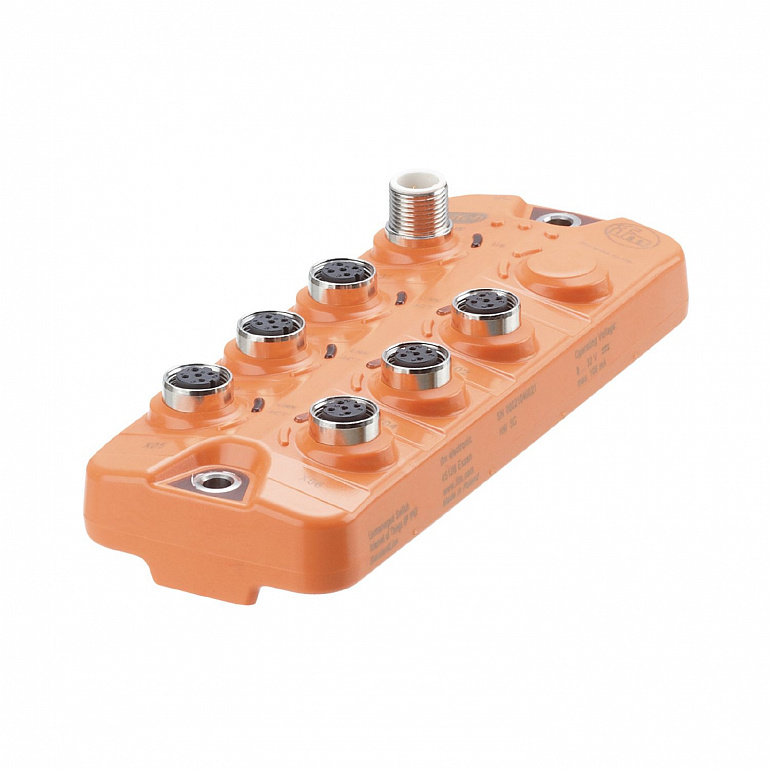

| Design |
unmanaged switch for field applications |
| Application |
for TCP/IP networks; for EtherNet/IP networks; for Modbus TCP networks |
| Operating voltage |
8...32 DC; ((US ; to SELV/PELV)) |
| Nominal voltage DC |
12 / 24 |
| Current consumption |
100; (US; 24 V: 50 mA) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Communication interface |
Ethernet |
| Number of Ethernet interfaces |
6 |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10 MBit/s; 100 MBit/s |
| Note on interfaces |
| processing type: Store and Forward | | auto polarity | | auto negotiation | | auto MDI-X | | QoS (Quality of Service): IEEE 802.1p, IEEE 802.1Q | | priority queues: 4 | | MAC table size: 2000 addresses | | transmission: LLDP, PTCP 01:80:C2:00:00:0E |
|
| Ambient temperature |
-25...70 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90 |
| Max. height above sea level |
4000 |
| Protection |
IP 65; IP 66; IP 67 |
| Protection rating (NEMA 250) |
6P |
| Degree of soiling |
2 |
| Chemical media |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA | | NEMA 250 5.13.1 | AA |
|
| EMC |
| UN/ECE-R10 Noise emission and noise interference: | 100 V/m | | DIN EN 61000-6-2 ESD | | | DIN EN 61000-6-4 Burst | | | ISO 7637-2 pulse 1 | severity level 4 / function state C (12 V) | | ISO 7637-2 pulse 2a | severity level 4 / function state A (12 V) | | ISO 7637-2 pulse 2b | severity level 4 / function state C (12 V) | | ISO 7637-2 pulse 3a | severity level 4 / function state A (12 V) | | ISO 7637-2 pulse 3b | severity level 4 / function state A (12 V) | | ISO 7637-2 pulse 4 | severity level 4 / function state A (12 V) | | ISO 7637-2 pulse 5a | severity level 3 / function state A (12 V) | | ISO 7637-2 pulse 1 | severity level 4 / function state C (24 V) | | ISO 7637-2 pulse 2a | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 2b | severity level 4 / function state C (24 V) | | ISO 7637-2 pulse 3a | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 3b | severity level 4 / function state A (24 V) | | ISO 7637-2 pulse 4 | severity level 4 / function state A (24 V) |
|
| Shock resistance |
|
| Fast temperature changes |
| EN 60068-2-30 | | | EN 60068-2-78 | | | EN 60068-2-52 | |
|
| Vibration resistance |
| DIN EN 60068-2-64 | | | DIN EN 60068-2-6 | | | EN 60068-2-27 | |
|
| MTTF |
232 |
| Weight |
301.15 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
152 x 59.3 x 38.4 |
| Material |
housing: PA orange; Socket: brass nickel-plated |
| Sealing material |
FKM |
| Remarks |
| Further information is available in the manual. |
|
| Pack quantity |
1 pcs. |

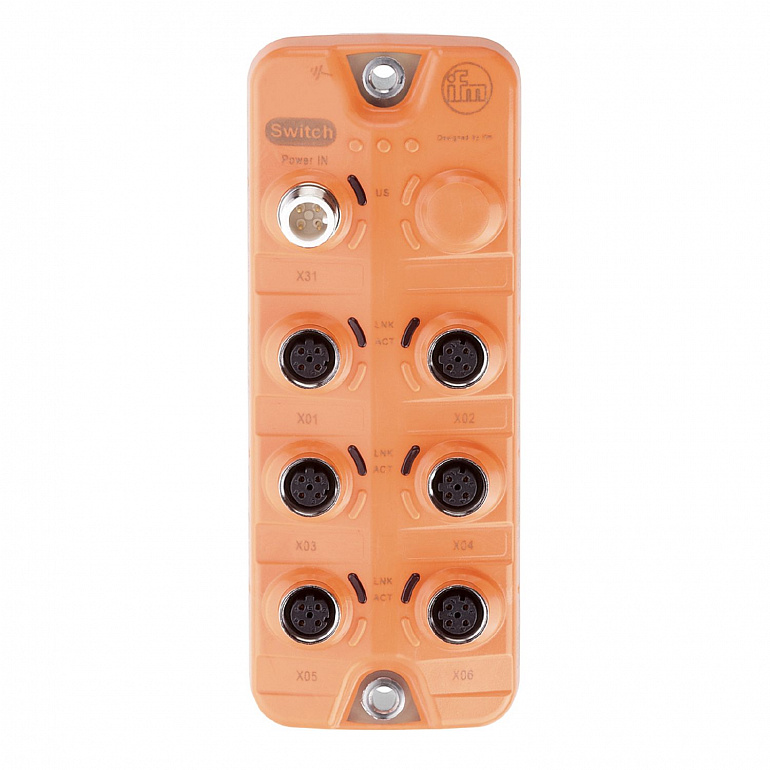

| X01...X06 |
Connector: 6 x M12; coding: D; sealing: FKM |
| X31 |
Connector: 1 x M12; coding: A |
