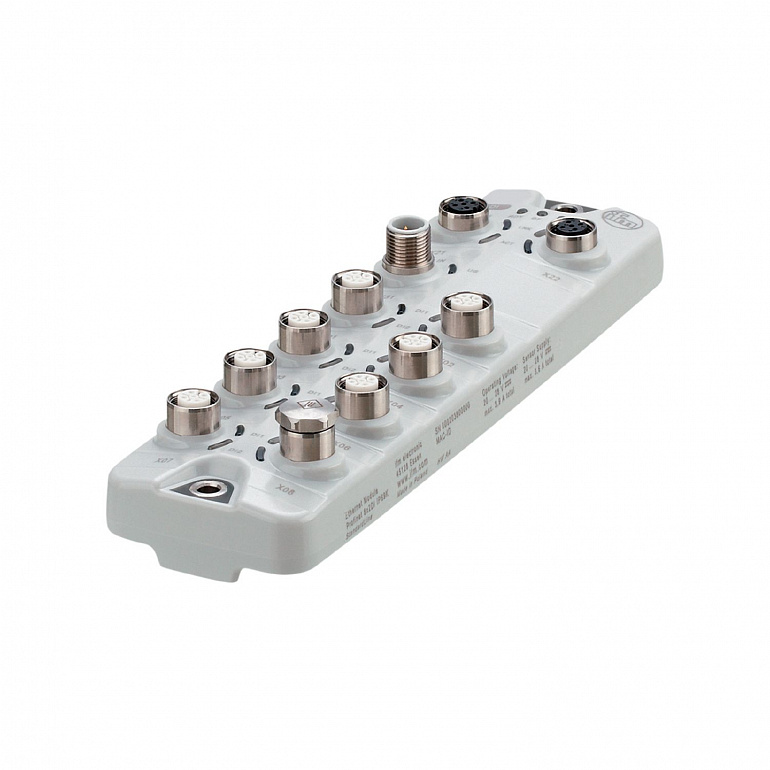

| Application |
hygienic systems; I/O modules for field applications |
| Daisy-chain function |
fieldbus interface |
| Operating voltage |
20...30 DC; (US ; to SELV/PELV) |
| Current consumption |
200...3900; (US) |
| Protection class |
III |
| Max. current load total |
3.6 |
| Number of inputs and outputs |
Number of digital inputs: 16 |
| Number of digital inputs |
16; (type 2 according to IEC 61131-2) |
| Switching level high |
11...28 |
| Switching level low |
0...5 |
| Digital inputs protected against short circuits |
yes |
| Parameter setting options |
Counter function |
| Functions and parameters |
| Function | CTU (Up Counter), CTD (Down Counter), CTUD (Up-Down Counter), CTDIR (Direction Counter) | | number | 8 (1 counter for each port) | | count frequency | 4500 Hz | | main counter | 32 Bit (0…4.294.967.295) | | batch counter | 16 Bit (0…65.535) |
|
| Communication interface |
Ethernet |
| Transmission standard |
100Base-TX |
| Transmission rate |
100 MBit/s |
| Protocol |
EtherCAT |
| Factory settings |
| MAC address: see type label |
|
| Note on interfaces |
| AoE (ADS over EtherCAT) | | CoE (CANopen over EtherCAT) |
|
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90 |
| Protection |
IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection rating (NEMA 250) |
6P |
| Degree of soiling |
2 |
| Chemical media |
| ISO 16750-5 | HLP, CC, DB, DC, DD, CA | | NEMA 250 5.13.1 | AA |
|
| EMC |
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 2009-04 | | | DIN EN 60068-2-6 2008-10 | |
|
| Weight |
421 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
208 x 59.3 x 38.4 |
| Material |
housing: PA grey; Socket: stainless steel (1.4404 / 316L) |
| Sealing material |
EPDM |
| Items supplied |
| Protective cap: 1 x M12, stainless steel, E12542 |
|
| Remarks |
| Further information is available in the manual. |
|
| Pack quantity |
1 pcs. |

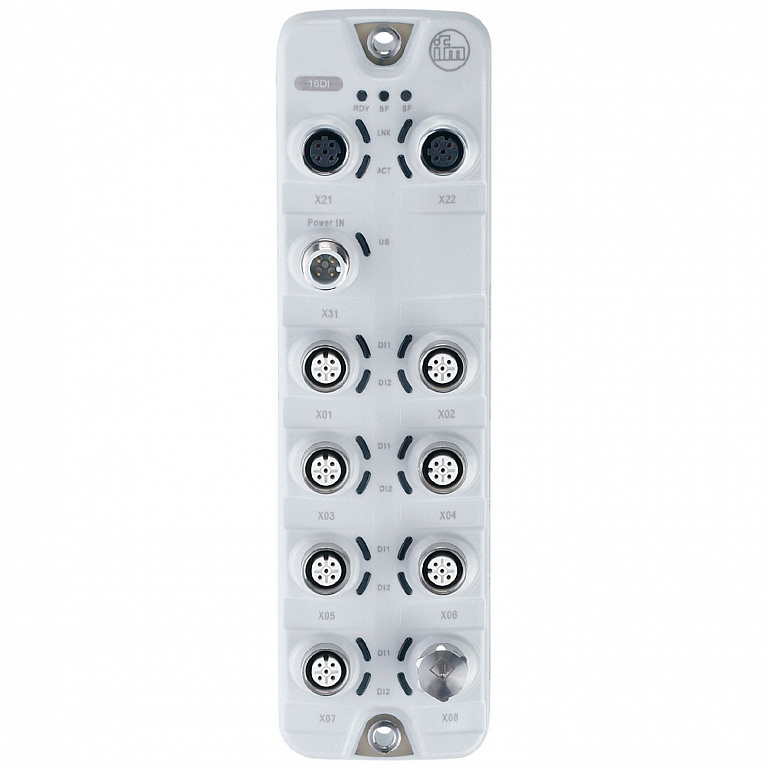

| IN / OUT X21, X22 |
Connector: M12; coding: D; sealing: EPDM |
| Digital Input X01...X08 |
Connector: M12; coding: A; sealing: EPDM |
| X31 |
Connector: M12; coding: A |
