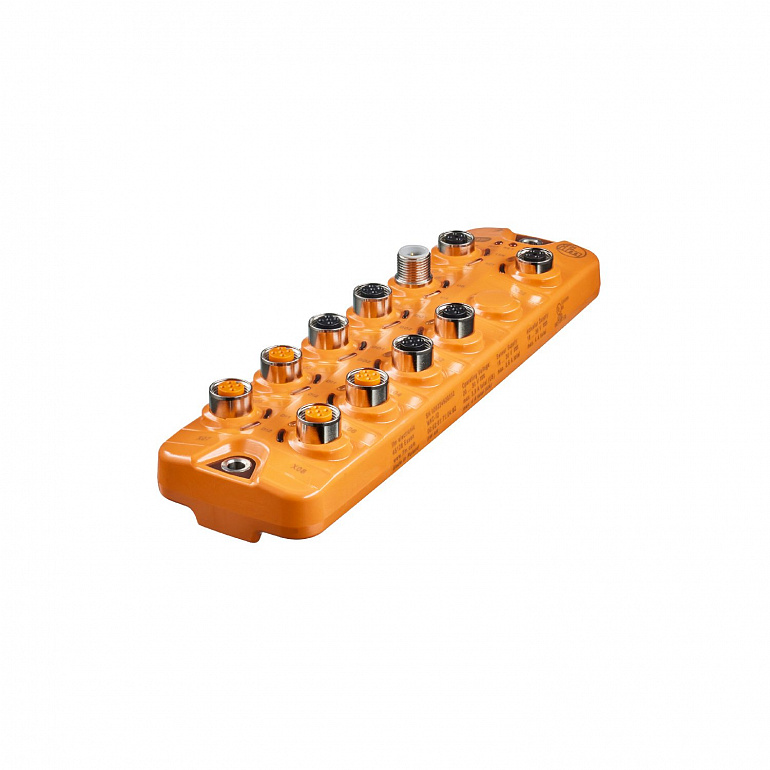

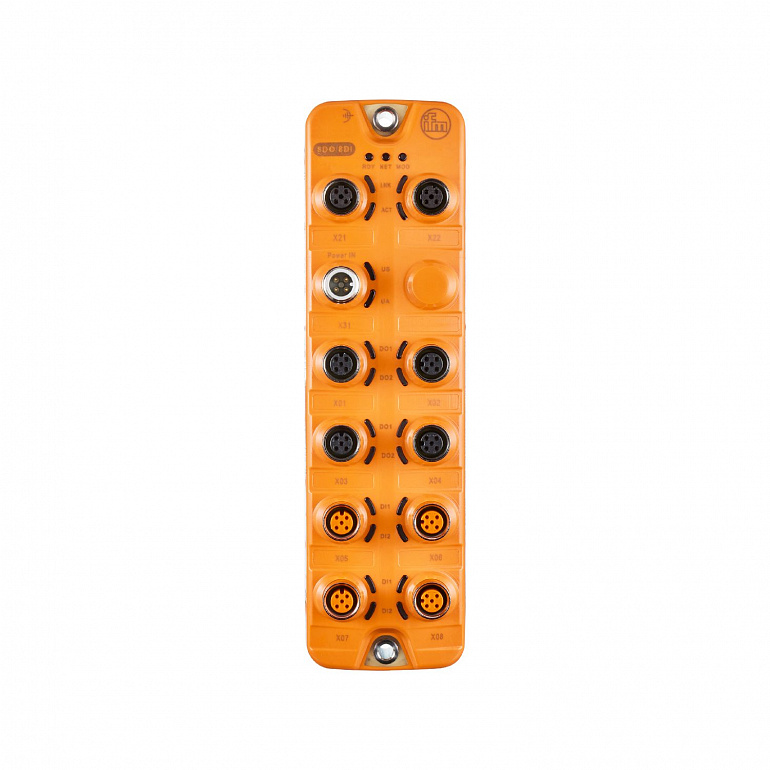

| Application |
I/O modules for field applications |
| Daisy-chain function |
fieldbus interface |
| Operating voltage |
20...30 DC; (US ; to SELV/PELV) |
| Current consumption |
300...3900 |
| Protection class |
III |
| Additional voltage supply |
20...30 DC; (UA) |
| Max. current load per output |
3600 |
| Max. current load total |
3.6 |
| Current rating per port |
3.6 |
| Number of inputs and outputs |
Number of digital inputs: 8; Number of digital outputs: 8 |
| Number of digital inputs |
8; (type 2 according to IEC 61131-2) |
| Switching level high |
11...30 |
| Switching level low |
0...5 |
| Digital inputs protected against short circuits |
yes |
| Number of digital outputs |
8 |
| Short-circuit proof |
yes |
| Parameter setting options |
Counter function |
| Functions and parameters |
| Function | CTU (Up Counter), CTD (Down Counter), CTUD (Up-Down Counter), CTDIR (Direction Counter) | | switching function (SSC) | single point, two point, window, latch | | number | 4 (1 counter for each input port) | | count frequency | 4500 Hz | | main counter | 32 Bit (0…4.294.967.295) | | batch counter | 16 Bit (0…65.535) |
|
| Communication interface |
Ethernet |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10 MBit/s; 100 MBit/s |
| Protocol |
EtherNet/IP |
| Factory settings |
| IP address: 192.168.1.250 | | subnet mask: 255.255.255.0 | | gateway IP address: 0.0.0.0 | | MAC address: see type label |
|
| Note on interfaces |
| DHCP, BOOTP, static | | DLR (Device Level Ring) | | Supported network topologies: line | | ring |
|
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90 |
| Protection |
IP 65; IP 66; IP 67 |
| Protection rating (NEMA 250) |
6P |
| Degree of soiling |
2 |
| Chemical media |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA | | NEMA 250 5.13.1 | AA |
|
| EMC |
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 2009-04 | | | DIN EN 60068-2-6 2008-10 | |
|
| Weight |
413.3 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
208 x 59.3 x 38.4 |
| Material |
housing: PA orange; Socket: brass nickel-plated |
| Sealing material |
FKM |
| Remarks |
| Further information is available in the manual. |
|
| Pack quantity |
1 pcs. |
| IN / OUT XF1, XF2 |
Connector: M12; coding: D; sealing: FKM |
| Digital Output X1...X4 |
Connector: M12; coding: A; sealing: FKM |
| XD1 |
Connector: M12; coding: A |
