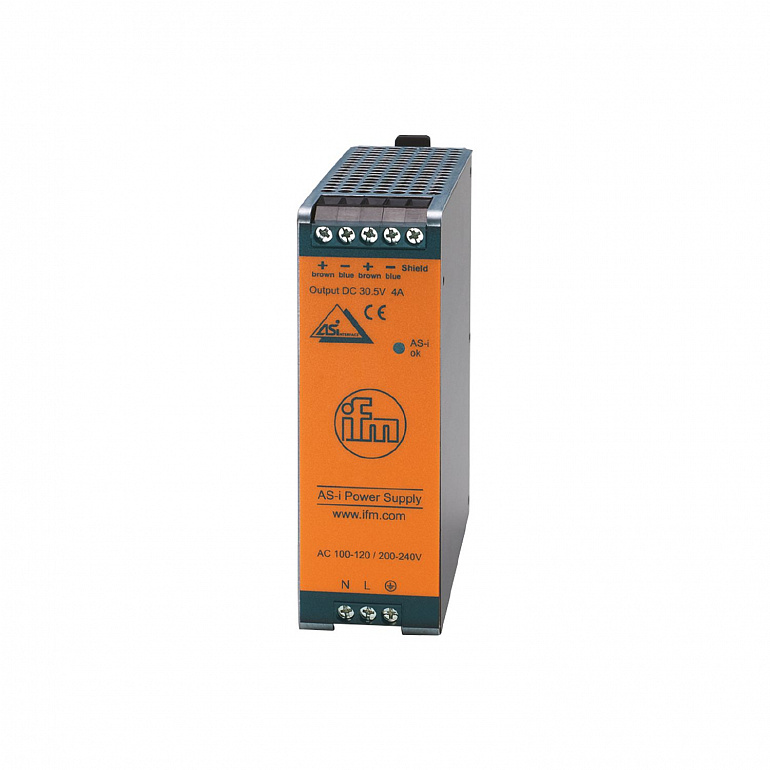

| Design |
housing for DIN rail mounting |
| Frequency AC |
47...64 |
| Operating voltage tolerance |
10 |
| Operating voltage |
automatic range selection |
| Nominal voltage AC |
110 / 230 |
| Input voltage range AC |
100...120 / 200...240 |
| Protection class |
I |
| Overvoltage protection |
yes; (< 36 V) |
| Max. power-on delay time |
900 |
| Output voltage AS-i |
30.5 |
| Output power (permanent) |
122 |
| Output power (peak) |
134 |
| Note on output power (peak) |
| briefly to load bus capacities after power on |
|
| Power factor (nominal voltage 120 V AC / 60 Hz) |
0.56 |
| Power factor (nominal voltage 230 V AC / 50 Hz) |
0.47 |
| Power reserve |
10 |
| Number of output circuits |
1 |
| Output current AS-i |
4 |
| Max. residual ripple |
50 |
| Switch-on peak current (nominal voltage 120 V AC / 60 Hz) |
3 |
| Switch-on peak current (nominal voltage 230 V AC / 50 Hz) |
3 |
| Inrush current limitation |
yes |
| Efficiency (nominal voltage 120 V AC / 60 Hz) |
88 |
| Efficiency (nominal voltage 230 V AC / 50 Hz) |
89.3 |
| External input protection |
≤ B-10 A / ≤ C-6 A |
| Derating |
3 (60...70 °C) |
| Mains buffering time (nominal voltage 120 V AC / 60 Hz) |
70 |
| Mains buffering time (nominal voltage 230 V AC / 50 Hz) |
70 |
| Input current (nominal voltage 120 V AC / 60 Hz) |
2.05 |
| Input current (nominal voltage 230 V AC / 50 Hz) |
1.23 |
| Power loss (nominal voltage 120 V AC / 60 Hz) |
16.6 |
| Power loss (nominal voltage 230 V AC / 50 Hz) |
14.6 |
| Integrated data decoupling |
yes |
| Back feeding protection |
35 |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Overload performance |
constant output current |
| Parallel connection of outputs possible |
no |
| Series connection of outputs possible |
no |
| Ambient temperature |
-25...70 |
| Note on ambient temperature |
| observe the free space for convection (see operating instructions) |
|
| Storage temperature |
-40...85 |
| Max. relative air humidity |
95; (IEC 60068-2-30) |
| Protection |
IP 20 |
| Degree of soiling |
2; (IEC 62103: conductive soiling not permitted) |
| EMC |
| EN 61000-6-1 | | | EN 61000-6-2 | | | EN 61000-6-4 | |
|
| Vibration resistance |
| IEC 60068-2-6 | ± 1,6 mm 2...17,8 Hz / 2 g 17,8...500 Hz |
|
| Shock resistance |
| IEC 60068-2-27 | 30 g 6 ms / 20 g 11 ms |
|
| MTTF |
90 |
| AS-i certificate |
98601 |
| Weight |
625.5 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
130.5 x 40 x 124.5 |
| Material |
steel sheet |
| Display |
|
| Pack quantity |
1 pcs. |
| Connection |
screw terminals: |
