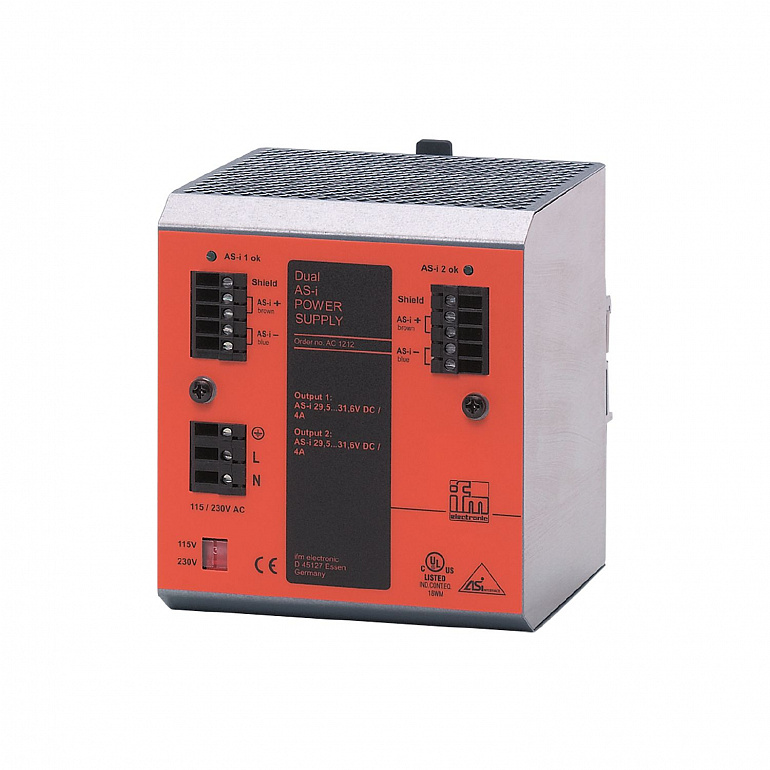

| Design |
housing for DIN rail mounting |
| Nominal voltage AC |
110 / 230 |
| Nominal frequency AC |
47...63 |
| Input voltage range AC |
88...132 / 184...264 |
| Max. power-on delay time |
500 |
| Output voltage AS-i |
29.5...31.6; (to PELV) |
| Number of output circuits |
2 |
| Output current AS-i |
4 |
| Max. residual ripple |
50 |
| External input protection |
> 10 A |
| Fuse |
8; (not accessible) |
| Derating |
1 (60...70 °C) |
| Power loss (nominal voltage 230 V AC / 50 Hz) |
30 |
| Power loss in open-circuit operation |
4 |
| Integrated data decoupling |
yes |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Parallel connection of outputs possible |
no |
| Series connection of outputs possible |
no |
| Ambient temperature |
-10...60 |
| Protection |
IP 20 |
| EMC |
| EN 60950/A2 1993 | | | EN 50081-1 | | | EN 61000-6-2 | |
|
| MTTF |
23 |
| AS-i certificate |
21901 |
| Weight |
1263.5 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
134 x 120 x 118.5 |
| Material |
aluminum |
| Display |
|
| Pack quantity |
1 pcs. |
| Connection |
terminals: ...2.5 mm² |
