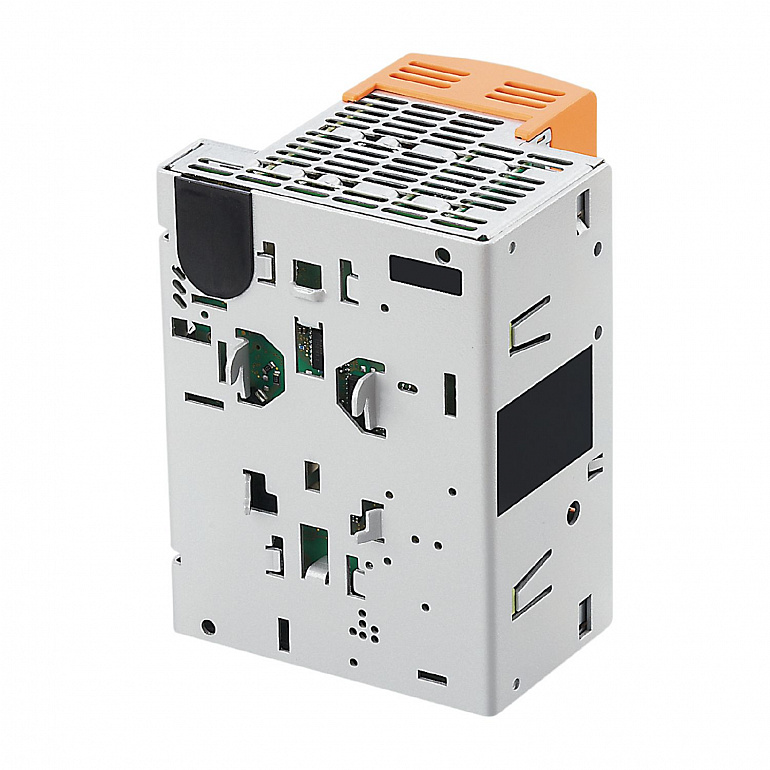

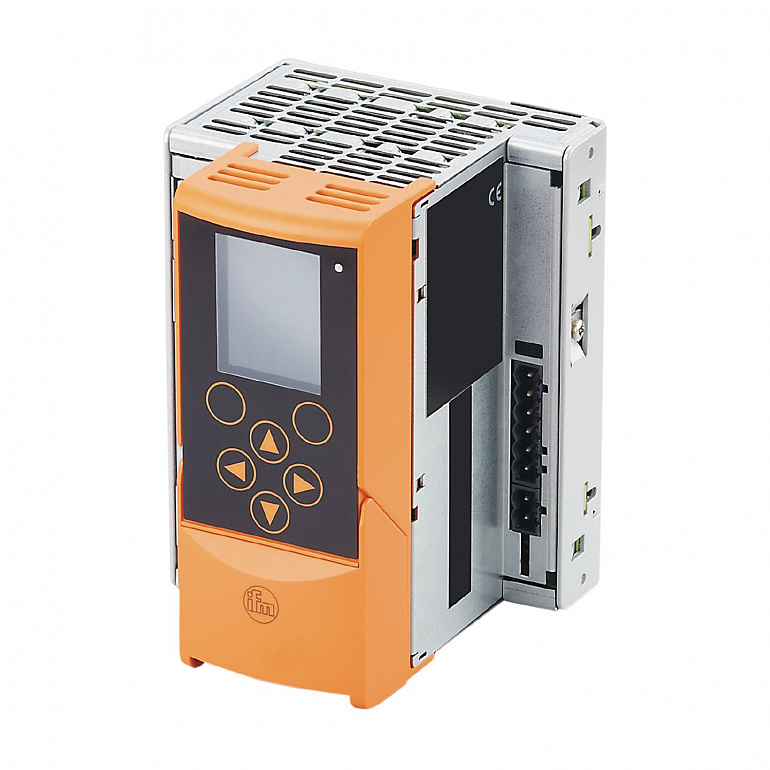

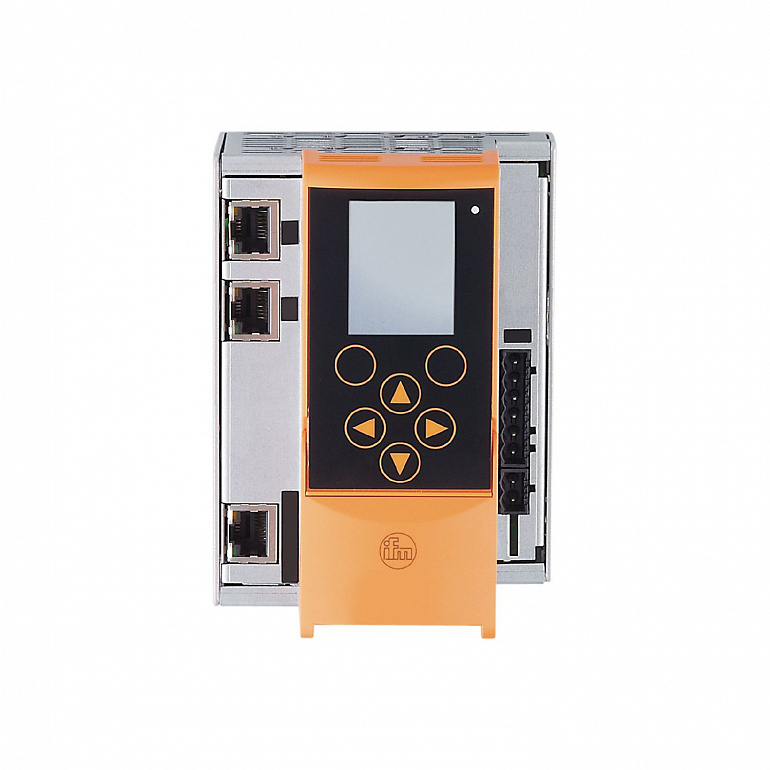

| Design |
housing for DIN rail mounting |
| Operating voltage |
18...32 DC; (AUX; AS-i: 21...31,6 V DC) |
| Current consumption |
< 500; (AUX / AS-i 1) |
| Max. current consumption from AS-i |
500; (with external supply: 10 mA) |
| Number of AS-i masters |
1 |
| Electrical separation |
yes |
| Voltage range DC |
to PELV |
| Communication interface |
Ethernet; OPC-UA |
| Protocol |
EtherCAT |
| Usage type |
Programming |
| Protocol |
EtherNet/IP |
| Usage type |
Programming |
| Transmission rate |
10 MBaud; 100 MBaud |
| Type of connector |
RJ45 |
| Protocol |
Modbus TCP |
| Usage type |
Programming |
| Transmission rate |
100 MBaud |
| Type of connector |
RJ45 |
| Protocol |
PROFINET |
| Usage type |
Data transmission |
| Note on interfaces |
|
| Transmission rate |
10 MBaud; 100 MBaud |
| Type of connector |
RJ45 |
| Protocol |
TCP/IP |
| Usage type |
Programming |
| Transmission rate |
10 MBaud; 100 MBaud |
| Type of connector |
RJ45 |
| Protocol |
UDP/IP |
| Usage type |
Programming |
| Ambient temperature |
0...60 |
| Storage temperature |
-20...70 |
| Protection |
IP 20 |
| MTTF |
43 |
| AS-i version |
3.0 |
| AS-i master profile |
M4 |
| AS-i certificate |
97301 |
| Weight |
725.5 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
135.5 x 93 x 106.2 |
| Material |
aluminum powder-coated; steel sheet galvanized; PC |
| Display |
| Function | 1 x LED, red/green | | full graphic LCD display |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |
| Connection |
terminals: ...2.5 mm² |
