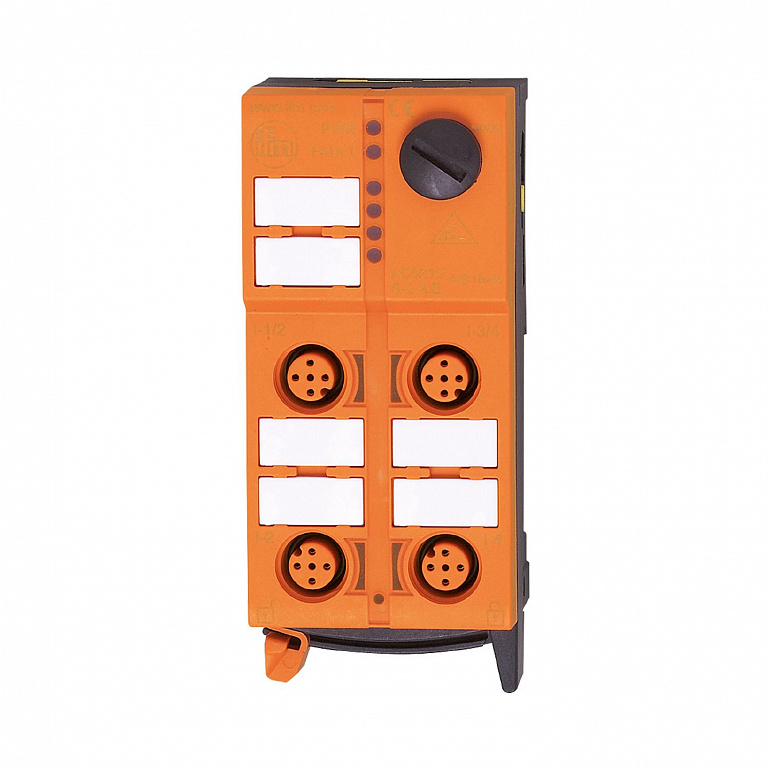

| Design |
housing for DIN rail mounting |
| Application |
field installation |
| Operating voltage |
26.5...31.6 DC; (cULus - Class 2 source required) |
| Max. current consumption from AS-i |
150 |
| Max. current load total |
4 |
| Integrated watchdog |
yes |
| Number of inputs and outputs |
Number of digital inputs: 2; Number of digital outputs: 2 |
| Number of digital inputs |
2 |
| Input circuit of digital inputs |
PNP |
| Sensor supply of the inputs |
AS-i |
| Voltage supply |
18...30; (via flat cable) |
| Max. total current rating of inputs |
100 |
| Input current High |
6...10 |
| Input current low |
0...2 |
| Switching level high |
> 11 |
| Digital inputs protected against short circuits |
yes |
| Number of digital outputs |
2 |
| Circuit |
PNP |
| Voltage range DC |
15...30; (to PELV; via flat cable) |
| Max. current load per output |
2000; (utilization category DC-13 (control of electromagnets): 40 W (IEC 60947-5-1)) |
| Short-circuit proof |
yes |
| Electrically separated |
yes |
| Actuator supply outputs |
AUX |
| Ambient temperature |
-25...70 |
| Protection |
IP 67 |
| EMC |
|
| AS-i version |
2.11; 3.0 |
| AS-i addressing |
Addressing socket |
| Extended addressing mode |
yes |
| AS-i master profile |
M2; M3; M4 |
| AS-i profile |
S-B.A.E |
| AS-i I/O configuration |
B |
| AS-i ID code |
A.E |
| Data bits |
| Data bit | D0 | D1 | D2 | D3 | | Input | - | - | 3 | 4 | | Socket | - | - | I-3/4 | I-3/4 I-4 | | Pin | - | - | 4 | 2 4 | | Output | 1 | 2 | - | - | | Socket | O-1/2 | O-1/2 / O-2 | - | - | | Pin | 4 | 2 4 | - | - |
|
| Weight |
187.5 |
| Housing |
rectangular |
| Type of mounting |
quick mounting; AS-i flat cable connection; Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
103 x 45 x 44.7 |
| Material |
PA; Piercing contacts: CuSn6 nickel-plated and tin-plated |
| Display |
| Power | LED, green | | errors | LED, red | | Function | LED, yellow |
|
|
quick mounting technology for AS-i flat cable: ; three selectable directions |
| Items supplied |
|
| Accessories (optional) |
| Protective cap: M12, E73004 |
|
| Remarks |
| Inputs and outputs must be electrically isolated. | | Do not connect any of the following points to an external potential: | | L-, L+, I-3/4, I-4 | | The connections are electrically connected with the AS-i cable. |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: M12 |
| Connection |
Connector: M12 |
