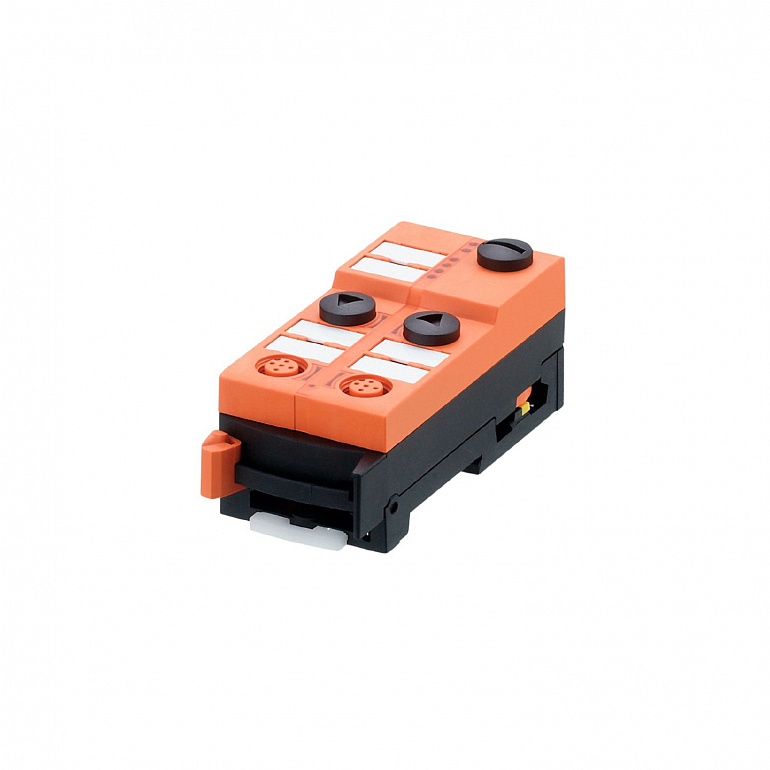

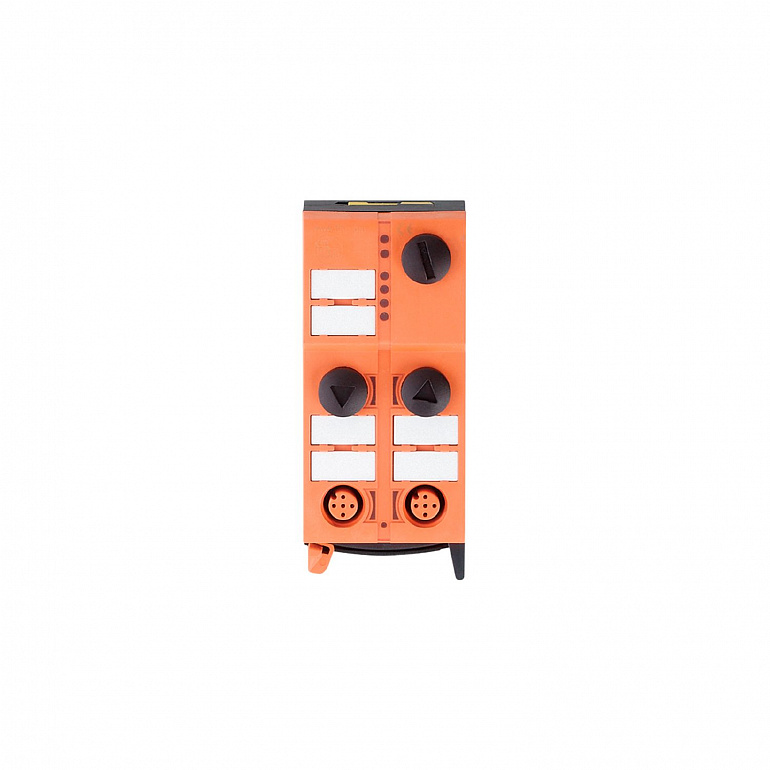

| Product characteristics |
|
| Number of inputs and outputs |
Number of analog inputs: 2 |
| Application |
|
| Design |
housing for DIN rail mounting |
| Application |
field installation |
| Electrical data |
|
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
250 |
| Reverse polarity protection |
yes |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of analog inputs: 2 |
| Inputs |
|
| Sensor supply of the inputs |
AS-i |
| Number of analog inputs |
2; (connection of 2- and 3-wire sensors) |
| Analog input (current) |
4...20 |
| Max. voltage drop across load for nominal voltage |
10 |
| Analog inputs protected against short circuits |
yes |
| Resolution of analog input |
12 bit |
| Accuracy / deviations |
|
| Accuracy |
0.5; (% of the final value of the measuring range; tolerance under the influence of electromagnetic interference: < ± 1 % of the final value of the measuring range) |
| Operating conditions |
|
| Ambient temperature |
-25...70 |
| Storage temperature |
-25...70 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 50295</td><td></td></tr></table> |
| MTTF |
174 |
| UL approval |
<table><tr><td>voltage supply</td><td>Class 2 </td></tr></table> |
| AS-i classification |
|
| AS-i version |
2.11; 3.0 |
| AS-i addressing |
Addressing socket |
| Extended addressing mode |
no |
| AS-i master profile |
M3; M4 |
| AS-i profile |
S-7.3.D |
| AS-i I/O configuration |
7 |
| AS-i ID code |
3.D |
| Mechanical data |
|
| Weight |
176 |
| Housing |
rectangular |
| Type of mounting |
quick mounting; AS-i flat cable connection; Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
103 x 45 x 44.7 |
| Material |
PA; Piercing contacts: CuSn6 nickel-plated and tin-plated |
| Displays / operating elements |
|
| Display |
<table><tr><td>analog signal</td><td>LED, yellow Channels AI1...AI2</td></tr><tr><td>Power</td><td>LED, green AS-i</td></tr><tr><td>errors</td><td>LED, red</td></tr></table> |
| Electrical connection |
|
| Accessories |
|
| Items supplied |
<table><tr><td>lower part</td></tr></table> |
| Accessories (optional) |
<table><tr><td>Protective cap: M12, E73004</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td> When the actuators are supplied from AS-i the load must not exceed a maximum of 200 mA.</td></tr><tr><td> There is an electrical connection between the sensor and AS-i.</td></tr><tr><td> The module is exclusively supplied via the yellow AS |
| Pack quantity |
1 pcs. |
