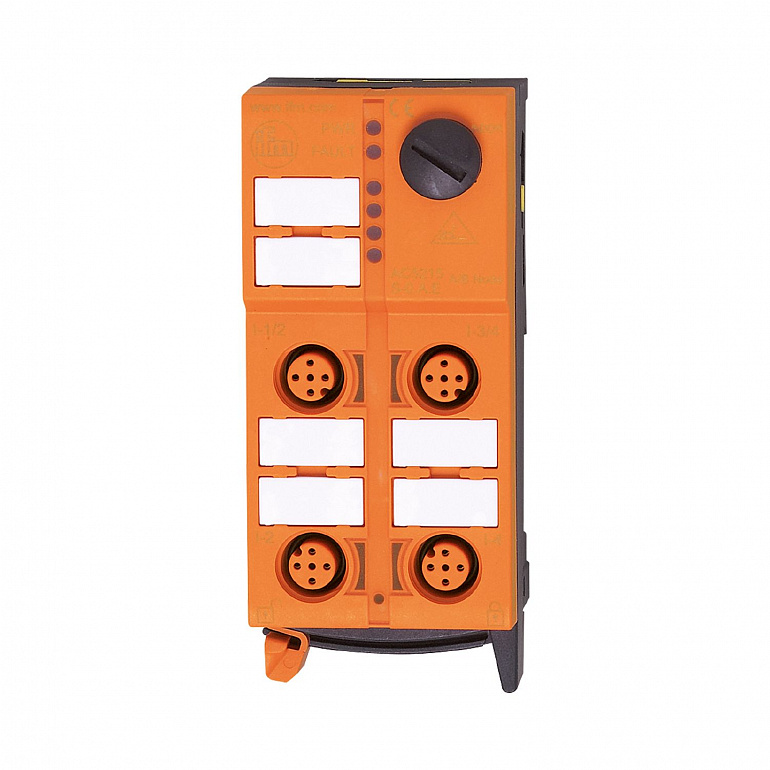

| Application |
|
| Design |
housing for DIN rail mounting |
| Application |
field installation |
| Electrical data |
|
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
250 |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital inputs: 4 |
| Inputs |
|
| Number of digital inputs |
4 |
| Input circuit of digital inputs |
PNP |
| Sensor supply of the inputs |
AS-i |
| Voltage supply |
18...30; (DC) |
| Max. total current rating of inputs |
200 |
| Input current High |
6...10 |
| Input current low |
0...2 |
| Switching level high |
> 11 |
| Digital inputs protected against short circuits |
yes |
| Operating conditions |
|
| Ambient temperature |
-25...70 |
| Protection |
IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 50295</td><td></td></tr><tr><td>IEC 61000-6-2</td><td></td></tr></table> |
| MTTF |
405 |
| AS-i classification |
|
| AS-i version |
2.11; 3.0 |
| AS-i addressing |
Addressing socket |
| Extended addressing mode |
yes |
| AS-i master profile |
M2; M3; M4 |
| AS-i profile |
S-0.A.E |
| AS-i I/O configuration |
0 |
| AS-i ID code |
A.E |
| Data bits |
<table><tr><td>Data bit</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td></tr><tr><td>Input</td><td>1</td><td>2</td><td>3</td><td>4</td></tr><tr><td>Socket</td><td>I-1/2</td><td>I-1/2 I-2</td><td>I-3/4</td><td>I-3/4 I-4</td></tr><tr><td>Pin</td><td>4</td>< |
| Mechanical data |
|
| Weight |
155.6 |
| Housing |
rectangular |
| Type of mounting |
AS-i flat cable connection; Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
103 x 45 x 44.7 |
| Material |
PA; Piercing contacts: CuSn6 nickel-plated and tin-plated |
| Displays / operating elements |
|
| Display |
<table><tr><td>Power</td><td>LED, green</td></tr><tr><td>errors</td><td>LED, red</td></tr><tr><td>Function</td><td>LED, yellow</td></tr></table> |
| Electrical connection |
|
| Connection |
Connector: M12 |
| Accessories |
|
| Items supplied |
<table><tr><td>lower part</td></tr></table> |
| Accessories (optional) |
<table><tr><td>Protective cap: M12, E73004</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td> Do not connect any of the following points to an external potential:</td></tr><tr><td> I-, I+, I-1/2, I-2, I-3/4, I-4</td></tr><tr><td> The connections are electrically connected with the AS-i cable.</td></tr><tr><td> cULus - Class 2 sourc |
| Pack quantity |
1 pcs. |
