| Application |
|
| Design |

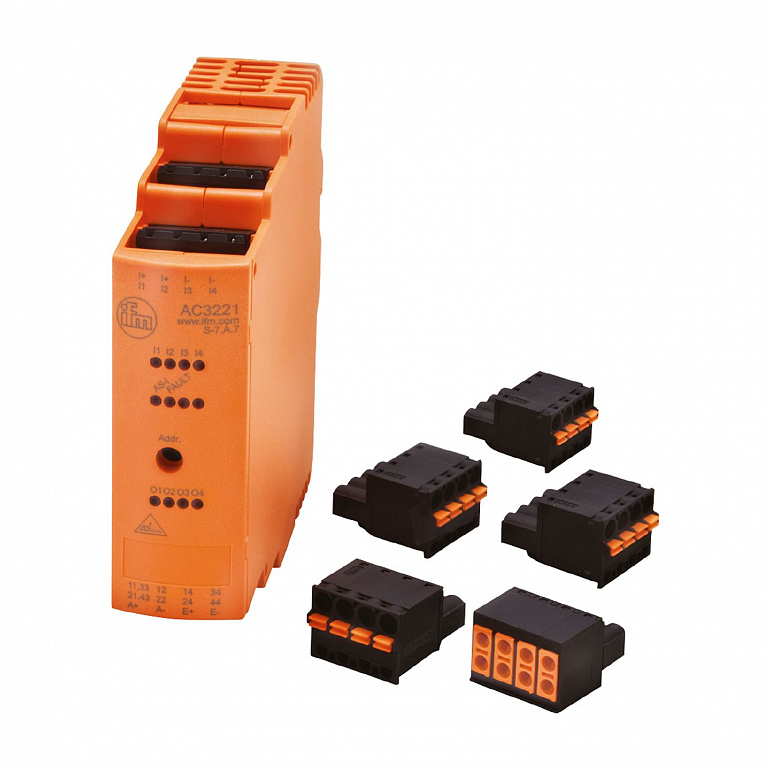

housing for DIN rail mounting, Only for operation with AS-i masters with the profile M4 |
| Application |
I/O modules for control cabinet installations |
| Electrical data |
|
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
300 |
| Integrated watchdog |
yes |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital inputs: 4; Number of relay outputs: 4 |
| Inputs |
|
| Number of digital inputs |
4 |
| Input circuit of digital inputs |
PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs |
AS-i |
| Voltage supply |
18...30; (DC) |
| Max. total current rating of inputs |
200 |
| Input current High |
6...10 |
| Input current low |
0...2 |
| Switching level high |
> 11 |
| Digital inputs protected against short circuits |
yes |
| Outputs |
|
| Voltage range DC |
24; (The outputs O1 + O3 and O2 + O4 must be supplied in pairs with the same voltage. 2 x 24 V DC) |
| Voltage range AC |
10...240; (The outputs O1 + O3 and O2 + O4 must be supplied in pairs with the same voltage. 2 x 240 V AC) |
| Max. current load per output |
6000; (resistive load) |
| Max. current load outputs total |
24; (resistive load) |
| Overall current rating for outputs (UL) |
6; (resistive load) |
| Number of relay outputs |
4 |
| Short-circuit proof |
no |
| Electrically separated |
yes |
| Operating conditions |
|
| Ambient temperature |
-25...65 |
| Note on ambient temperature |
<table><tr><td>the derating of the current load indicated in the operating instructions is to be taken into account at the following ambient temperature: > 55 °C</td></tr></table> |
| Storage temperature |
-25...75 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 20 |
| Protection rating terminals |
IP 20 |
| Degree of soiling |
2 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 62026-2</td><td></td></tr><tr><td>EN 61000-6-2</td><td></td></tr><tr><td>EN 61000-6-3</td><td></td></tr></table> |
| MTTF |
295 |
| AS-i classification |
|
| AS-i version |
3.0 |
| AS-i addressing |
Addressing socket |
| Extended addressing mode |
yes |
| AS-i master profile |
M4 |
| AS-i profile |
S-7.A.7 |
| AS-i I/O configuration |
7 |
| AS-i ID code |
A.7 |
| AS-i ID1 code |
7; (fixed) |
| AS-i certificate |
124301 |
| Data bits |
<table><tr><td>Data bit</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td></tr><tr><td>Input</td><td>I-1</td><td>I-2</td><td>I-3</td><td>I-4</td></tr><tr><td>Output</td><td>O-1</td><td>O-2</td><td>O-3</td><td>O-4</td></tr></table> |
| Mechanical data |
|
| Weight |
216.05 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
123.2 x 25.4 x 108 |
| Material |
plastics; PC-GF20 |
| Displays / operating elements |
|
| Display |
<table><tr><td>Switching status</td><td>LED, yellow I1...I4, O1...O4</td></tr><tr><td>Power</td><td>LED, green AS-i</td></tr><tr><td>errors</td><td>LED, red</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>cage clamps</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td> Do not connect any of the following points to an external potential:</td></tr><tr><td> I-, I+, I1, I2, I3, I4</td></tr><tr><td> The connections are electrically connected with the AS-i cable.</td></tr></table> |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
pin headers: 4 x ; Spacing: 5.0 mm |
