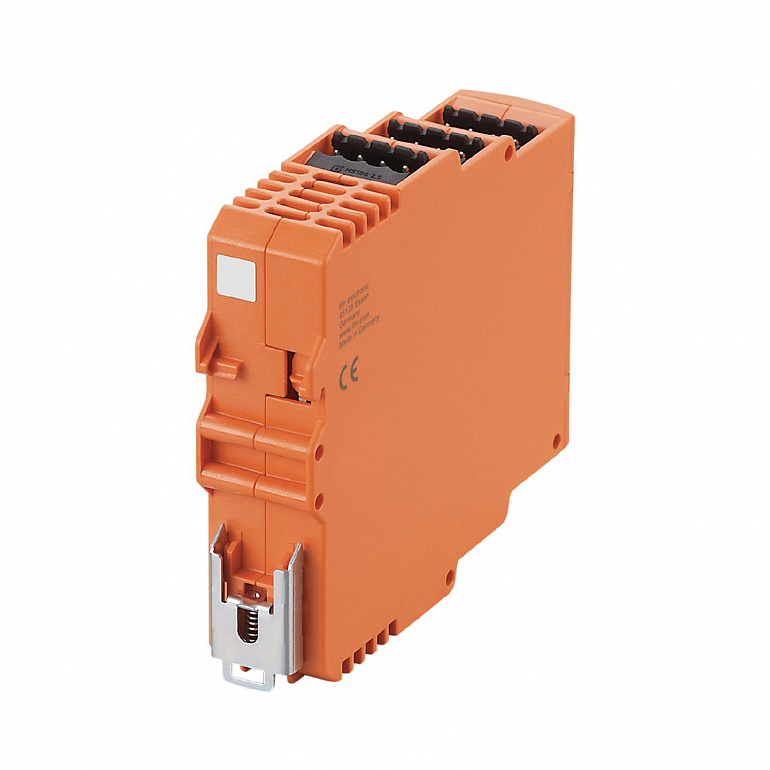

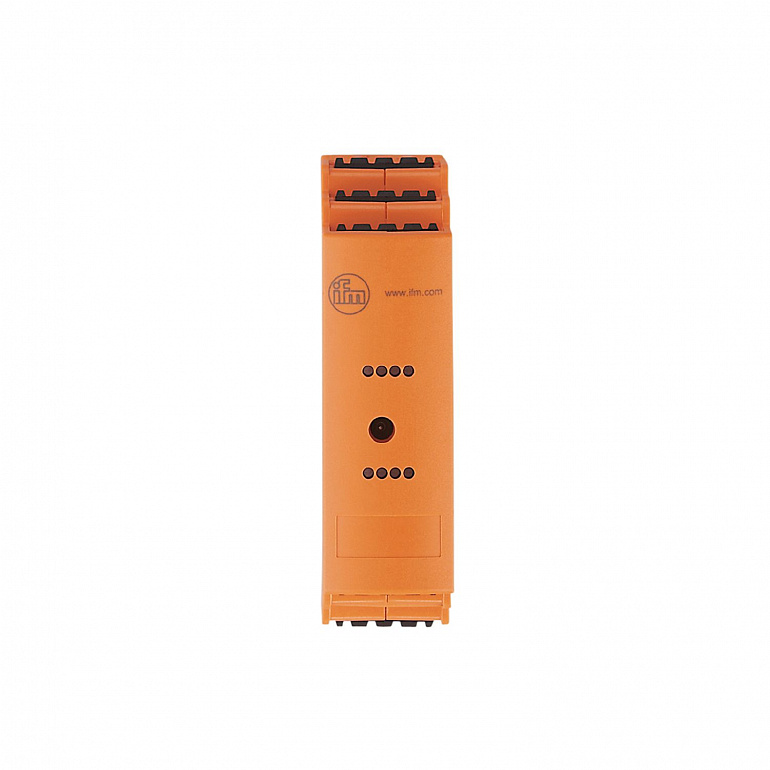

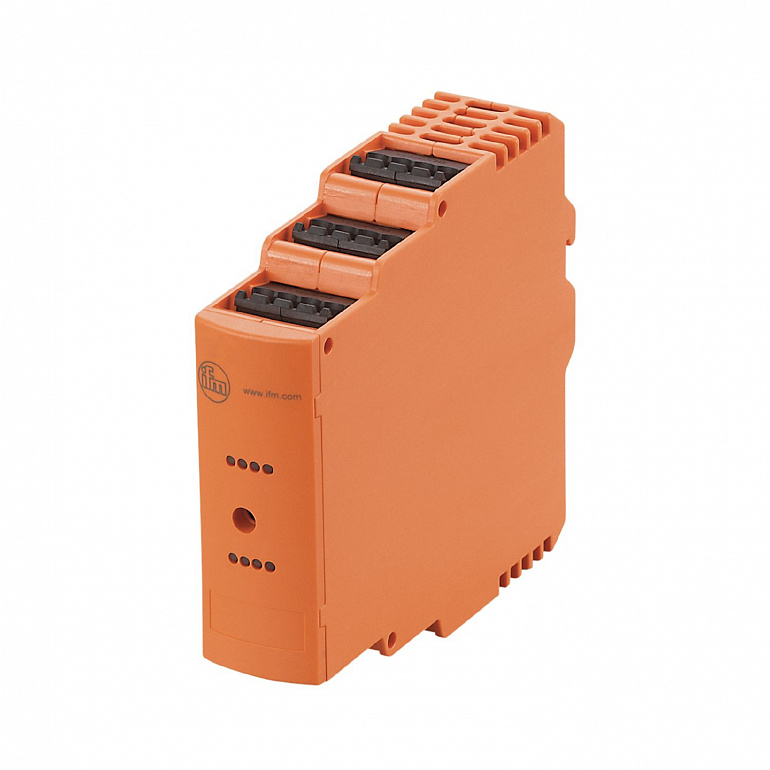

| Design |
housing for DIN rail mounting |
| Application |
I/O modules for control cabinet installations |
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
157 |
| Reverse polarity protection |
yes |
| Additional voltage supply |
optional |
| Max. current consumption from additional supply |
550; (AUX) |
| Number of inputs and outputs |
Number of analog outputs: 4 |
| Number of analog outputs |
4; (connection of 2-wire or 4-wire actuator) |
| Analog current output |
0...20 |
| Max. load |
600 |
| Max. voltage drop across load for nominal current |
10 |
| Overload protection |
yes |
| Resolution of analog output |
16 (1 bit = 1 µA) |
| Actuator supply outputs |
AS-i / AUX |
| Ambient temperature |
0...70 |
| Storage temperature |
-25...75 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 20 |
| Protection rating terminals |
IP 20 |
| Degree of soiling |
2 |
| EMC |
|
| UL approval |
|
| AS-i version |
2.11; 3.0 |
| AS-i addressing |
Addressing socket |
| Extended addressing mode |
no |
| AS-i master profile |
M3; M4 |
| AS-i profile |
S-7.3.6 |
| AS-i I/O configuration |
7 |
| AS-i ID code |
3.6 |
| Weight |
202.1 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
126 x 25.4 x 108 |
| Material |
PC-GF20 |
| Display |
| analog signal | LED, yellow Channels AO1...AO4 | | diagnosis | LED, yellow | | Power | LED, green AS-i, AUX | | errors | LED, red |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |
| Connection |
pin headers: 4 x ; Spacing: 5.0 mm |
