| Application |
|
| Design |

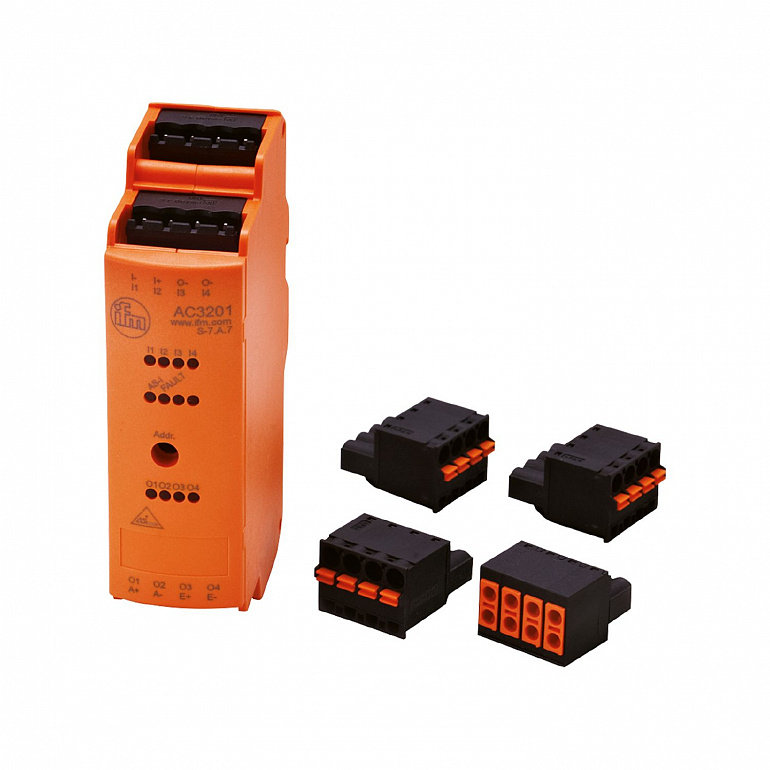

housing for DIN rail mounting, Only for operation with AS-i masters with the profile M4 |
| Application |
I/O modules for control cabinet installations |
| Electrical data |
|
| Operating voltage |
18...31.6 DC |
| Max. current consumption from AS-i |
250 |
| Additional voltage supply |
20...30 DC; (AUX) |
| Max. current consumption from additional supply |
4000; (AUX) |
| Integrated watchdog |
yes |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital inputs: 4; Number of digital outputs: 4 |
| Inputs |
|
| Number of digital inputs |
4 |
| Input circuit of digital inputs |
PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs |
AS-i |
| Voltage supply |
18...30; (DC) |
| Max. total current rating of inputs |
200 |
| Input current High |
6...10 |
| Input current low |
0...2 |
| Switching level high |
> 11 |
| Digital inputs protected against short circuits |
yes |
| Outputs |
|
| Number of digital outputs |
4 |
| Circuit |
PNP |
| Voltage range DC |
20...30; (AUX) |
| Max. current load per output |
1000; (utilization category DC-12: 700 mA; utilization category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1)) |
| Max. current load outputs total |
4 |
| Short-circuit proof |
yes |
| Electrically separated |
yes |
| Actuator supply outputs |
AUX |
| Operating conditions |
|
| Ambient temperature |
-25...60 |
| Note on ambient temperature |
<table><tr><td>the derating of the current load indicated in the operating instructions is to be taken into account at the following ambient temperature: > 40 °C</td></tr></table> |
| Storage temperature |
-25...75 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 20 |
| Protection rating terminals |
IP 20 |
| Degree of soiling |
2 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 62026-2</td><td></td></tr><tr><td>EN 61000-6-2</td><td></td></tr><tr><td>EN 61000-6-3</td><td></td></tr></table> |
| MTTF |
261 |
| Notes |
The device shall be supplied from an isolating source.; This voltage source must have a secondary UL-listed fuse (see enclosed sheet).; Alternatively, a class 2 power supply can be used to supply AUX. |
| AS-i classification |
|
| AS-i version |
3.0 |
| AS-i addressing |
Addressing socket |
| Extended addressing mode |
yes |
| AS-i master profile |
M4 |
| AS-i profile |
S-7.A.7 |
| AS-i I/O configuration |
7 |
| AS-i ID code |
A.7 |
| AS-i ID1 code |
7; (fixed) |
| AS-i certificate |
124401 |
| Data bits |
<table><tr><td>Data bit</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td></tr><tr><td>Input</td><td>I-1</td><td>I-2</td><td>I-3</td><td>I-4</td></tr><tr><td>Output</td><td>O-1</td><td>O-2</td><td>O-3</td><td>O-4</td></tr></table> |
| Mechanical data |
|
| Weight |
136.5 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
129.3 x 25.4 x 59.3 |
| Material |
plastics; PC-GF20 |
| Displays / operating elements |
|
| Display |
<table><tr><td>Switching status</td><td>LED, yellow I1...I4, O1...O4</td></tr><tr><td>Power</td><td>LED, green AS-i, AUX</td></tr><tr><td>errors</td><td>LED, red</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>cage clamps</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td> Do not connect any of the following points to an external potential:</td></tr><tr><td> I-, I+, I1, I2, I3, I4</td></tr><tr><td> The connections are electrically connected with the AS-i cable.</td></tr></table> |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
pin headers: 4 x ; Spacing: 5.0 mm |
