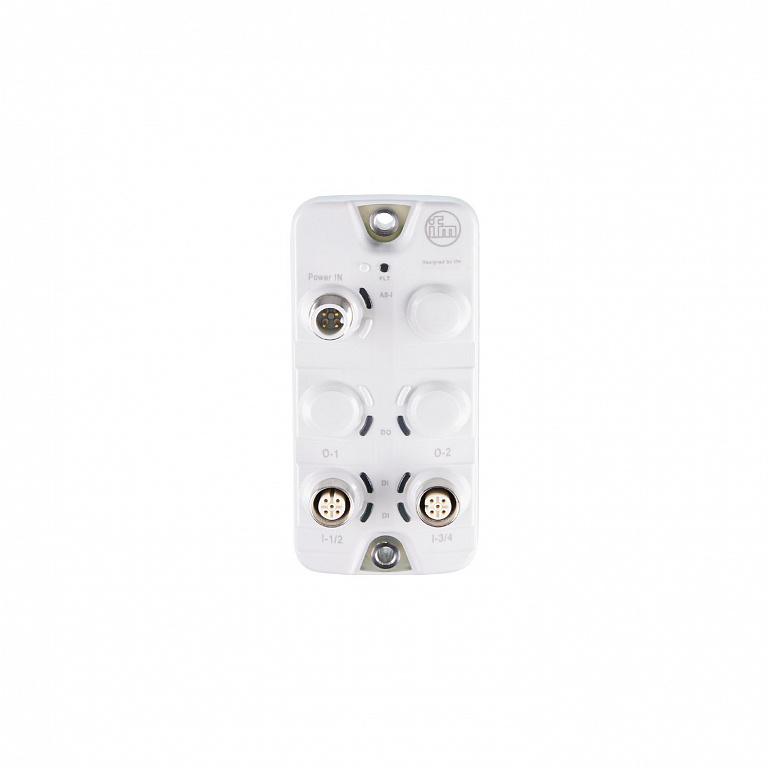

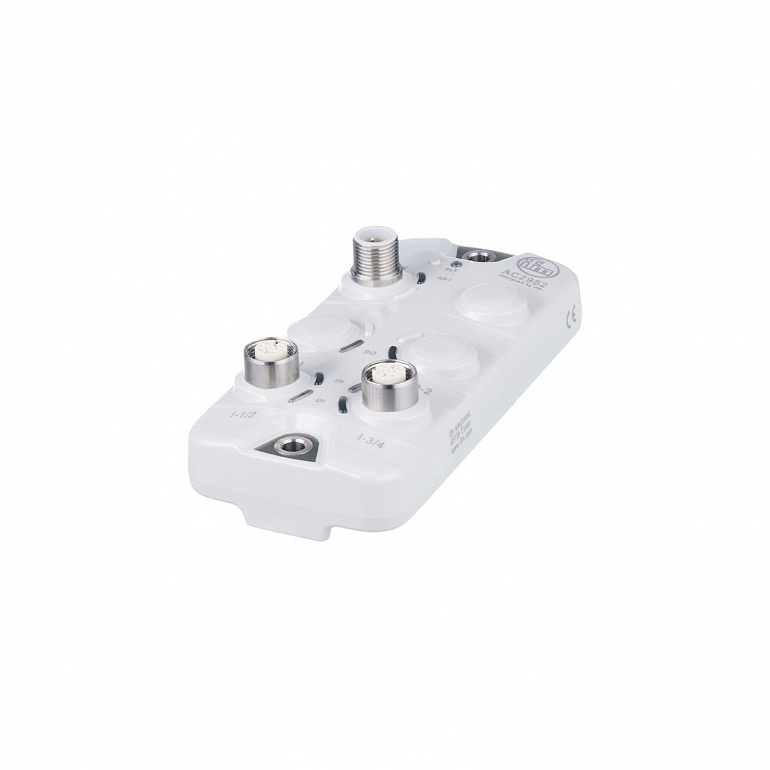

| Application |
sanitary and wet areas in the food industry |
| Operating voltage |
18...31.6 DC |
| Max. current consumption from AS-i |
250 |
| Protection class |
III |
| Max. current load total |
180; (total current for all inputs and outputs supplied from AS-i) |
| Integrated watchdog |
yes |
| Number of inputs and outputs |
Number of digital inputs: 4; Number of digital outputs: 2 |
| Number of digital inputs |
4 |
| Input circuit of digital inputs |
PNP |
| Sensor supply of the inputs |
AS-i |
| Voltage supply |
18...30 |
| Max. total current rating of inputs |
180 |
| Input current High |
2...4 |
| Input current low |
0...1.5 |
| Switching level high |
> 11 |
| Digital inputs protected against short circuits |
yes |
| Number of digital outputs |
2 |
| Circuit |
PNP |
| Voltage range DC |
15...30 |
| Max. current load per output |
100 |
| Max. current load outputs total |
0.18 |
| Short-circuit proof |
yes |
| Electrically separated |
yes |
| Actuator supply outputs |
AS-i |
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
4000 |
| Protection |
IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Degree of soiling |
2 |
| Chemical media |
| ISO 16750-5 | HLP, CC, DB, DC, DD, CA | | NEMA 250 5.13.1 | AA |
|
| EMC |
| EN 62026-2 | | | EN 61000-6-2 | | | EN 61000-6-3 | | | IEC 61131-2 Type 3 | |
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-6 | | | DIN EN 60068-2-64 | |
|
| MTTF |
178 |
| UL approval |
|
| AS-i version |
2.11; 3.0 |
| Extended addressing mode |
yes |
| AS-i profile |
S-7.A.E |
| AS-i I/O configuration |
0 |
| AS-i ID code |
A.E |
| Data bits |
| Data bit | D0 | D1 | D2 | D3 | | Input | 1 | 2 | 3 | 4 | | Socket | I-1/2 | I-1/2 | I-3/4 | I-3/4 | | Pin | 4 | 2 | 4 | 2 | | Output | 1 | 2 | - | - | | Socket | O-1 | O-2 | - | - | | Pin | 4 | 4 | - | - |
|
| Weight |
232.6 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
124 x 59.3 x 38.4 |
| Material |
housing: PA grey; Connectors: stainless steel (1.4404 / 316L); sealing: EPDM |
| Display |
| Switching status | LED, yellow IN1...IN4; OUT1...OUT2 | | Power | LED, green AS-i | | error | LED, red |
|
| Remarks |
| Do not connect any of the following points to an external potential: | | L-; L+; IN1; IN2; IN3; IN4 | | The connections are electrically connected with the AS-i cable. |
|
| Pack quantity |
1 pcs. |
|
Connector: M12; coding: A |
| I-1/2 / O-1 |
Connector: M12; coding: A |
