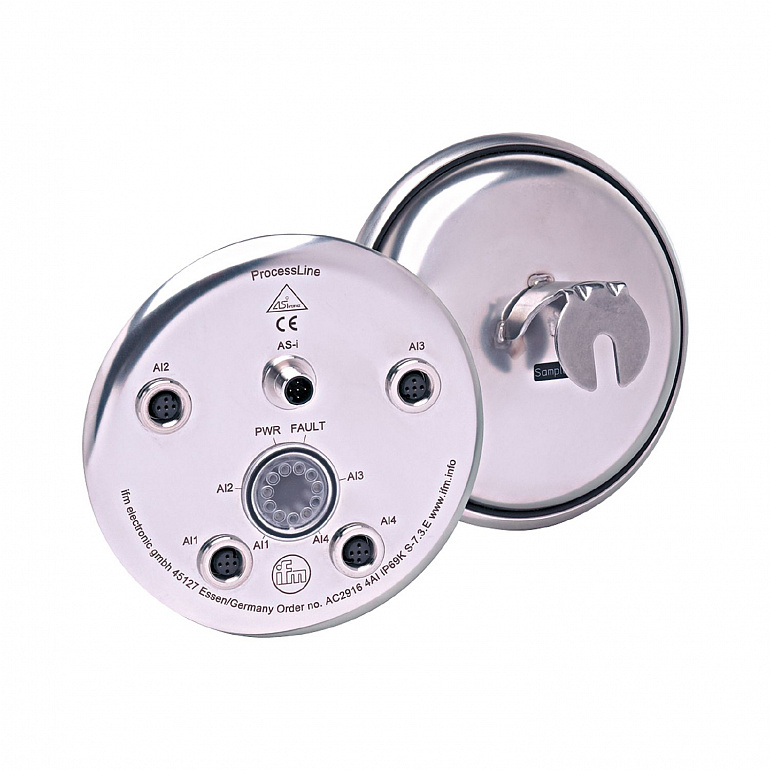

| Application |
|
| Application |
sanitary and wet areas in the food industry |
| Electrical data |
|
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
450 |
| Reverse polarity protection |
yes |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of analog inputs: 4 |
| Inputs |
|
| Sensor supply of the inputs |
AS-i |
| Voltage supply |
18...30 |
| Number of analog inputs |
4; (connection of 2- and 3-wire sensors) |
| Analog input (current) |
4...20 |
| Max. voltage drop across load for nominal voltage |
10 |
| Resolution of analog input |
1 bit = 1 µA |
| Precision analog input |
0,5 |
| Operating conditions |
|
| Ambient temperature |
-5...70 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90; (linearly decreasing to 50 % (40 °C) non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 68; IP 69K |
| Degree of soiling |
2 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 62026-2</td><td></td></tr><tr><td>EN 61000-6-2</td><td></td></tr></table> |
| MTTF |
98 |
| AS-i classification |
|
| AS-i version |
2.11; 3.0 |
| Extended addressing mode |
no |
| AS-i master profile |
M3; M4 |
| AS-i profile |
S-7.3.E |
| AS-i I/O configuration |
7 |
| AS-i ID code |
3.E |
| AS-i certificate |
101108 |
| Mechanical data |
|
| Weight |
607 |
| Housing |
tubular |
| Type of mounting |
Mounting base |
| Dimensions |
Ø 137.3 / L = 80 |
| Material |
threaded bush: stainless steel (1.4404 / 316L); LED-Fenster: PC; O-ring: EPDM; Protective cap: PP |
| Displays / operating elements |
|
| Display |
<table><tr><td>analog signal</td><td>LED, yellow Channels AI1...AI4</td></tr><tr><td>Power</td><td>LED, green AS-i</td></tr><tr><td>errors</td><td>LED, red</td></tr></table> |
| Electrical connection |
|
| Module connection |
M12 |
| Accessories |
|
| Accessories (optional) |
<table><tr><td>Protective cap: M12, E70297</td></tr><tr><td>Flat cable insulation displacement connector:, E70455</td></tr><tr><td>Torque wrench:, E70390</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td> When the sensors and actuators are supplied from AS-i the load must not exceed a maximum of 380 mA.</td></tr><tr><td> The load for an individual sensor connection must not exceed 200 mA.</td></tr><tr><td> There is an electrical connection |
| Pack quantity |
1 pcs. |
| Electrical connection - AS-i |
|
| Electrical connection - Process connection |
|
