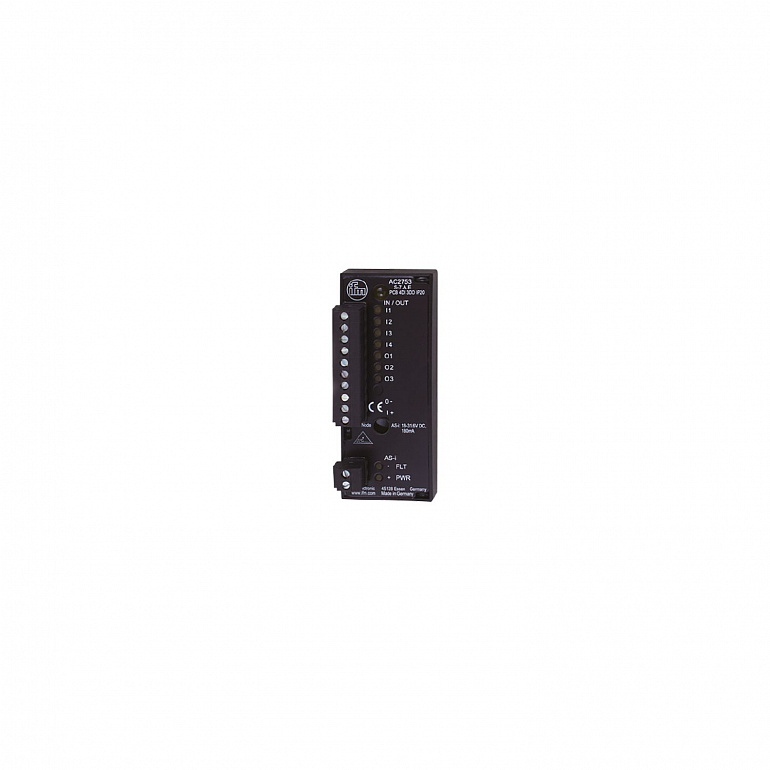

| Application |
For integration of mechanical switches into AS-i networks |
| Operating voltage |
18...31.6 DC |
| Max. current consumption from AS-i |
180; (without sensors: < 30 mA; inputs and outputs active: < 180 mA) |
| Protection class |
III |
| Max. current load total |
0.15; (total current for all inputs and outputs supplied from AS-i: 150 mA) |
| Integrated watchdog |
yes |
| Number of inputs and outputs |
Number of digital inputs: 4; Number of digital outputs: 3 |
| Number of digital inputs |
4 |
| Input circuit of digital inputs |
PNP |
| Sensor supply of the inputs |
AS-i |
| Voltage supply |
18...30; (DC) |
| Max. total current rating of inputs |
150 |
| Input current High |
6...10 |
| Input current low |
0...2 |
| Switching level high |
> 11 |
| Digital inputs protected against short circuits |
yes |
| Electrical design |
PNP |
| Number of digital outputs |
3 |
| Circuit |
PNP |
| Voltage range DC |
18...30; (DC) |
| Max. current load per output |
100; (utilization category DC-13 (control of electromagnets): 2,5 W (IEC 60947-5-1)) |
| Max. current load outputs total |
0.15 |
| Short-circuit proof |
yes |
| Electrically separated |
yes |
| Actuator supply outputs |
AS-i |
| Ambient temperature |
-25...55 |
| Protection |
IP 20 |
| EMC |
|
| AS-i version |
3.0 |
| Extended addressing mode |
yes |
| AS-i master profile |
M2; M3; M4 |
| AS-i profile |
S-7.A.E |
| AS-i I/O configuration |
7 |
| AS-i ID code |
A.E |
| AS-i certificate |
102401 |
| Weight |
68 |
| Housing |
rectangular |
| Type of mounting |
Installation in a surface-mounted housing |
| Dimensions |
31.1 x 76.6 x 12 |
| Material |
housing: PC potted |
| Display |
| Power | LED, green | | errors | LED, red | | Function | LED, yellow |
|
| Remarks |
| A watchdog function switches the outputs off if there is no communication on the AS-i line. | | Install the unit so that exposed parts cannot be touched. | | Installation in a surface-mounted housing with the dimensions of 68 x 136 x 53 mm (LxWxH), e.g. Schneider Electric Harmony XALD03, XALD04 | | Do not connect any of the following points to an external potential: | | 0-, I+, I1, I2, I3, I4 | | The connections are electrically connected with the AS-i cable. | | Can be used up to a height of 2000 metres above sea level |
|
| Pack quantity |
1 pcs. |
|
screw terminals: |
