| Application |
|
| Application |
For integration of mechanical switches into AS-i networks |
| Electrical data |
|
| Operating voltage |
26.5...31.6 DC |
| Current consumption |
< 200 |
| Max. current load total |
0.18; (total current for all inputs and outputs supplied from AS-i: 180 mA) |
| Integrated watchdog |
yes |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital inputs: 4; Number of digital outputs: 3 |
| Inputs |
|
| Number of digital inputs |
4 |
| Input circuit of digital inputs |
PNP |
| Sensor supply of the inputs |
AS-i |
| Voltage supply |
20...30; (DC) |
| Digital inputs protected against short circuits |
yes |
| Outputs |
|
| Electrical design |
PNP |
| Number of digital outputs |
3 |
| Voltage range DC |
18...30; (DC) |
| Max. current load per output |
100; (note current load for all inputs and outputs ) |
| Short-circuit proof |
yes |
| Actuator supply outputs |
AS-i |
| Operating conditions |
|
| Ambient temperature |
-25...70 |
| Protection |
IP 20 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 50295</td><td></td></tr></table> |
| AS-i classification |
|
| AS-i version |
2.1 |
| Extended addressing mode |
yes |
| AS-i master profile |
M2; M3; M4 |
| AS-i profile |
S-7.A.F |
| AS-i I/O configuration |
7 |
| AS-i ID code |
A.F |
| Data bits |
<table><tr><td>Data bit</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td></tr><tr><td>Input</td><td>I-1</td><td>I-2</td><td>I-3</td><td>I-4</td></tr><tr><td>Output</td><td>O-1</td><td>O-2</td><td>O-3</td><td>-</td></tr></table> |
| Mechanical data |
|
| Weight |
80 |
| Housing |
rectangular |
| Dimensions |
88 x 41 x 16 |
| Material |
housing: plastics potted |
| Remarks |
|
| Remarks |

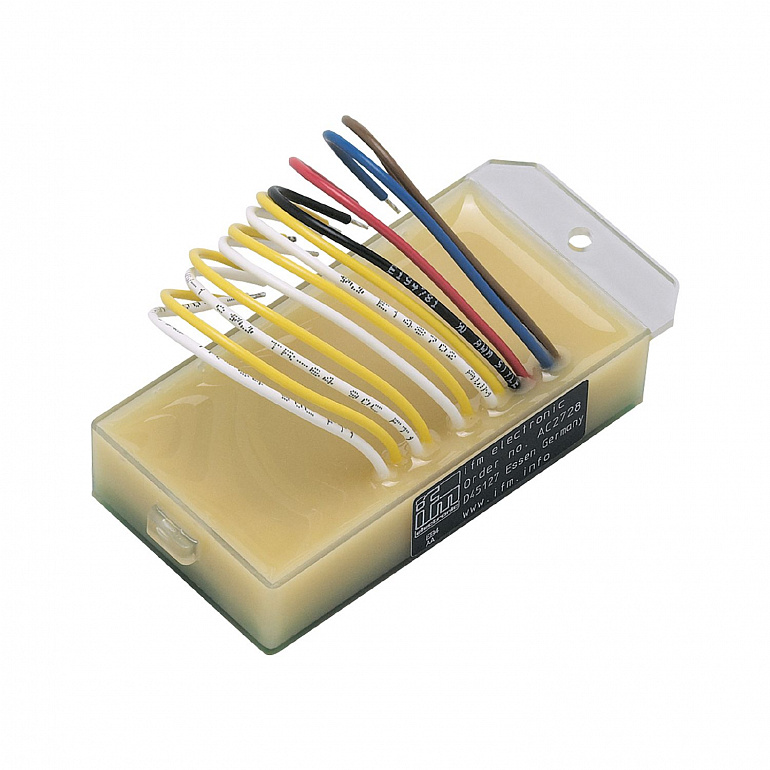

<table><tr><td> The AS-i module is a PCB solution for an AS-i slave, supply via AS-i.</td></tr><tr><td> A watchdog function switches the outputs off if there is no communication on the AS-i line.</td></tr></table> |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
