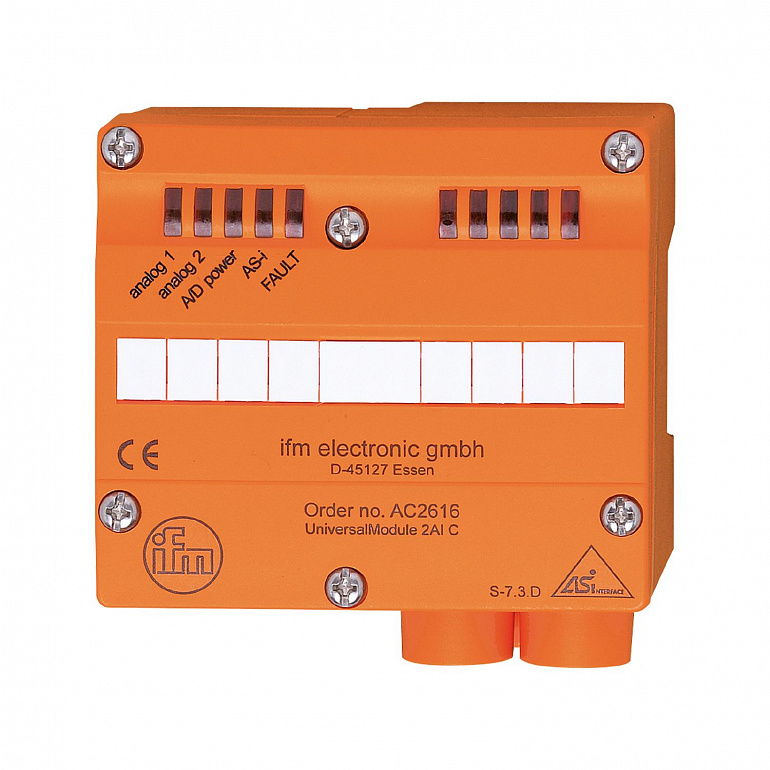

| Application |
field installation |
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
140 |
| Reverse polarity protection |
yes |
| Additional voltage supply |
optional |
| Max. current consumption from additional supply |
550; (AUX) |
| Number of inputs and outputs |
Number of analog inputs: 2 |
| Sensor supply of the inputs |
AS-i / AUX |
| Max. total current rating of inputs |
100 |
| Number of analog inputs |
2; (Anschluss von 2-, 3-, 4-Draht-Sensoren) |
| Analog input (voltage) |
0...10 |
| Analog inputs protected against short circuits |
no |
| Resolution of analog input |
16 (1 bit = 1 mV) |
| Precision analog input |
0,5 |
| Ambient temperature |
0...70 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 65 |
| EMC |
|
| MTTF |
140 |
| AS-i master profile |
M3; M4 |
| AS-i profile |
S-7.3.D |
| AS-i I/O configuration |
7 |
| AS-i ID code |
3.D |
| Parameter bits |
| Parameter bit | Description | | | | | | | P0 | filter in the A/D converter | : 1 | 50 Hz | * / 0 | 60 Hz | | | P1 | channel | 2: 1 | projected | / 0 | not projected | | | P2 | peripheral fault | : 1 | activated | / 0 | disabled | | | P3 | not used | : 1 | reserved | / 0 | not reserved | |
|
| Weight |
289.5 |
| Housing |
rectangular |
| Type of mounting |
AS-i interface to FC-E lower parts |
| Dimensions |
102 x 91 x 71 |
| Material |
PBT |
| Display |
| analog signal | LED, yellow Channels AI1...AI2 | | Power | LED, green AS-i, AUX | | errors | LED, red |
|
| Connection |
cage clamps: |
| Pack quantity |
1 pcs. |
