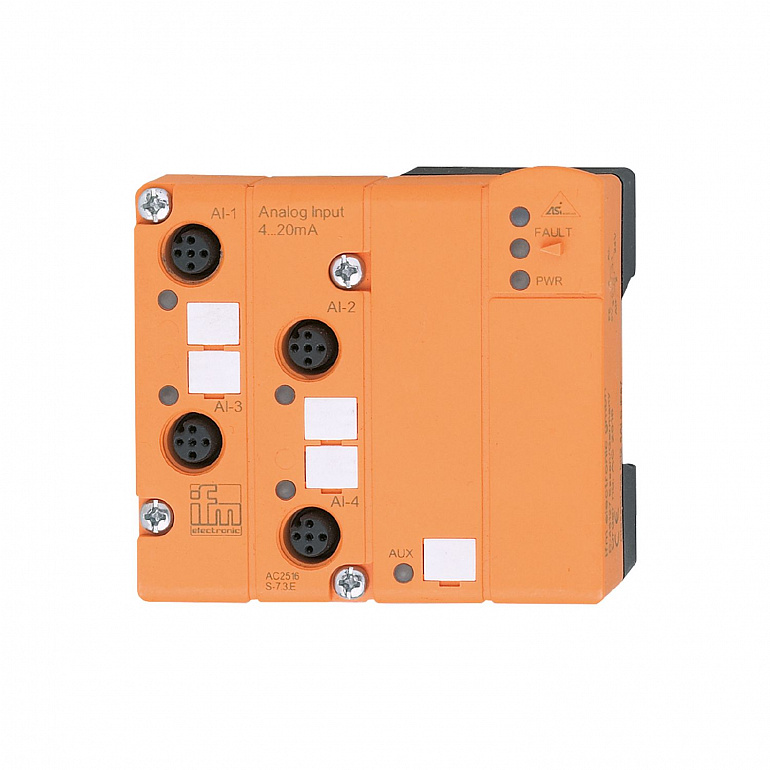

| Application |
field installation |
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
157 |
| Reverse polarity protection |
yes |
| Additional voltage supply |
optional |
| Max. current consumption from additional supply |
550; (AUX) |
| Number of inputs and outputs |
Number of analog inputs: 4 |
| Max. total current rating of inputs |
100 |
| Number of analog inputs |
4; (connection of 2-wire, 3-wire and 4-wire sensors) |
| Analog input (current) |
4...20 |
| Analog inputs protected against short circuits |
no |
| Resolution of analog input |
16 (1 bit = 1 µA) |
| Precision analog input |
0,5 |
| Ambient temperature |
0...70 |
| Storage temperature |
-20...85 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 67 |
| EMC |
| EN 50295 | | | EN 61000-6-4 | : 2001 | | EN 61000-6-2 | : 2001 |
|
| MTTF |
115 |
| AS-i addressing |
Addressing socket; IR addressing possible |
| AS-i master profile |
M3; M4 |
| AS-i profile |
S-7.3.E |
| AS-i I/O configuration |
7 |
| AS-i ID code |
3.E |
| Weight |
222 |
| Housing |
rectangular |
| Type of mounting |
AS-i interface to FC/FC-E lower parts |
| Dimensions |
83 x 90 x 44 |
| Material |
PBT |
| Tightening torque |
0.6...0.8 |
| Display |
| analog signal | LED, yellow Channels AI1...AI4 | | diagnosis | LED, yellow | | Power | LED, green AS-i, AUX | | errors | LED, red |
|
|
Connector: M12; coding: A |
| Accessories (optional) |
|
| Pack quantity |
1 pcs. |
