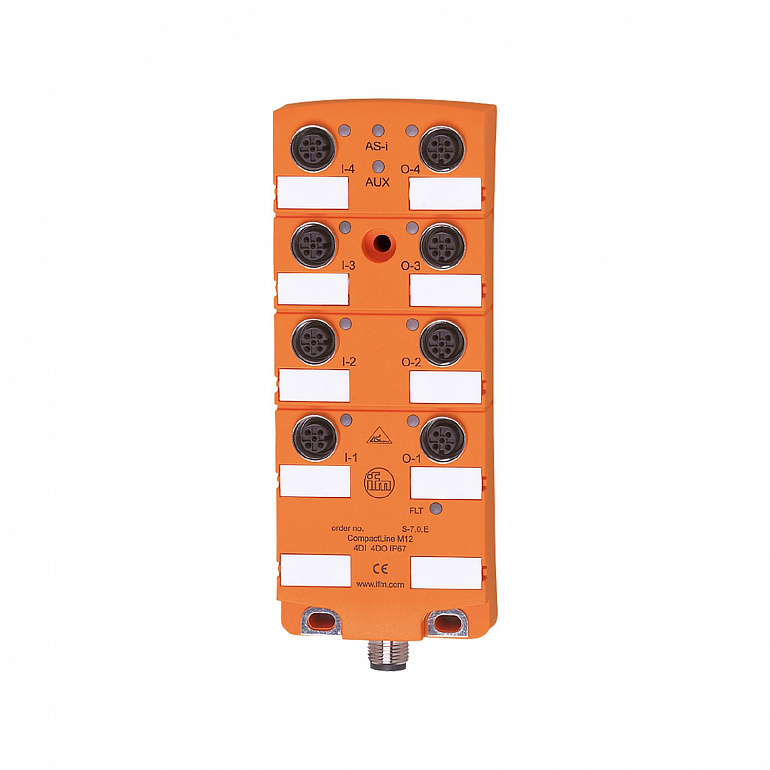

| Application |
field installation |
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
250 |
| Max. current load total |
4 |
| Additional voltage supply |
10...30 DC; (AUX) |
| Max. current consumption from additional supply |
4000; (AUX) |
| Integrated watchdog |
yes |
| Number of inputs and outputs |
Number of digital inputs: 4; Number of digital outputs: 4 |
| Number of digital inputs |
4 |
| Input circuit of digital inputs |
PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs |
AS-i |
| Voltage supply |
20...30; (DC) |
| Max. total current rating of inputs |
200 |
| Input current limitation |
15 |
| Input current High |
6...10 |
| Input current low |
0...2 |
| Switching level high |
> 11 |
| Digital inputs protected against short circuits |
yes |
| Number of digital outputs |
4 |
| Circuit |
PNP |
| Voltage range DC |
10...30; (AUX) |
| Max. current load per output |
2000; (utilization category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1)) |
| Max. current load outputs total |
4 |
| Short-circuit proof |
yes |
| Electrically separated |
yes |
| Actuator supply outputs |
AUX |
| Ambient temperature |
-25...80 |
| Storage temperature |
-25...80 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 67; (when flat cables are used E7400x / E7401x) |
| EMC |
| EN 61000-6-2 | | | EN 62026-2 | | | EN 50581 | |
|
| MTTF |
193 |
| UL approval |
|
| AS-i version |
2.11; 3.0 |
| AS-i addressing |
IR addressing possible |
| Extended addressing mode |
no |
| AS-i master profile |
M2; M3; M4 |
| AS-i profile |
S-7.0.E |
| AS-i I/O configuration |
7 |
| AS-i ID code |
0.E |
| AS-i certificate |
46001 |
| Data bits |
| Data bit | D0 | D1 | D2 | D3 | | Input | 1 | 2 | 3 | 4 | | Socket | I-1 | I-2 | I-3 | I-4 | | Pin | 2+4 | 2+4 | 2+4 | 2+4 | | Output | 1 | 2 | 3 | 4 | | Socket | O-1 | O-2 | O-3 | O-4 | | Pin | 4 | 4 | 4 | 4 |
|
| Weight |
386 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
152 x 60 x 27 |
| Material |
PA; Socket: brass nickel-plated; O-ring: FKM |
| Display |
| Switching status | LED, yellow I1...I4, O1...O4 | | Power | LED, green AS-i, AUX | | errors | LED, red |
|
| Module connection |
M12 |
| Accessories (optional) |
| stainless steel sleeve, for installation in case of high mechanical stress , E70402 |
|
| Remarks |
| Do not connect any of the following points to an external potential: | | I-, I+, I1, I2, I3, I4 | | The connections are electrically connected with the AS-i cable. |
|
| Pack quantity |
1 pcs. |
|
Connector: M12; coding: A |
|
Connector: M12; coding: A |
|
Connector: M12; coding: A |
