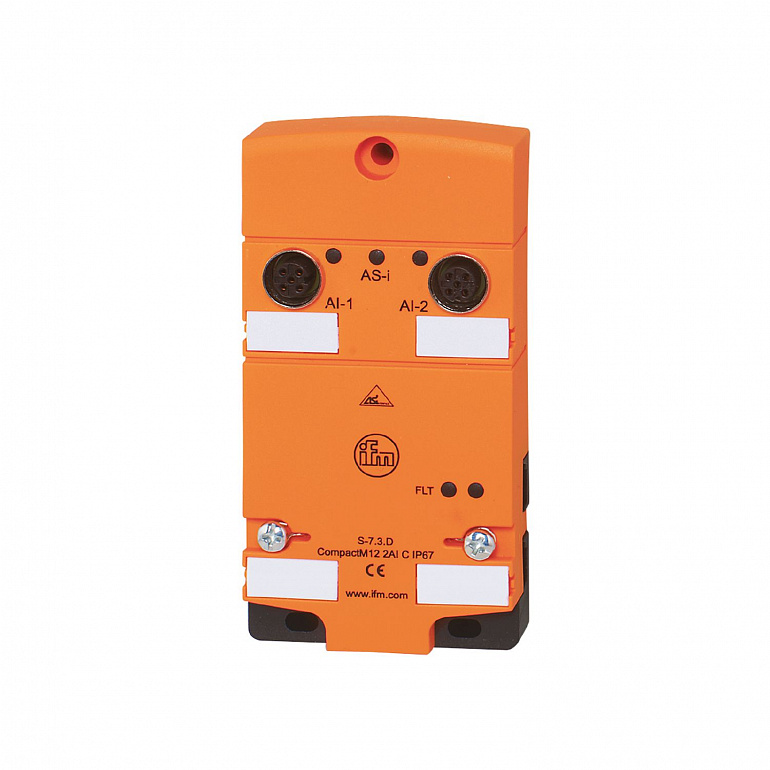

| Application |
|
| Application |
field installation |
| Electrical data |
|
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
250 |
| Reverse polarity protection |
yes |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of analog inputs: 2 |
| Inputs |
|
| Max. total current rating of inputs |
200 |
| Number of analog inputs |
2; (Anschluss von 2- und 3-Draht-Sensoren) |
| Analog input (current) |
4...20 |
| Operating conditions |
|
| Ambient temperature |
-25...80 |
| Storage temperature |
-25...80 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 67; (when flat cables are used E7400x / E7401x) |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 61000-6-2</td><td></td></tr><tr><td>EN 62026-2</td><td></td></tr><tr><td>EN 50581</td><td></td></tr></table> |
| MTTF |
167 |
| UL approval |
<table><tr><td>voltage supply</td><td>Class 2 </td></tr></table> |
| AS-i classification |
|
| AS-i version |
2.11; 3.0 |
| AS-i addressing |
IR addressing possible |
| Extended addressing mode |
no |
| AS-i master profile |
M3; M4 |
| AS-i profile |
S-7.3.D |
| AS-i I/O configuration |
7 |
| AS-i ID code |
3.D |
| AS-i certificate |
99101 |
| Mechanical data |
|
| Weight |
275.5 |
| Housing |
rectangular |
| Type of mounting |
AS-i flat cable connection; Backplane mounting |
| Dimensions |
118.2 x 60 x 27 |
| Material |
PA; Socket: stainless steel (1.4404 / 316L); threaded inserts in the lower part: stainless steel (1.4404 / 316L); screws in the lower part: stainless steel (1.4578 / 316Cu); Piercing contacts: CuSn6 nickel-plated and tin-plated |
| Displays / operating elements |
|
| Display |
<table><tr><td>Power</td><td>LED, green Voltage AS-i</td></tr><tr><td>errors</td><td>LED, red</td></tr><tr><td>Function</td><td>LED, yellow Channels AI1, AI2</td></tr></table> |
| Electrical connection |
|
| Accessories |
|
| Accessories (optional) |
<table><tr><td>Protective cap: M12, E73004</td></tr><tr><td>stainless steel sleeve, for installation in case of high mechanical stress , E70402</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td> When the actuators are supplied from AS-i the load must not exceed a maximum of 200 mA.</td></tr><tr><td> There is an electrical connection between the sensor and AS-i.</td></tr><tr><td> The module is exclusively supplied via the yellow AS |
| Pack quantity |
1 pcs. |
