| Design |

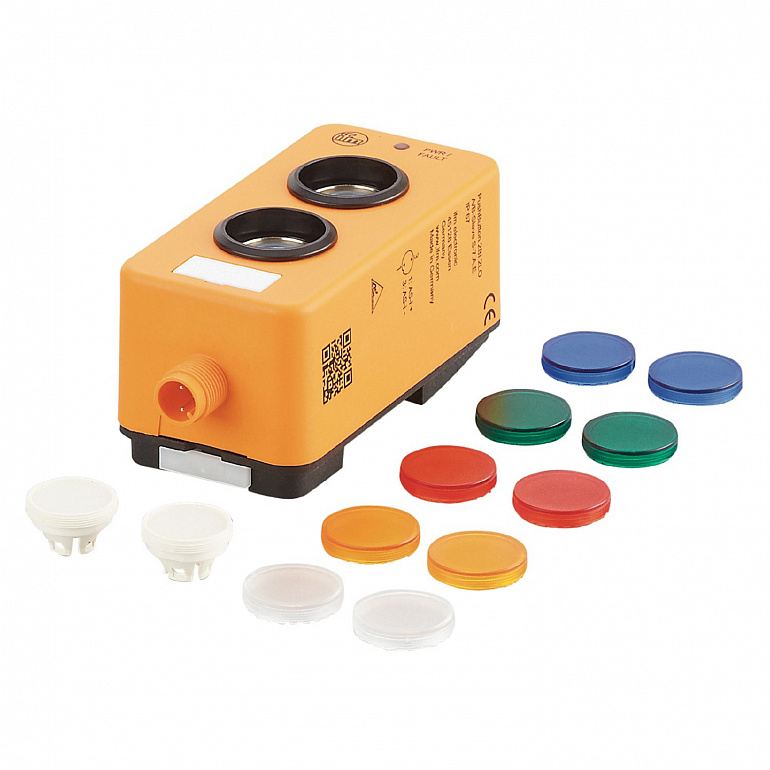

housing for DIN rail mounting, Color inserts changeable |
| Application |
field installation |
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
55 |
| Sensor supply of the inputs |
AS-i |
| Ambient temperature |
-25...60 |
| Storage temperature |
-40...85 |
| Protection |
IP 67 |
| EMC |
|
| AS-i version |
2.11; 3.0 |
| Extended addressing mode |
yes |
| AS-i master profile |
M2; M3; M4 |
| AS-i profile |
S-B.A.E |
| AS-i I/O configuration |
B |
| AS-i ID code |
A.E |
| AS-i certificate |
134701 |
| Data bits |
| Data bit | D0 | D1 | D2 | D3 | | LED | 1 | 2 | - | - | | pushbuttons | - | - | 1 | 2 |
|
| Weight |
137.6 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
100 x 46 x 45 |
| Material |
PA |
| Display |
| Power | LED, green | | errors | LED, red |
|
| Operating elements |
| 2 | freely programmable backlit function keys |
|
| Module connection |
M12 |
| Items supplied |
| cover support: 2 | | color inserts: 2, red | | 2, green | | 2, yellow | | 2, blue | | 2, white | | Mounting adapter: 1 |
|
| Remarks |
| The pushbuttons (EAO type 84) provide protection against accidental contact. | | Housing and pushbuttons can be labeled. |
|
| Pack quantity |
1 pcs. |
