| Application |
|
| Design |

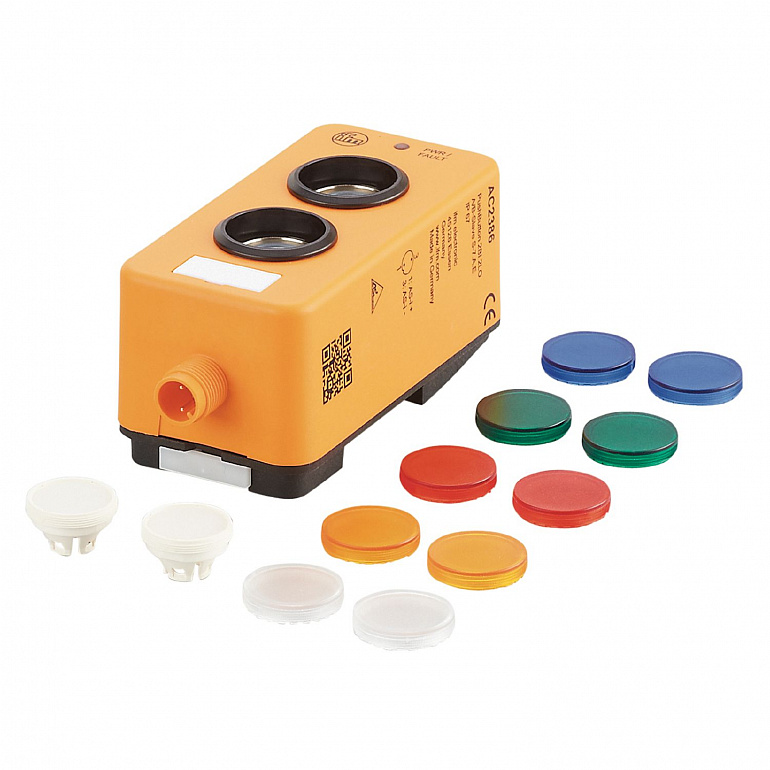

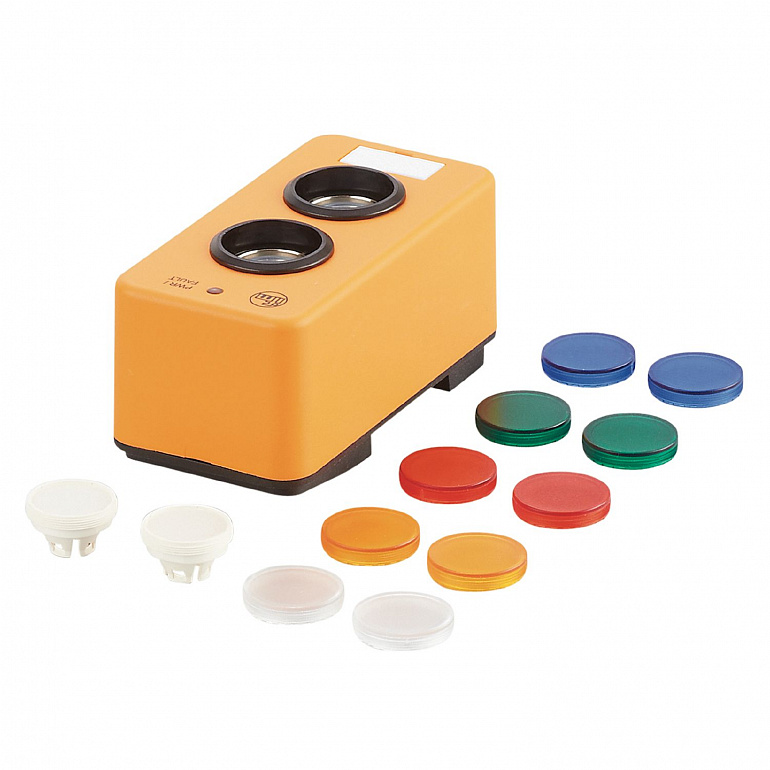

housing for DIN rail mounting, Color inserts changeable |
| Application |
field installation |
| Electrical data |
|
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
55 |
| Inputs |
|
| Sensor supply of the inputs |
AS-i |
| Operating conditions |
|
| Ambient temperature |
-25...60 |
| Storage temperature |
-40...85 |
| Protection |
IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 61000-6-2</td><td></td></tr><tr><td>EN 62026-2</td><td></td></tr></table> |
| AS-i classification |
|
| AS-i version |
2.11; 3.0 |
| Extended addressing mode |
yes |
| AS-i master profile |
M2; M3; M4 |
| AS-i profile |
S-7.A.E |
| AS-i I/O configuration |
7 |
| AS-i ID code |
A.E |
| AS-i certificate |
133801 |
| Data bits |
<table><tr><td>Data bit</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td></tr><tr><td>LED 1</td><td>DO-0</td><td>-</td><td>-</td><td>-</td></tr><tr><td>LED 2</td><td>-</td><td>DO-1</td><td>-</td><td>-</td></tr><tr><td>pushbuttons 1</td><td>DI-0</td><td>-</ |
| Mechanical data |
|
| Weight |
140 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
100 x 46 x 45 |
| Material |
PA |
| Displays / operating elements |
|
| Display |
<table><tr><td>Power</td><td>LED, green</td></tr><tr><td>errors</td><td>LED, red</td></tr></table> |
| Operating elements |
<table><tr><td>2</td><td>freely programmable backlit function keys</td></tr></table> |
| Electrical connection |
|
| Module connection |
M12 |
| Accessories |
|
| Items supplied |

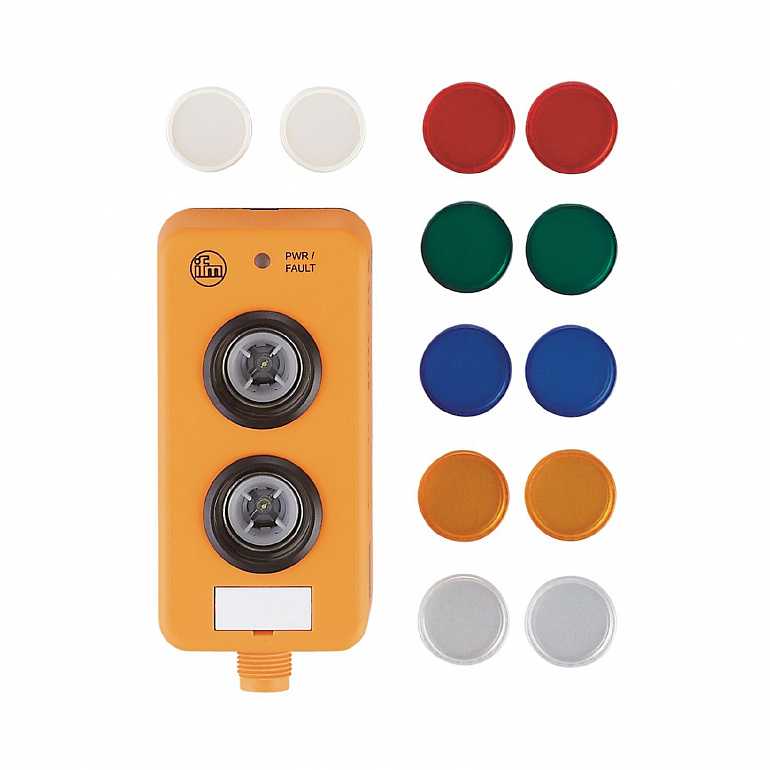

<table><tr><td>cover support: 2</td></tr><tr><td>color inserts: 2, red</td></tr><tr><td>2, green</td></tr><tr><td>2, yellow</td></tr><tr><td>2, blue</td></tr><tr><td>2, white</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
