| Application |
|
| Design |

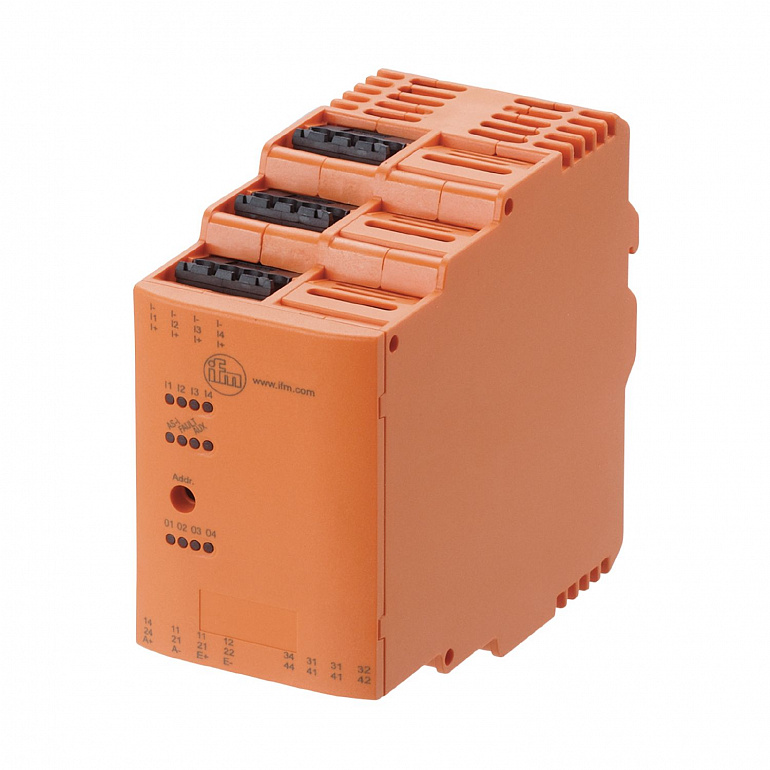

housing for DIN rail mounting |
| Application |
I/O modules for control cabinet installations |
| Electrical data |
|
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
30 |
| Additional voltage supply |
20...30 DC; (AUX) |
| Max. current consumption from additional supply |
1100; (AUX) |
| Integrated watchdog |
yes |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital inputs: 4; Number of relay outputs: 4 |
| Inputs |
|
| Number of digital inputs |
4 |
| Input circuit of digital inputs |
PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs |
AUX |
| Voltage supply |
20...30; (DC) |
| Max. total current rating of inputs |
1000 |
| Input current High |
6...10 |
| Input current low |
0...2 |
| Switching level high |
> 11 |
| Digital inputs protected against short circuits |
yes |
| Outputs |
|
| Voltage range DC |
24 |
| Voltage range AC |
10...240 |
| Max. current load per output |
6000; (resistive load) |
| Number of relay outputs |
4 |
| Short-circuit proof |
no |
| Electrically separated |
yes |
| Operating conditions |
|
| Ambient temperature |
-25...60 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 20 |
| Degree of soiling |
2 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 61000-6-2</td><td></td></tr><tr><td>EN 62026-2</td><td></td></tr><tr><td>EN 50581</td><td></td></tr></table> |
| MTTF |
297 |
| Notes |
The device shall be supplied from an isolating source.; This voltage source must have a secondary UL-listed fuse (see enclosed sheet).; Alternatively, a class 2 power supply can be used to supply AUX. |
| AS-i classification |
|
| AS-i version |
2.11; 3.0 |
| AS-i addressing |
Addressing socket |
| Extended addressing mode |
no |
| AS-i master profile |
M2; M3; M4 |
| AS-i profile |
S-7.0.E |
| AS-i I/O configuration |
7 |
| AS-i ID code |
0.E |
| AS-i certificate pending |
yes |
| Data bits |
<table><tr><td>Data bit</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td></tr><tr><td>Input</td><td>I-1</td><td>I-2</td><td>I-3</td><td>I-4</td></tr><tr><td>Output</td><td>O-1</td><td>O-2</td><td>O-3</td><td>O-4</td></tr></table> |
| Mechanical data |
|
| Weight |
246 |
| Housing |
rectangular |
| Type of mounting |

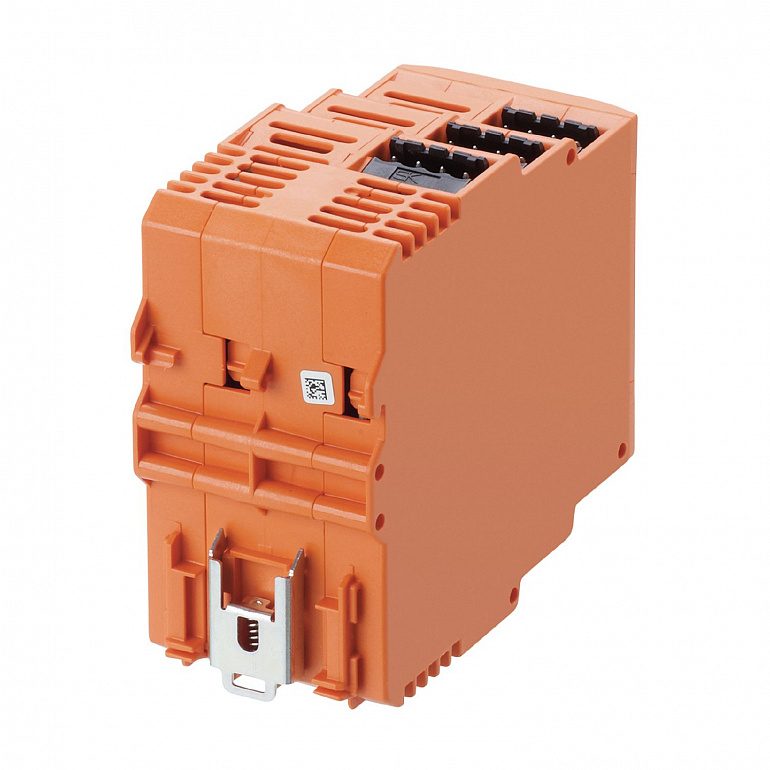

Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
93 x 50 x 108 |
| Material |
PC-GF20 |
| Displays / operating elements |
|
| Display |

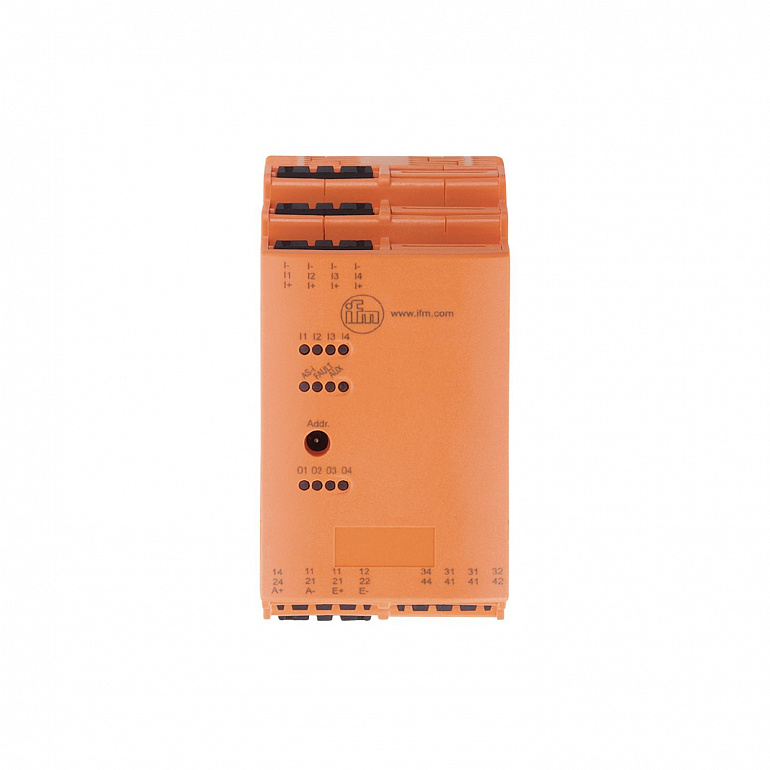

<table><tr><td>Switching status</td><td>LED, yellow I1...I4, O1....O4</td></tr><tr><td>Power</td><td>LED, green AS-i, AUX</td></tr><tr><td>errors</td><td>LED, red</td></tr></table> |
| Accessories |
|
| Accessories (optional) |
<table><tr><td>connector</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
pin header: |
