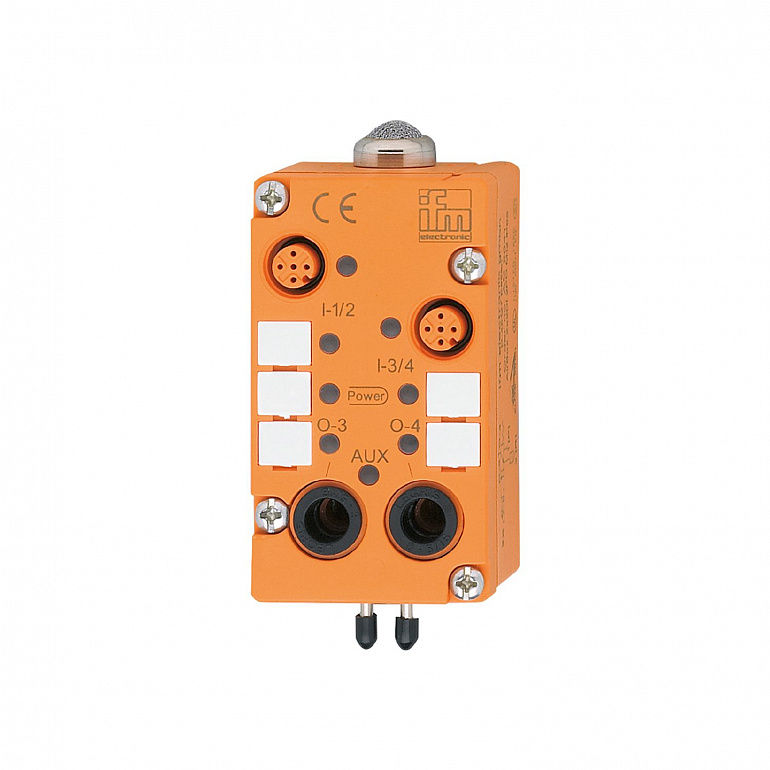

| Application |
|
| Application |
field installation |
| Electrical data |
|
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
170 |
| Additional voltage supply |
18...30 DC; (to PELV) |
| Integrated watchdog |
yes |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital inputs: 4; Number of pneumatic outputs: 2 |
| Inputs |
|
| Number of digital inputs |
4; (2 x 2) |
| Input circuit of digital inputs |
PNP |
| Sensor supply of the inputs |
AS-i |
| Voltage supply |
20...30 |
| Max. total current rating of inputs |
100 |
| Input current High |
> 3 |
| Input current low |
< 1.5 |
| Switching level high |
> 10 |
| Digital inputs protected against short circuits |
yes |
| Outputs |
|
| Number of pneumatic outputs |
2 |
| Actuator supply outputs |
AUX |
| Operating conditions |
|
| Ambient temperature |
0...55 |
| Note on ambient temperature |
<table><tr><td>with special compressed air treatment: < 0 °C</td></tr></table> |
| Protection |
IP 65 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 50295</td><td></td></tr></table> |
| AS-i classification |
|
| Extended addressing mode |
no |
| AS-i master profile |
M2; M3; M4 |
| AS-i profile |
S-7.F |
| AS-i I/O configuration |
7 |
| AS-i ID code |
F |
| Data bits |
<table><tr><td>Data bit</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td></tr><tr><td>Inputs / outputs</td><td>I-1/2</td><td>I-1/2</td><td>I-3/4 / O3</td><td>I-3/4 / O4</td></tr><tr><td>Pin</td><td>4</td><td>2</td><td>4</td><td>2</td></tr></table> |
| Mechanical data |
|
| Weight |
260 |
| Housing |
rectangular |
| Type of mounting |
screw mounting |
| Dimensions |
97 x 45 x 46 |
| Material |
PBT |
| Pneumatic system |
2 x 3/2-way seat valves |
| Operating pressure range |
<table><tr><td>2...8 bar</td><td>0.2...0.8 MPa</td></tr></table> |
| Note on working pressure range |
<table><tr><td>incl. possible pressure peaks </td></tr></table> |
| Air flow at 6/5 bar |
350 |
| Air flow at 6/0 bar |
550 |
| Permissible compressed air |
filtered (5 µm); lubricated (ISO-VG10) or not lubricated |
| Tube fittings |
Legris LF 3000/8 |
| Exhaust |
integrated exhaust |
| Displays / operating elements |
|
| Display |
<table><tr><td>Power</td><td>LED, green</td></tr><tr><td>Function</td><td>LED, yellow</td></tr></table> |
| Electrical connection |
|
| Remarks |
|
| Remarks |
<table><tr><td> Please see the notes on compressed air and EMC/ESD under "Downloads"</td></tr></table> |
| Pack quantity |
1 pcs. |
