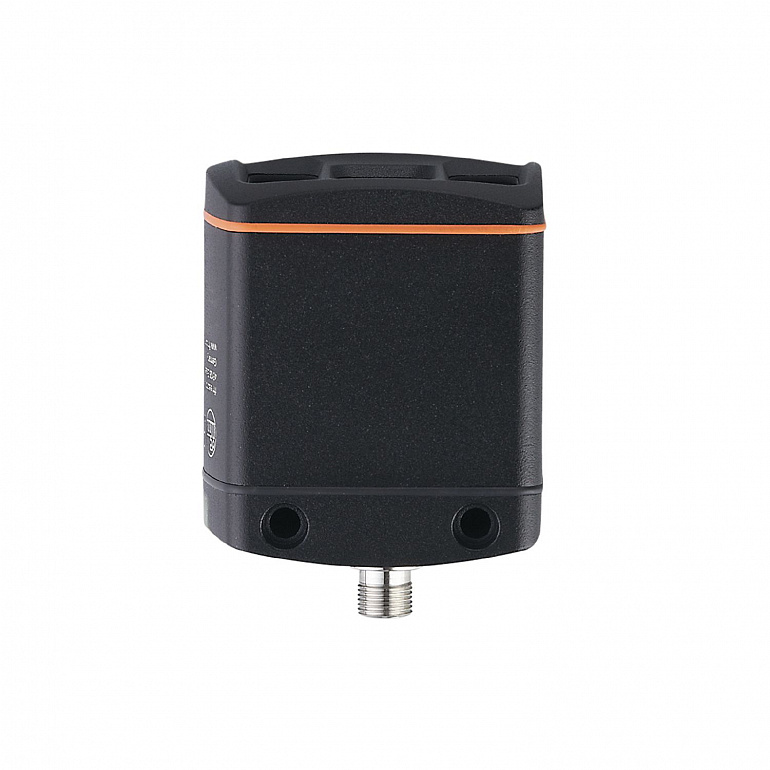

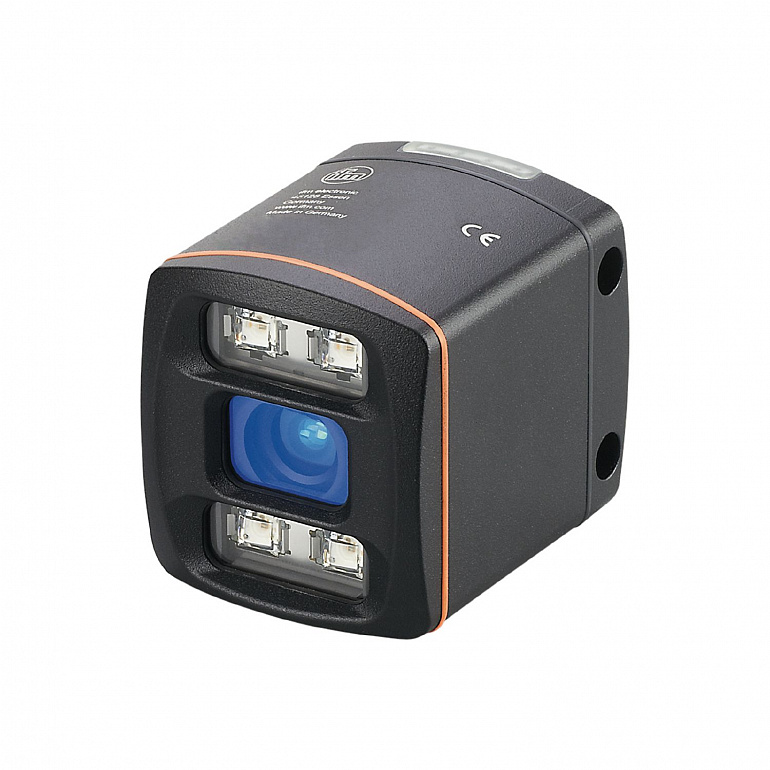

| Type of light |
Infrared light |
| Image resolution 3D |
176 x 132 |
| Angle of aperture 3D |
60 x 45; (nominal value without lens distortion correction) |
| Image repetition frequency 3D |
10 |
| Housing |
rectangular |
| Application |
obstacle detection |
| Operating voltage |
20.4...28.8 DC; (EN 61131-2) |
| Current consumption |
420; (maximum mean value: < 1600 mA) |
| Max. current consumption |
2400; (peak current pulsed) |
| Power consumption |
10 |
| Protection class |
III |
| Type of light |
Infrared light |
| Image sensor |
PMD 3D ToF-Chip |
| Integrated lighting |
yes; (infrared: 850 nm invisible radiation LED) |
| Switch-on peak current |
2400 |
| Operating distance |
200...4000 |
| Image resolution 3D |
176 x 132 |
| Angle of aperture 3D |
60 x 45; (nominal value without lens distortion correction) |
| Image repetition frequency 3D |
10 |
| Communication interface |
Ethernet |
| Number of Ethernet interfaces |
1 |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10; 100 |
| Protocol |
TCP/IP |
| Factory settings |
| IP address: 192.168.0.69 | | subnet mask: 255.255.255.0 | | gateway IP address: 192.168.0.201 |
|
| Ambient temperature |
-10...50 |
| Storage temperature |
-40...85 |
| Protection |
IP 65; IP 67 |
| Max. immunity to extraneous light |
8 |
| EMC |
| DIN EN 61000-6-4 | radiation of interference / industrial environments | | DIN EN 61000-6-2 | noise immunity / industrial environments |
|
| Shock resistance |
| DIN EN 60068-2-27 | 50 g / (11 ms) not repetitive | | DIN EN 60068-2-27 | 40 g / (6 ms) repetitive |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 2 g / (10...150 Hz) | | DIN EN 60068-2-64 | 2.3 g RMS / (10...500 Hz) |
|
| Photobiological safety |
exempt group; (DIN EN 62471) |
| Electrical safety |
| DIN EN 61010-2-201 | electrical supply only via PELV circuits |
|
| Weight |
770 |
| Housing |
rectangular |
| Dimensions |
72 x 65 x 82.6 |
| Material |
housing: diecast aluminium; front lens: gorilla glass; Function display: PA |
| Display |
| Function | 2 x LED, green Ethernet Power |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |
|

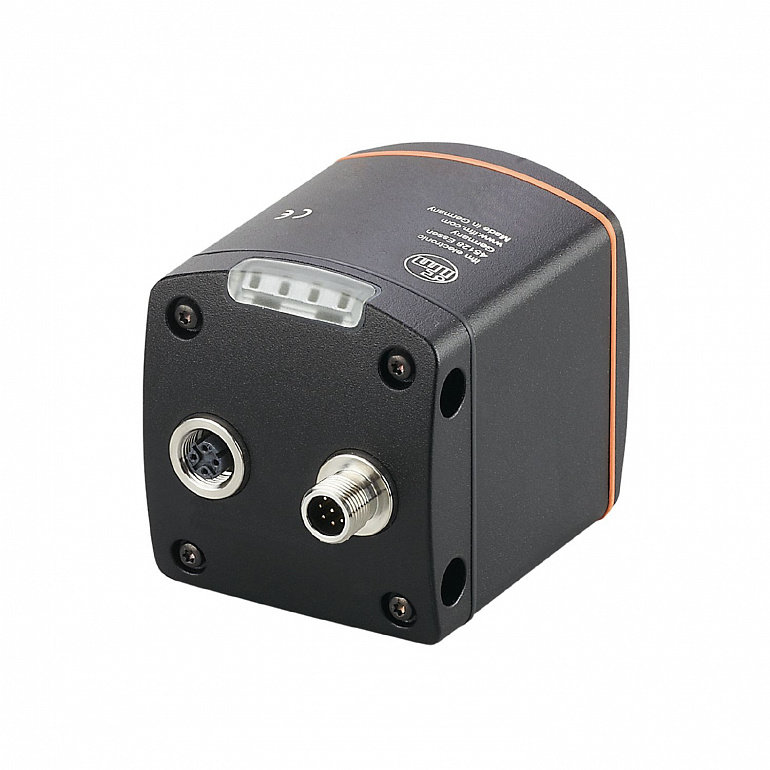

Connector: 1 x M12; coding: D |
|
Connector: 1 x M12; coding: A |
