| Type of light |
Infrared light |
| Image resolution 3D |
352 x 264 |
| Angle of aperture 3D |
40 x 30; (nominal value without lens distortion correction) |
| Image repetition frequency 3D |
25 |
| Housing |
rectangular |
| Application |
Camera for the output of 3D image data |
| Operating voltage |
20.4...28.8 DC; (EN 61131-2) |
| Current consumption |
420; (maximum mean value: < 1600 mA) |
| Max. current consumption |
2400; (peak current pulsed) |
| Power consumption |
10; (typical value) |
| Protection class |
III |
| Overvoltage category |
II |
| Type of light |
Infrared light |
| Image sensor |
PMD 3D ToF-Chip |
| Integrated lighting |
infrared: 850 nm invisible radiation LED |
| Number of inputs and outputs |
Number of digital inputs: 1; Number of digital outputs: 2 |
| Trigger |
external; 24 V PNP/NPN (IEC 61131-2 Typ 3) |
| Number of digital inputs |
1 |
| Number of digital outputs |
2; (configurable) |
| Output function |
24 V PNP/NPN; (EN 61131-2) |
| Max. voltage drop switching output DC |
1 |
| Max. current load per output |
100 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Operating distance |
300...8000 |
| Note on operating distance |
| object size: 200 x 200 mm | | reflectivity: 18 % |
|
| Image resolution 3D |
352 x 264 |
| Angle of aperture 3D |
40 x 30; (nominal value without lens distortion correction) |
| Image repetition frequency 3D |
25 |
| Parameter setting options |
via PC with ifm Vision Assistant or XML-RPC; software API for C, C++ and Halcon |
| Communication interface |
Ethernet |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10; 100 |
| Protocol |
TCP/IP |
| Factory settings |
| IP address: 192.168.0.69 | | subnet mask: 255.255.255.0 | | gateway IP address: 192.168.0.201 |
|
| Usage type |
Parameter setting; Data transmission |
| Ambient temperature |
-10...50 |
| Storage temperature |
-40...85 |
| Protection |
IP 65; IP 67; IP 69K |
| Max. immunity to extraneous light |
8; (with reduced measuring accuracy and repeatability: < 100) |
| EMC |
| DIN EN 61000-6-4 | radiation of interference / industrial environments | | DIN EN 61000-6-2 | noise immunity / industrial environments |
|
| Shock resistance |
| DIN EN 60068-2-27 | 50 g / (11 ms) not repetitive | | DIN EN 60068-2-27 | 40 g / (6 ms) repetitive |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 2 g / (10...150 Hz) | | DIN EN 60068-2-64 | 2.3 g RMS / (10...500 Hz) |
|
| Photobiological safety |
exempt group; (DIN EN 62471) |
| Electrical safety |
| DIN EN 61010-2-201 | electrical supply only via PELV circuits |
|
| MTTF |
45.02 |
| Weight |
1139.2 |

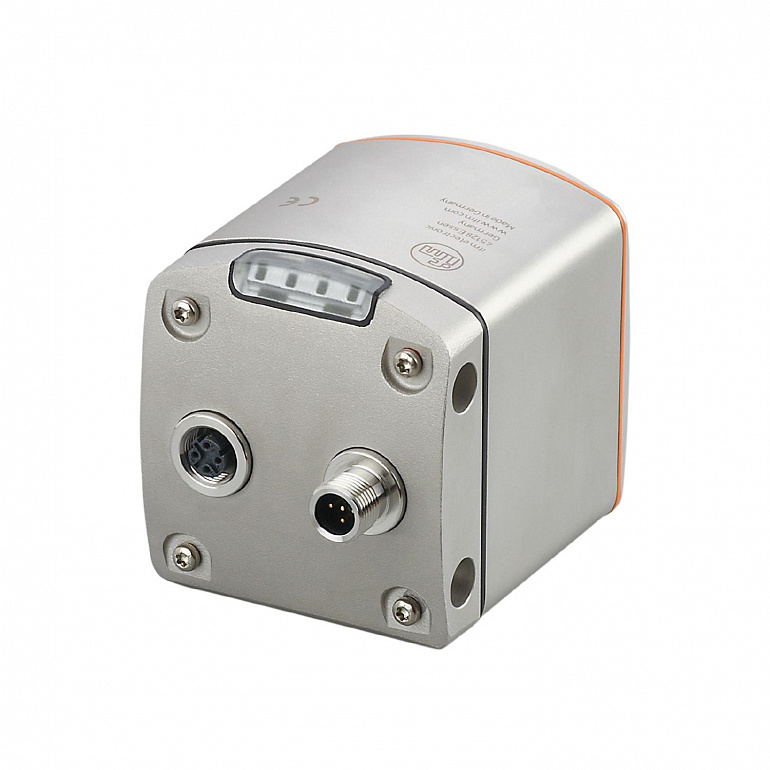

| Housing |
rectangular |
| Dimensions |
72 x 67 x 90 |
| Material |
housing: stainless steel (1.4404 / 316L); front lens: PMMA; Function display: PA |
| Tightening torque |
< 0.8 |
| Display |
| Function | 2 x LED, green Ethernet Power | | Switching status | 2 x LED, yellow OUT 1 OUT 2 |
|
| Items supplied |
|
| Remarks |
| Repeatability and accuracy depend on the image settings and the environmental conditions. | | The data sheet values apply to typical settings and conditions. |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: D |
|
Connector: 1 x M12; coding: A |
