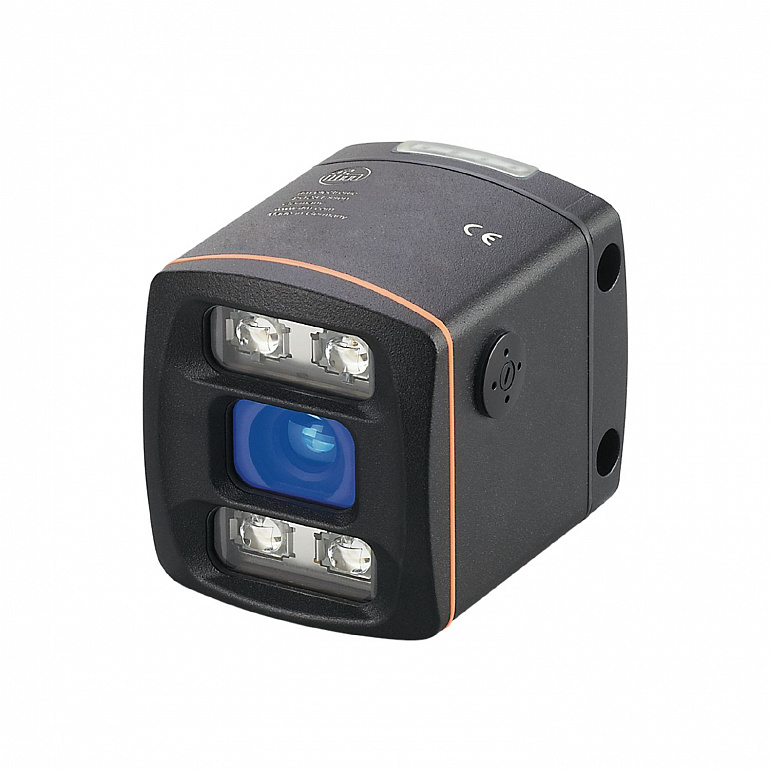

| Product characteristics |
|
| Image resolution 3D |
176 x 132 |
| Angle of aperture 3D |
40 x 30; (nominal value without lens distortion correction) |
| Max. reading rate |
25 |
| Housing |
rectangular |
| Application |
|
| Application |
Dimensioning of the object; Completeness monitoring; Level monitoring; distance monitoring; volume monitoring |
| Electrical data |
|
| Operating voltage |
20.4...28.8 DC; (EN 61131-2) |
| Current consumption |
< 2400; (peak current pulsed; typical value: 420; maximum value: 1600) |
| Power consumption |
10; (typical value) |
| Protection class |
III |
| Overvoltage category |
II |
| Image sensor |
PMD 3D ToF-Chip |
| Integrated lighting |
yes; (infrared: 850 nm invisible radiation LED) |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital inputs: 2; Number of digital outputs: 3; Number of analog outputs: 1 |
| Inputs |
|
| Trigger |
24 V PNP/NPN (IEC 61131-2 Typ 3) |
| Number of digital inputs |
2 |
| Input circuit of digital inputs |
24 V PNP/NPN; (configurable; IEC 61131-2 Typ 3) |
| Outputs |
|
| Total number of outputs |
3 |
| Number of digital outputs |
3; (configurable) |
| Output function |
24 V PNP/NPN; (EN 61131-2) |
| Max. voltage drop switching output DC |
1 |
| Max. current load per output |
100 |
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Max. load |
500 |
| Analog voltage output |
0...10 |
| Min. load resistance |
10000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Monitoring range |
|
| Operating distance |
300...10000 |
| Note on operating distance |
<table><tr><td>object size: 200 x 200 mm</td></tr><tr><td>reflectivity: 18 %</td></tr></table> |
| Image resolution 3D |
176 x 132 |
| Angle of aperture 3D |
40 x 30; (nominal value without lens distortion correction) |
| Max. reading rate |
25 |
| Measuring/setting range |
|
| Measuring range |
< 30 |
| Software / programming |
|
| Parameter setting options |
via PC with ifm Vision Assistant |
| Interfaces |
|
| Communication interface |
Ethernet |
| Ethernet |
|
| Number of Ethernet interfaces |
1 |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10; 100 |
| Protocol |
TCP/IP; PROFINET IO; EtherNet/IP |
| Factory settings |
<table><tr><td>IP address: 192.168.0.69</td></tr><tr><td>subnet mask: 255.255.255.0</td></tr><tr><td>gateway IP address: 192.168.0.201</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-10...50 |
| Storage temperature |
-40...85 |
| Protection |
IP 65; IP 67 |
| Max. immunity to extraneous light |
8; (with reduced measuring accuracy and repeatability: < 100) |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61000-6-4</td><td>radiation of interference / industrial environments</td></tr><tr><td>DIN EN 61000-6-2</td><td>noise immunity / industrial environments</td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g / (11 ms) not repetitive</td></tr><tr><td>DIN EN 60068-2-27</td><td>40 g / (6 ms) repetitive</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>2 g / (10...150 Hz)</td></tr><tr><td>DIN EN 60068-2-64</td><td>2.3 g RMS / (10...500 Hz)</td></tr></table> |
| Photobiological safety |
exempt group; (DIN EN 62471) |
| Electrical safety |
<table><tr><td>DIN EN 61010-2-201</td><td>electrical supply only via PELV circuits</td></tr></table> |
| MTTF |
43.08 |

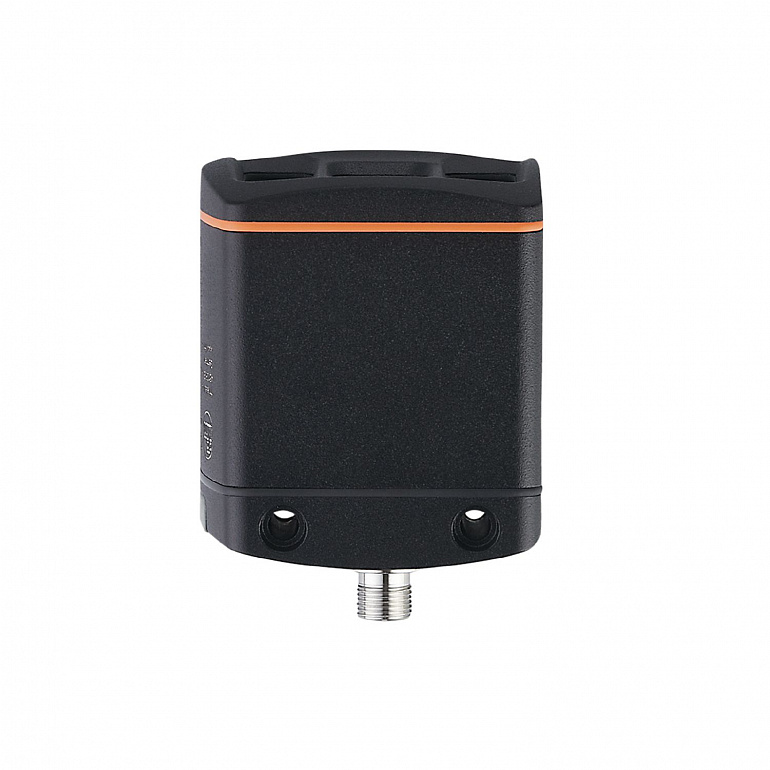

| Mechanical data |
|
| Weight |
803.5 |
| Housing |
rectangular |
| Dimensions |
72 x 67.1 x 82.6 |
| Material |
housing: diecast aluminium; front lens: gorilla glass; Function display: PA |
| Displays / operating elements |
|
| Display |
<table><tr><td>Function</td><td>2 x LED, green Ethernet Power</td></tr><tr><td>Switching status</td><td>2 x LED, yellow OUT 1 OUT 2</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>Protective covers</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |

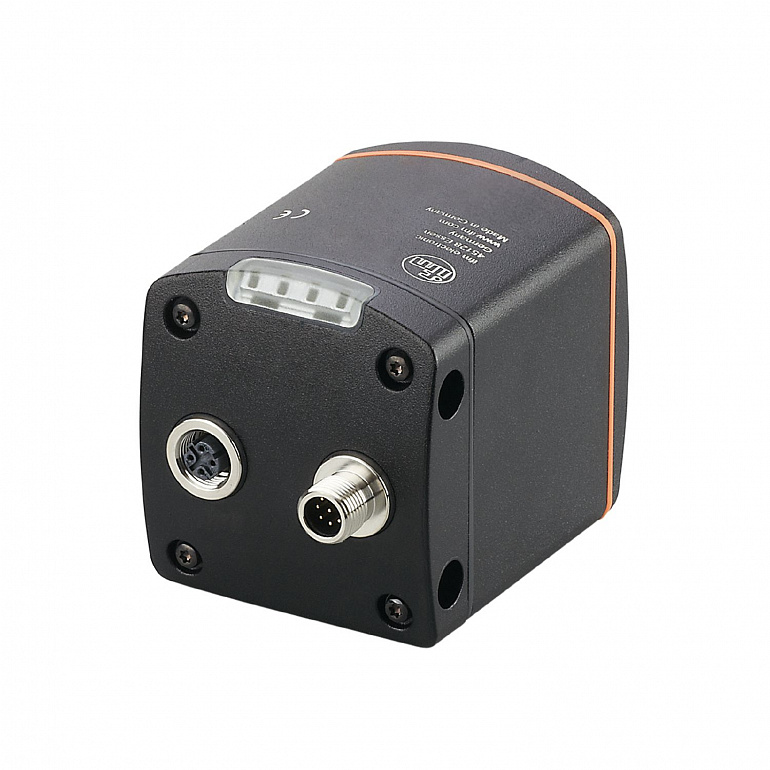

| Electrical connection - Ethernet |
|
| Electrical connection - Process connection |
|
