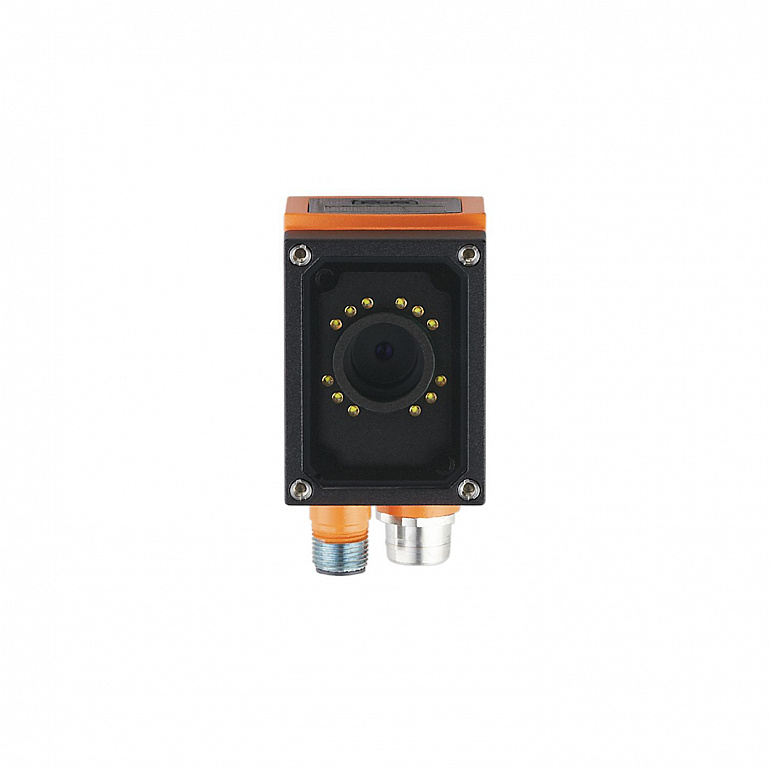

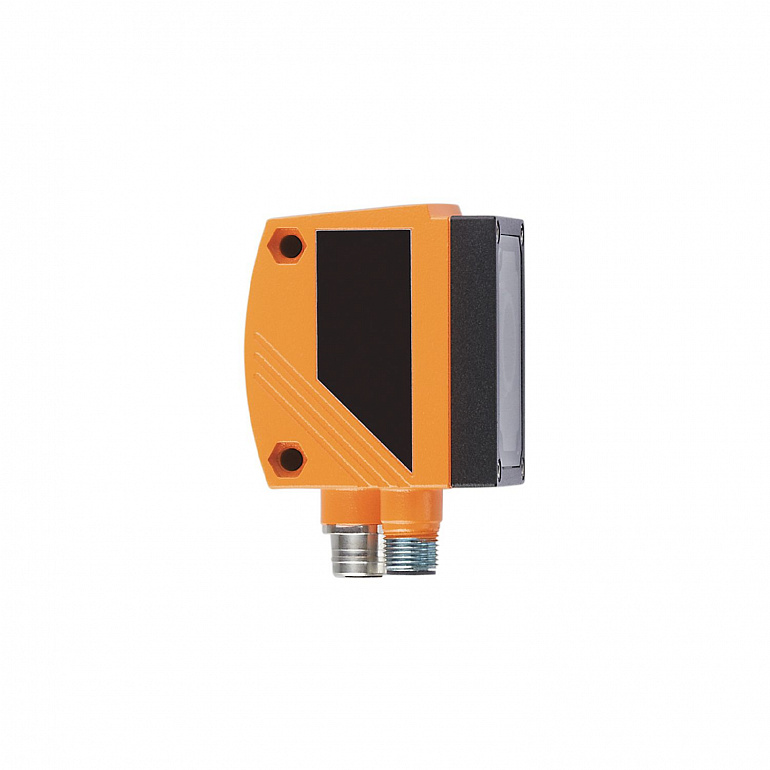

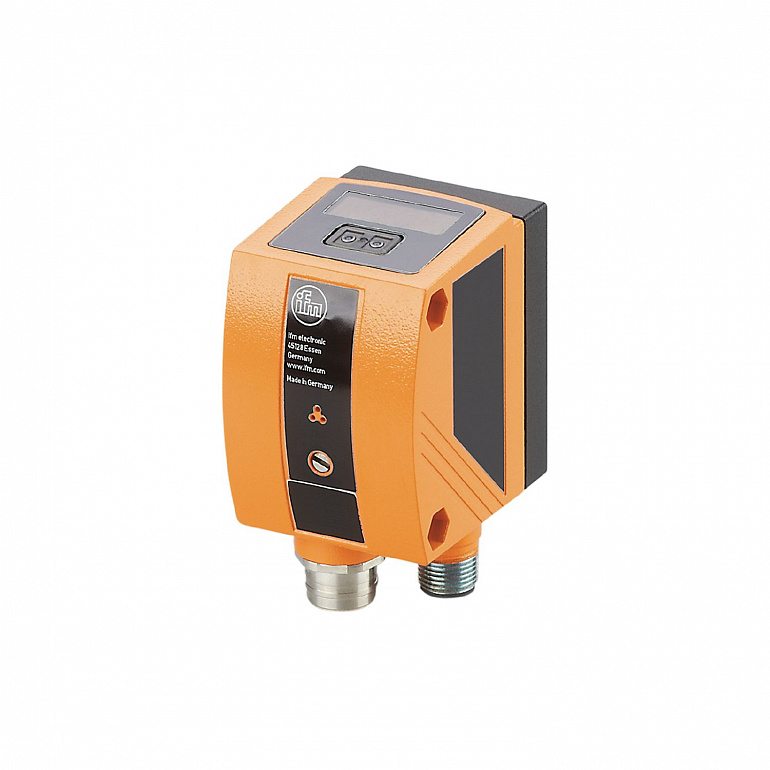

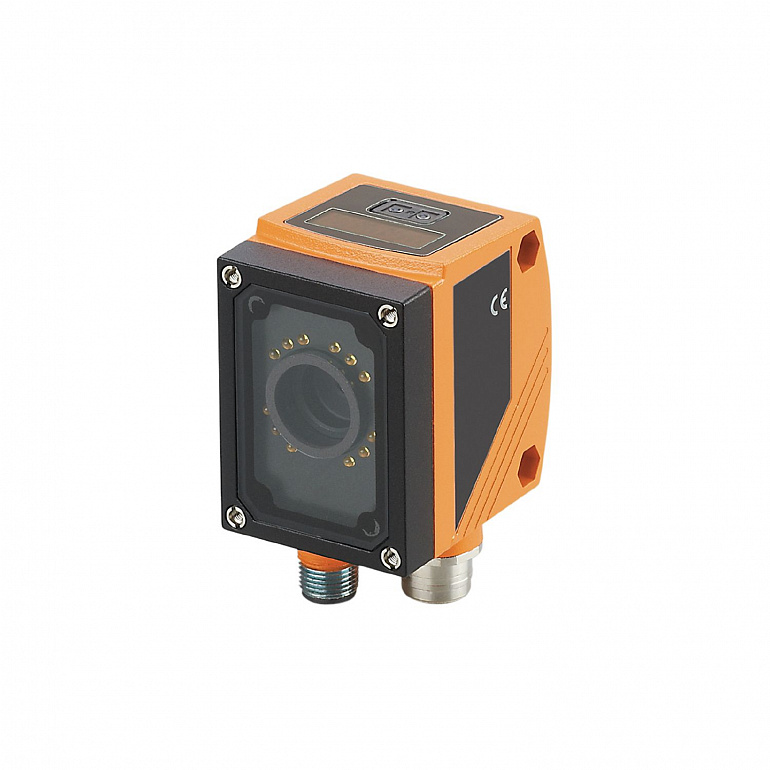

| Type of light |
White light |
| Image resolution |
640 x 480 |
| Max. reading rate |
20 |
| Operating voltage tolerance |
10 |
| Operating voltage |
24 DC |
| Current consumption |
300 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
White light |
| Image sensor |
CMOS image sensor black/white |
| Number of inputs and outputs |
Number of digital inputs: 2; Number of digital outputs: 5 |
| Trigger |
24 V PNP (IEC 61131-2 Typ 1); internal |
| Number of digital inputs |
2 |
| Input circuit of digital inputs |
24 V PNP; (configurable; IEC 61131-2 Typ 1) |
| Total number of outputs |
5 |
| Number of digital outputs |
5; (configurable) |
| Output function |
24 V PNP |
| Max. voltage drop switching output DC |
2 |
| Max. current load per output |
100 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Field of view size |
| Operating distance | Field of view | Smallest detectable object | Resolution | | 50 | 33 x 24 | 0,3 | 0,075 | | 75 | 50 x 36 | 0,4 | 0,1 | | 100 | 66 x 47 | 0,5 | 0,125 | | 200 | 132 x 94 | 0,9 | 0,225 | | 400 | 264 x 189 | 1,7 | 0,425 | | 1000 | 660 x 472 | 4,0 | 1,0 | | 2000 | 1320 x 945 | 8,0 | 2,0 |
|
| Image resolution |
640 x 480 |
| Max. reading rate |
20 |
| Parameter setting options |
via 2 pushbuttons and 10-segment display or via PC / notebook with operating software |
| Communication interface |
Ethernet |
| Number of Ethernet interfaces |
1 |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10; 100 |
| Protocol |
TCP/IP; EtherNet/IP |
| Factory settings |
| IP address: 192.168.0.59 | | subnet mask: 255.255.255.0 | | gateway IP address: 192.168.0.201 | | MAC address: see type label |
|
| Ambient temperature |
-10...60 |
| Storage temperature |
-40...85 |
| Protection |
IP 67 |
| EMC |
| radiation of interference | EN 61326 | | noise immunity | EN 61326 |
|
| Shock resistance |
| EN 60947-5-2, 7.4.1 | | | IEC 60068-2-27 | |
|
| Vibration resistance |
| EN 60947-5-2, 7.4.2 | | | IEC 60028-2-6 | |
|
| Weight |
434.5 |
| Dimensions |
60 x 42 x 53.5 |
| Material |
housing: diecast zinc powder-coated; front lens: glass; LED window: PC |
| Display |
| Function | 3 x LED, green | | Switching status | 4 x LED, yellow | | 10-segment display, 4-digit |
|
| Accessories (optional) |
| Operating software | | Mounting accessories |
|
| Remarks |
| cULus - Class 2 source required |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: D |
|
Connector: 1 x M12; coding: A |
